High Precision Screw Fastening Machine for Electronics Manufacturing

Brand Name:	HSTECH
Model Number:	HS-SL551S
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Desktop Screw Tightening Robot

Feeding:

Pick-up Screw

Axis:

3 Axis

Screws:

M1-M6

Moving Range:

500*500*100mm

Material:

Main Aluminum

Port:

Shenzhen

Oem:

Yes

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Highlight:

High Precision Screw Fastening Machine

Electronics Manufacturing Screw Fastening Machine

Product Description

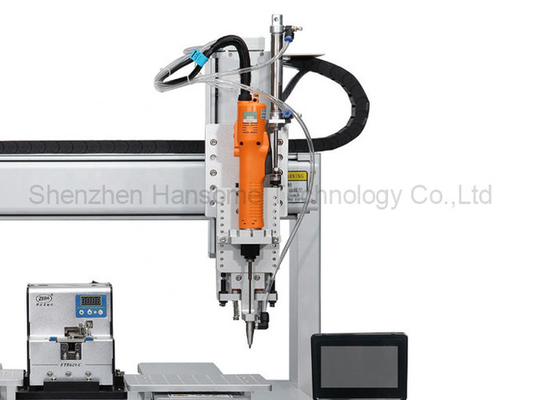

Desktop Screw Tightening Robot single slide screw locking machine

Introduction

The screw machine primarily consists of two essential systems: the feeding system and the locking system. The feeding component, also frequently referred to as the screw feeder, employs a straightforward design that organizes screws in a single row to enhance operational efficiency. As an automation tool, it has gained widespread application in the electronics industry, particularly for managing screws ranging from M1 to M6 models.

Specification

Model	HS-SL551S	HS-SL661S
Production name	Automatic Screw Locking Machine
Moving range(X/Y/Z)	500500100mm	600600100mm
X/Y axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M5
Machine dimension	746785800mm	845885800mm
Machine weight	50kg	55kg

Main parts brand

1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell

Features

Here's a revised version of your text:

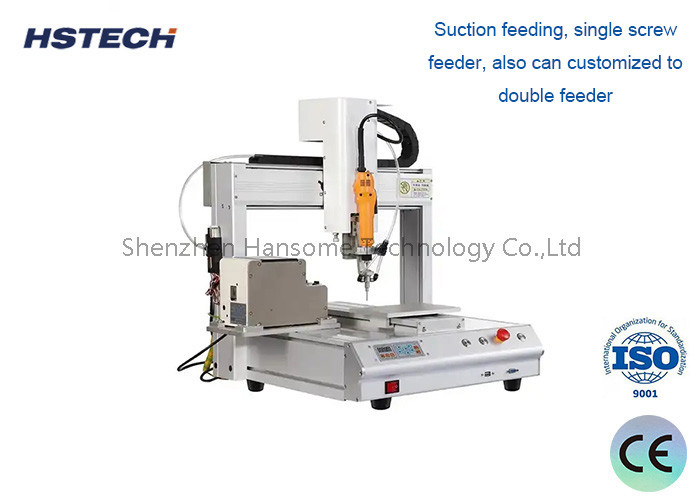

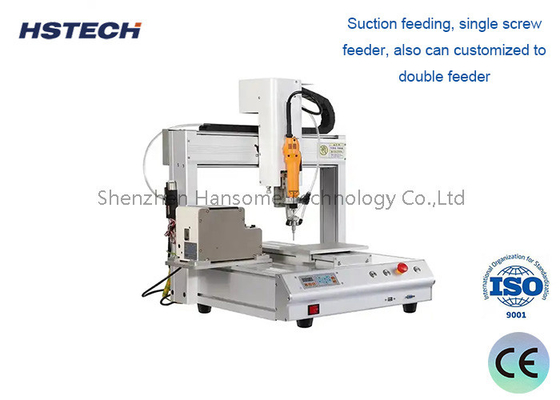

Enhanced Suction Feeding Efficiency: By utilizing advanced suction feeding technology, the feeding speed and overall work efficiency are significantly improved.
Versatile Operation Mode: The desktop and visible operation design allows for easy integration into automatic production lines, ensuring seamless connectivity.
Extensive Moving Range: With options of 500x500x100mm and 600x600x100mm, the machine can cater to a variety of working conditions.
Multi-screw Support: The machine supports multi-screw suction silos, enhancing material handling capacity and flexibility.
Multi-functional Expandability: It supports various expansion applications, including screw locking, dispensing, welding, testing, handling, and assembly, making it a versatile machine.
Multi-axis Dual-platform Options: Options for multi-axis and dual-platforms are available to meet diverse production scale and efficiency requirements.
Intelligent Editing Capabilities: The machine features intelligent editing functions such as regional array replication, platform replication, batch editing, and single-step operation, simplifying the operation process.
Offline Operation and Parameter Saving: After editing operation parameters, they can be downloaded to the controller via a serial port for offline operation. Parameters can also be stored in a handheld box for convenient use as needed.
High-capacity File Storage: The machine can store hundreds of processing files, with each file supporting up to 1000 screw points, making it easy to quickly access and manage.
