| Brand Name: | HSTECH |
| Model Number: | HS-F550 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |

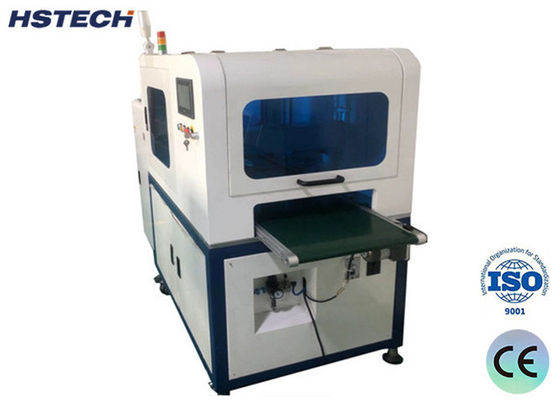

Linear and Circular Blade Fixture Equipped Inline Vcut PCB Depaneling Machine
Description

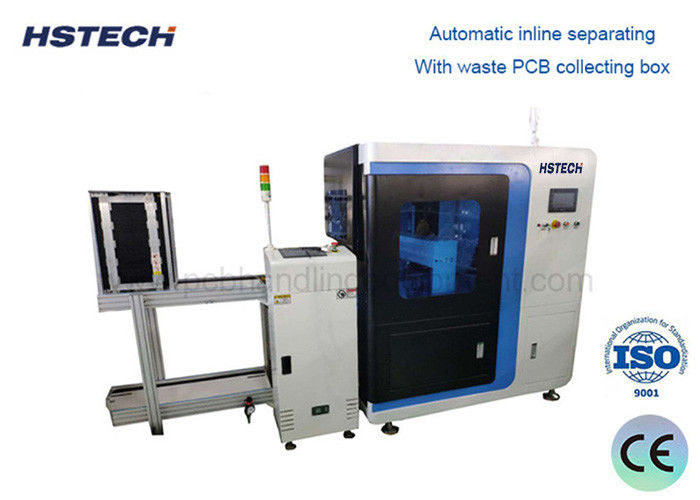

This PCB separating machine is a fully automatic inline V-cut model. It utilizes a PCB loader to facilitate automatic loading of the PCBs. The machine's belt system transports the PCBs for automatic separation along both the X and Y axes, utilizing a combination of linear and circular blades. The operator simply needs to place the boards into the magazines and await the separated PCB units at the machine's output. This is a highly automated PCB separating machine.
Features
Here's a rewritten version of your points:
Specification
| Model | HS-F550 |
| Efficiency cutting length | 0-500mm |
| Separating width | ≤ 300mm |
| Circular blade size | Φ125*30*3mm |
| Linear blade size | 420*45*6mm |
| Blade thickness | 0.3-0.6mm |
| Separating speed | Adjustable |
| Separating thickness | ≤2mm |
| Blade material | Overseas high quality steel blade |
| Production ability | 100,000pcs per day |
| Voltage | AC110V/220V |
| Air pressure | 0.5-0.8Mpa |
| Power | 1.1KW |
| Machine dimension | 1500*550*1550mm |
| Weight | 325KG |
