| Brand Name: | HSTECH |
| Model Number: | HS-208 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

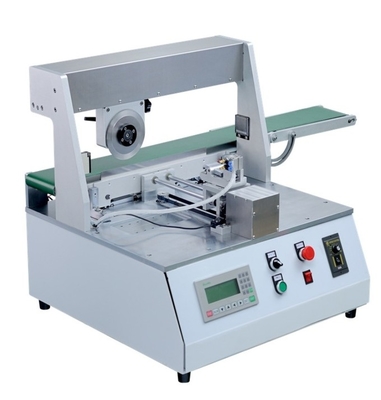

Automatic Blade Moving Mini PCB Depaneling Equipment With PLC Control System
Introduction:

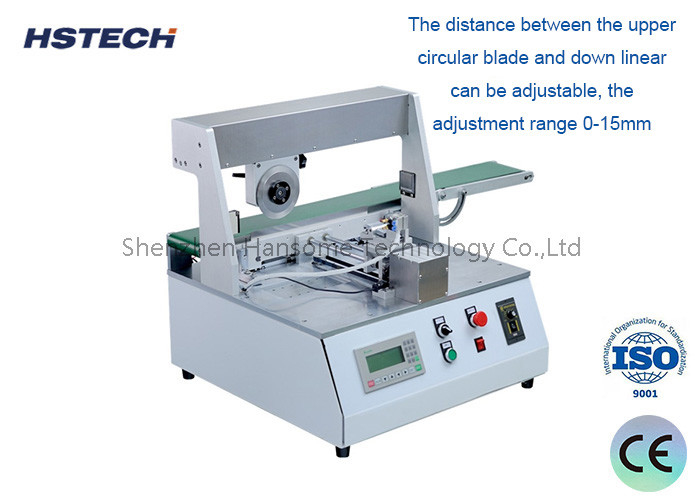

This automated PCB separation system features a seamless automatic feeding mechanism and a novel design that integrates an upper rotating circular blade with a stationary lower linear blade. During the depaneling process, the PCB is securely held in place while the circular blade spins, efficiently completing the separation task.
Advantages:
The traditional PCB separator, which necessitates manual operation, is both inefficient and labor-intensive. In contrast, the newly engineered automatic PCB separator represents a significant advancement. It boasts a microcomputer-controlled automatic feeding system that accommodates a diverse range of board sizes and seamlessly interfaces with loaders. This innovation dramatically reduces labor demands, enhances productivity, automates workflow processes, and optimizes overall output.
The main features are as follows:
Autonomous PCB Separation Capability: The machine handles the entire PCB separation process autonomously, from input to cutting to output, ensuring smooth and efficient automation.
Enhanced Cutting Speed: With high-speed CNC tools, it swiftly separates boards, achieving multiple cuts per minute for substantial productivity gains.
Precise Cutting Accuracy: High-precision sensors and servo motor control ensure board separation within ±0.05mm, guaranteeing exceptional cutting precision.
Automated Material Handling System: The integrated silo and conveyor belt system automate the feeding and unloading of PCB boards, optimizing process efficiency and minimizing manual intervention.
Intelligent PLC-Based Control System: The system offers customizable separation schemes for different board sizes and includes fault self-diagnosis for proactive maintenance and minimized downtime.
User-Friendly Operation Interface: The intuitive and straightforward interface makes operation simple, while the compact and modular design facilitates easy maintenance and extends the equipment's durability.
Main features
Automated operation
The automated system enables rapid separation of PCBs, reduces manual operations, and improves production efficiency.
Precise cutting
The blade movement technology is used to accurately separate PCBs along the V-Cut gap to ensure cutting quality and integrity.
High efficiency
Able to process a large number of PCBs in a short time, suitable for large-scale production needs.
User-friendly interface
Equipped with an operation panel and display for easy monitoring and setting, the operation is simple and intuitive.
Safety design
Equipped with multiple safety protections to prevent accidental start-up or operation, ensuring the safety of operators.
Adjustable cutting parameters
Users can adjust the cutting depth and pressure according to the thickness and material of different PCBs.
Specification:
| Product name | Auto feeding blade moving PCB separator |
| Model | HS-208 |
| Part-up height | 15mm |
| Air supply | 0.6-0.8Mpa |
| Max board length | 360mm |
| Voltage | AC220V/110V,50/60Hz |
| Separating width | 50~360mm |
| Blade material | SKD61 high speed steel |
| Separating speed | Adjustsble |
| Suitable board | Aluminum, all kinds of fiber-glass board, FR4 |
| Machine size | 1000*850*1130mm |
| Weight | 100kg |
