| Brand Name: | JUKI |
| Model Number: | JUKI 502 KE2000 series |
| MOQ: | 1 PC |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs per month |

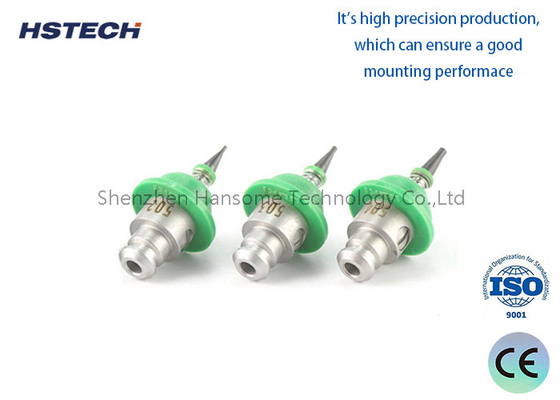

High Speed 502 2000 Series Nozzle Head JUKI SMT Nozzle for Components Suction
Juki Nozzle:
This 502 nozzle is an original or compatible new replacement for outdated nozzles in chip mounters. It is a high-precision tool capable of accurately suctioning components. Crafted from high-quality tungsten steel, it guarantees a long service life.
Overview:
JUKI is a renowned provider of electronic manufacturing equipment, with its nozzle products being extensively utilized in SMT assembly processes. The nozzle serves as a pivotal component in the placement machine, tasked with lifting electronic components from the feed tray and precisely placing them onto the PCB board.
Features of JUKI nozzles:
Diverse Product Offerings: JUKI offers a wide range of nozzles in various sizes, shapes, and materials to cater to different electronic components.
High-Precision Placement: The nozzles are capable of accurately locating components, ensuring the highest quality in the placement process.
Durability and Wear Resistance: Constructed from premium materials, the nozzles boast a long service life.
Ease of Maintenance: The nozzles can be swiftly replaced and cleaned, minimizing downtime and enhancing operational efficiency.
Main application scenarios:
SMT Patch Production Line: JUKI nozzles find extensive application in diverse types of placement machine equipment within SMT production lines.
Electronic Product Assembly: They are utilized for the precise placement of components in electronic products, including mobile phones, computers, and household appliances.
Medical Device Manufacturing: In the medical industry, JUKI nozzles are employed for the installation of components in precision medical equipment.
Aerospace Assembly: They play a crucial role in the assembly of electronic modules within the aerospace sector.
Specifications
| Brand | JUKI |
| Parts number | E36017290A0 |
| Nozzle type | 502 |
| Chip mounter | 20000series |
| Nozzle size | 31x16mm / 1.22x0.63 inch(Height x Diameter) |
| Nozzle color | Sliver and green |
| Material | Ceramic+Tungsten steel+Rubber |
| Weight | 8g |
| Package | Customized Blister |
Features
Crafted from premium materials including ceramic, tungsten steel, and rubber, these nozzles offer superior mounting performance and a prolonged lifespan.
The nozzles are securely packaged in customized blister packs to prevent damage during transportation.
Featuring a standard size with zero tolerance for error, these nozzles exhibit high precision.
Designed in eco-friendly green and silver hues, these nozzles not only look appealing but also contribute to environmental protection.
Ideal for suction and placement of various components, including cathode capacitors, diodes, SOTs, QFNs, BGAs, and more.

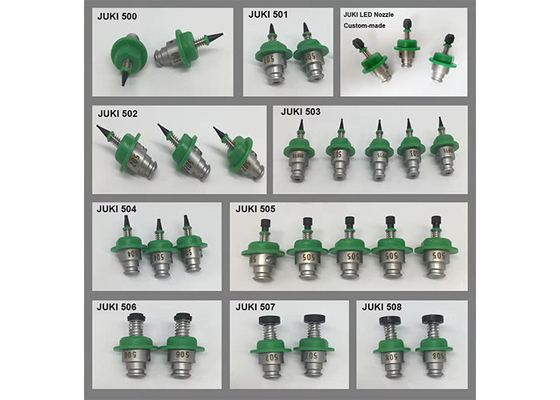

JUKI 2000 Series nozzle models
E36087290A0 JUKI NOZZLE 500 ASSY.1.0×0.5
E36007290A0 JUKI NOZZLE 501 ASSEMBLY 0.7×0.4
E36017290A0 JUKI NOZZLE 502 ASSEMBLY O 0.7/O 0.4
E36027290A0 JUKI NOZZLE 503 ASSEMBLY O 1.0/O 0.6
E36037290A0 JUKI NOZZLE 504 ASSEMBLY O 1.6/O 1.0
E36047290A0 JUKI NOZZLE 505 ASSEMBLY O 3.5/O 1.7
E36057290A0 JUKI NOZZLE 506 ASSEMBLY O 5.0/O 3.2
E36067290A0 JUKI NOZZLE 507 ASSEMBLY O 8.5/O 5.0
E36077290A0 JUKI NOZZLE 508 ASSEMBLY O 9.5/O 8.0
