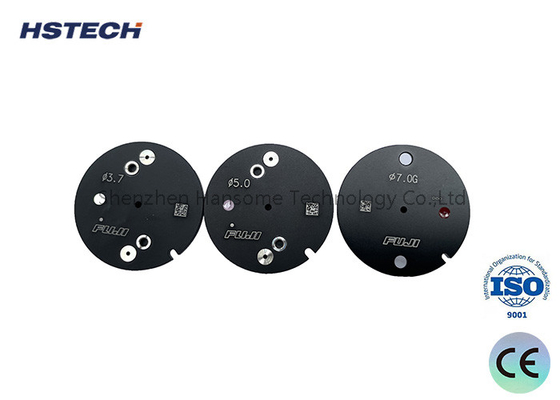

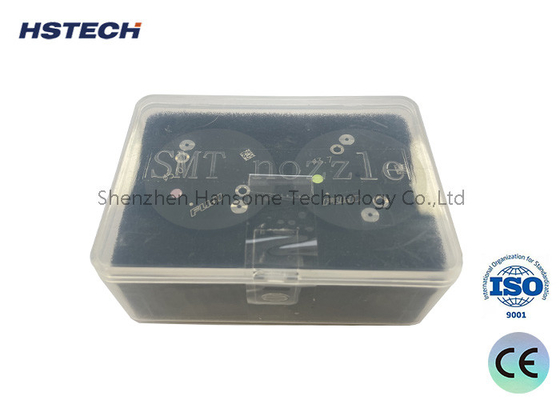

High-Precision SMT Nozzle for FUJI H01/H02 5.0 7.0GH08M RH01 RH02 Pick And Place Machine
SMT FUJI Nozzle
The nozzle plays a vital role in SMT equipment, particularly in automatic placement machines, as it is responsible for accurately lifting and conveying electronic components, thus enabling the automated surface mount technology (SMT) placement procedure.
Overview:
FUJI, a renowned provider of electronic manufacturing equipment, offers nozzle products that are extensively utilized in SMT assembly processes.
Serving as the pivotal component of the placement machine, the nozzle is tasked with lifting electronic components from the feeder tray and precisely positioning them onto the PCB board.
Working principle
Vacuum system
The placement machine is equipped with a vacuum pump inside, which can generate a strong negative pressure.
The nozzle is connected to the vacuum pump through a pipeline to form a vacuum negative pressure system.
Nozzle structure
The nozzle consists of a nozzle head, a gasket, a nozzle cover and other components.
The central hole of the nozzle head is connected to the vacuum system to generate negative pressure.
Suction process
When the nozzle head is close to the component, the negative pressure will absorb the component.
The gasket and the nozzle cover can seal the nozzle head to prevent gas leakage.
Placement process
After the component is absorbed, the placement machine will move it accurately to the specified position.
During placement, the negative pressure will keep the component firmly absorbed.
After the placement is completed, the negative pressure will be released and the component will be easily released.
Main features
1.Precision Suction Capability
The FUJI Nozzle utilizes advanced vacuum adsorption technology to engage with SMD components of varying sizes and shapes with precision.
Its powerful suction force and unmatched reliability ensure that components remain securely attached during the placement process.
2.Exceptional Durability
Made from premium metal materials, the nozzle body demonstrates exceptional resistance to high temperatures and wear and tear.
This results in a long lifespan, drastically reducing the need for maintenance and replacement, thereby lowering associated costs.
3.Versatile Compatibility
The FUJI Nozzle series offers a diverse range of specifications and sizes, accommodating various models of automated mounting equipment seamlessly.
The quick interchangeability of nozzles facilitates the fulfillment of diverse production requirements.
4.Boosted Production Efficiency
The combination of high-speed and precise suction and placement operations significantly enhances the overall efficiency of the SMT production line.
This reduction in manual intervention helps decrease labor costs.
Nozzle material:
| Tungsten steel nozzle | Tungsten steel nozzle is strong and durable, but it is easy to turn white. If it turns white, use an oil-based pen to paint it, and you can continue to use it. |
| Ceramic nozzles | Ceramic nozzles never turn white, but are brittle and easy to break. Careful use can avoid or reduce breakage. |
| Diamond steel nozzle | It is strong, easy to use, and will never turn white, but it is very expensive and not cost-effective. |
| Glue nozzle | When the surface of the material is uneven or the material is sticky, it is suitable to use the glue nozzle. However, the life of the glue nozzle is not long. It is recommended to buy more glue nozzles for spare when ordering the glue nozzle. When the nozzle is worn, you can just replace it with the rubber nozzle yourself |
Main application scenarios:
SMT Assembly Line: FUJI nozzles are extensively utilized in diverse patch equipment.
Electronic Product Manufacturing: They are employed for placing components in electronic products, including mobile phones, computers, and household appliances.
Medical Device Assembly: They serve in the installation of components within precision medical instruments.
Aerospace Industry: They are used in the assembly of electronic equipment for aerospace applications.
FUJI NXT Series NOZZLE:
NXT H08(H12) 2.5G nozzle,
AA73500 NXT H08(H12) 0.7 nozzle,
AA08500 NXT H01 3.7G nozzle,
AA08400 NXT H01 2.5G nozzle,
AA08300 NXT H01 20.0 nozzle,
AA08200 NXT H01 15.0 nozzle,
AA08100 NXT H01 10.0 nozzle,
AA08000 NXT H01 7.0 nozzle,
AA07900 NXT H01 5.0 nozzle,
AA07600 NXT H01 20.0G nozzle,
AA07400 NXT H01 10.0G nozzle,
AA07300 NXT H01 7.0G nozzle,
AA07200 NXT H01 5.0G nozzle,
AA07100 NXT H01 3.7 nozzle,
AA07000 NXT H01 2.5 nozzle,
AA06900 NXT H01 1.8 nozzle,
AA06400 NXT H08(H12) 1.3M nozzle,
AA06400 NXT H08(H12) 1.3G nozzle,
AA06300 NXT H08(H12) 5.0G nozzle,
AA05800 NXT H08(H12) 1.0 nozzle,
AA05800 NXT H01 1.3 nozzle,
AA05700 NXT H08(H12) 0.7 nozzle (0.7X0.5),
AA05600 NXT H08(H12) 0.4 nozzle (0.45X0.3),
AA20E00 NXT H08(H12) 5.0 nozzle,
AA20D00 NXT H08(H12) 3.7 nozzle,
AA20C00 NXT H08(H12) 2.5 nozzle,
AA20B00 NXT H08(H12) 1.8 nozzle,
AA20A00 NXT H08(H12) 1.3 nozzle,
AA19G00 NXT H08(H12) 1.8G nozzle,
AA18C00 NXT H08(H12) 3.7G nozzle,
AA11R00 NXT H01 1.8G nozzle,
AA08C00 or AA07L00 or AA07W00 or AA07D00 NXT H04 10.0 nozzle,
All item of nozzle for FUJI Pick and Place Machine
We sell SMT Nozzles of all brand ,such as YAMAHA, Panasonic, FUJI,JUKI,SAMSUNG ,etc.
