| Brand Name: | HSTECH |
| Model Number: | HS-F390 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
This energy-efficient equipment operates at 0.4-0.6Mpa air pressure and can handle components up to 32mm tall, with customization options available. Weighing either 45kg or 65kg, it offers a balance of portability and durability for easy relocation and heavy-duty applications.
Equipped with a precision blade measuring 125mm x 30mm x 3mm, this PCB Depaneling Equipment is designed to tackle challenging PCBs with exceptional precision and reliability, making it a preferred choice among electronics manufacturers.
Invest in this state-of-the-art PCB cutter to achieve optimal results. Order now and enhance your cutting capabilities!

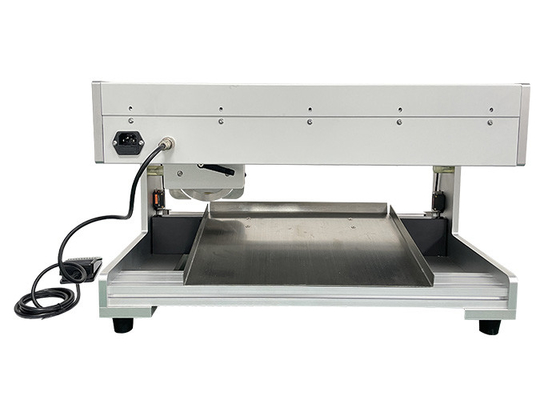

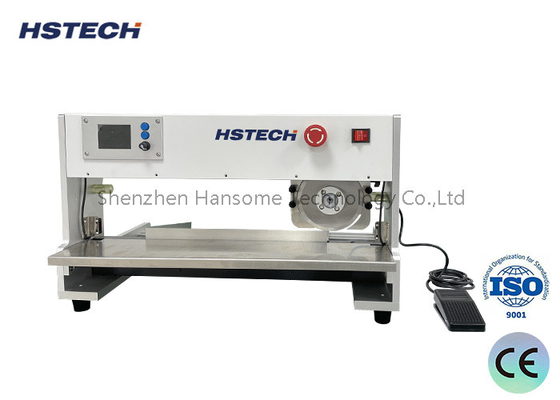

The PCB Depaneling Equipment operates on a V-slot insertion method, utilizing a blade's movement to separate PCBs with precision. It boasts a versatile and precise cutting setup, featuring a bottom linear blade (420mm×65mm×6mm) and an upper circular blade.
The equipment offers adjustable separation width ranging from 1mm to 150mm, accommodating a wide variety of PCB sizes. Additionally, it is designed to handle PCBs with thicknesses between 0.6mm and 3.2mm, ensuring compatibility with different board types.
As a dependable and efficient solution for separating printed circuit boards, the PCB Depaneling Equipment utilizes a v-cut PCB depanelizer for accurate cutting. Its innovative blade design and adjustable features make it an ideal choice for electronics manufacturers and other industries requiring PCB depaneling capabilities.
| Product Name | Advanced Blade Moving PCB Depaneling Equipment for 600mm Cutting Length |
| PCB Thickness | 0.6-3.2mm |
| Blade Material | High Speed Steel |
| Principle | Board insert to the V-slot, blade moving cutting |
| Linear Blade Size | 420mm×65mm×6mm |
| Separation Speed | 0~300mm/second(adjustable) |
| Components Height | ≤32mm( or customized) |
| Voltage | AC110V/220V 50/60Hz |
| Air Pressure | 0.4-0.6Mpa |
| Separation Width | Best 1~150mm |
The CE-certified HSTECH HS-F390 PCB Depaneling Equipment, made in China, offers swift PCB separation. With a low MOQ of 1 set and a monthly supply of 200, delivery is in 10-15 days.
Equipped with a high-speed steel blade, the HS-F390 cuts precisely at 300-500mm/s, accommodating components up to 32mm high. Ideal for PCB production, repairs, and maintenance, it separates large quantities quickly.
Compact (710x450x420mm or 900x450x420mm) and powered by 60W, the HS-F390 accepts T/T, Western Union, and MoneyGram. Packaged in a wooden case, it's user-friendly and efficient.
In summary, the HSTECH HS-F390 is a top-notch PCB depaneler for diverse applications, offering reliability and high performance.
The HSTECH HS-F390 PCB Depaneling Equipment includes comprehensive technical support and services.
We provide detailed documentation for setup, operation, and maintenance. Our online support team is available for quick fixes.
For personalized support, we offer on-site services including installation, training, and troubleshooting.
The product and parts are warranty-covered, and we offer customization.
In brief, the HS-F390, with our full support, offers a reliable PCB depaneling solution.
The HSTECH HS-F390 PCB Depaneling Equipment offers comprehensive support and services for seamless operation.
We provide detailed documentation for setup, maintenance, and operation. Our online team offers quick support via email and phone.
For personalized service, we offer on-site support, including installation, training, and troubleshooting. Our warranty covers the product and parts.
Customization services are available to meet your specific needs.
In summary, the HS-F390, paired with our support, offers a dependable PCB depaneling solution.
Q: What is the brand name of the PCB Depaneling Equipment?
A: The brand name of the PCB Depaneling Equipment is HSTECH.
Q: What is the model number of the PCB Depaneling Equipment?
A: The model number of the PCB Depaneling Equipment is HS-F390.
Q: Is the PCB Depaneling Equipment certified?
A: Yes, the PCB Depaneling Equipment is CE certified.
Q: Where is the PCB Depaneling Equipment manufactured?
A: The PCB Depaneling Equipment is manufactured in China.
Q: What is the minimum order quantity for the PCB Depaneling Equipment?
A: The minimum order quantity for the PCB Depaneling Equipment is 1 set.
Q: What are the payment terms for purchasing the PCB Depaneling Equipment?
A: The payment terms for purchasing the PCB Depaneling Equipment are T/T, Western Union, and MoneyGram.
Q: What is the supply ability for the PCB Depaneling Equipment?
A: The supply ability for the PCB Depaneling Equipment is 200 sets per month.
Q: How long is the delivery time for the PCB Depaneling Equipment?
A: The delivery time for the PCB Depaneling Equipment is 10-15 work days.
Q: How is the PCB Depaneling Equipment packaged?
A: The PCB Depaneling Equipment is packaged in a wooden case.
Q: Is the price of the PCB Depaneling Equipment negotiable?
A: Yes, the price of the PCB Depaneling Equipment is negotiable.
