High Precision JUKI SMT Nozzle for Components Suction in Electronic Manufacturing

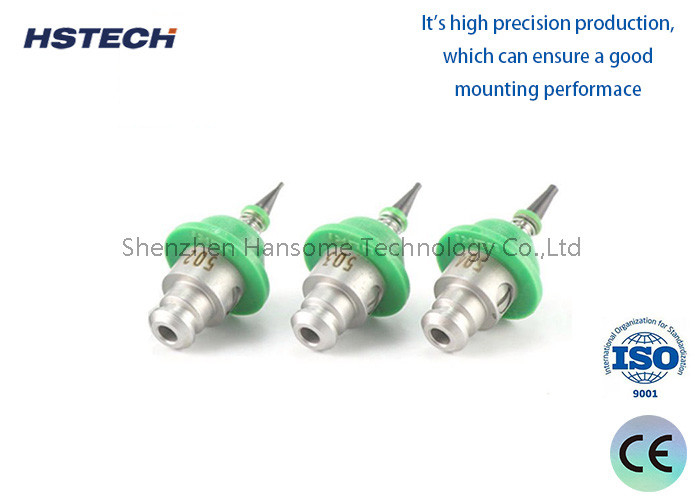

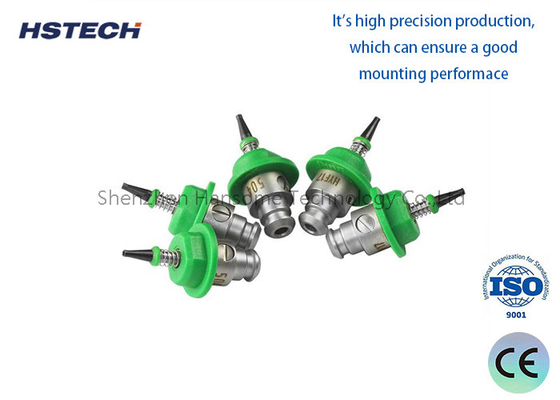

 High Speed 502 2000 Series Nozzle Head JUKI SMT Nozzle for Components Suction

The 502 nozzle serves as an original or compatible, brand-new replacement for obsolete nozzles used in chip mounting machines. It is a precision instrument designed to efficiently suction components with high accuracy. Made from premium tungsten steel, it ensures durability and a lengthy service life.

Overview:
JUKI is a well-known supplier of electronic manufacturing equipment, and its nozzle products are widely used in SMT patch processes.
The nozzle is one of the core components of the patch machine, which is used to pick up electronic components from the material tray and accurately attach them to the PCB board.

Features of JUKI nozzles:
Diversified product lines: JUKI provides nozzles of different sizes, shapes, and materials to adapt to various components.
High-precision positioning: The nozzle can accurately locate components to ensure the quality of placement.
Wear resistance: Made of high-quality materials, long service life.
Easy to maintain: can be quickly replaced and cleaned to reduce downtime.

Main application scenarios:

SMT Assembly Line: JUKI nozzles find extensive application in diverse types of surface mount technology (SMT) machines.

Electronic Product Manufacturing: They are utilized for placing components in electronic devices like mobile phones, computers, and household appliances.

Medical Device Fabrication: These nozzles are employed for installing parts in high-precision medical equipment.

Aerospace Assembly: They serve the purpose of assembling electronic modules within the aerospace industry.

Specifications

Features

1.Crafted using superior materials such as ceramic, tungsten steel, and rubber, these nozzles provide exceptional mounting performance and extended durability.

2.To safeguard against damage during transit, these nozzles are securely enclosed in customized blister packs.

3.Boasting a standard size with zero error tolerance, these nozzles demonstrate remarkable precision.

4.With an eco-friendly design in appealing green and silver colors, these nozzles not only enhance aesthetics but also support environmental sustainability.

5.Perfect for suctioning and placing a wide range of components, including cathode capacitors, diodes, SOTs, QFNs, BGAs, and various others.

JUKI 2000 Series nozzle models

E36087290A0 JUKI NOZZLE 500 ASSY.1.0×0.5
E36007290A0 JUKI NOZZLE 501 ASSEMBLY 0.7×0.4
E36017290A0 JUKI NOZZLE 502 ASSEMBLY O 0.7/O 0.4
E36027290A0 JUKI NOZZLE 503 ASSEMBLY O 1.0/O 0.6
E36037290A0 JUKI NOZZLE 504 ASSEMBLY O 1.6/O 1.0
E36047290A0 JUKI NOZZLE 505 ASSEMBLY O 3.5/O 1.7
E36057290A0 JUKI NOZZLE 506 ASSEMBLY O 5.0/O 3.2
E36067290A0 JUKI NOZZLE 507 ASSEMBLY O 8.5/O 5.0
E36077290A0 JUKI NOZZLE 508 ASSEMBLY O 9.5/O 8.0
