Visual CDD Automatic Screw Fastening Machine with Panasonic Servo Motor

Introduction

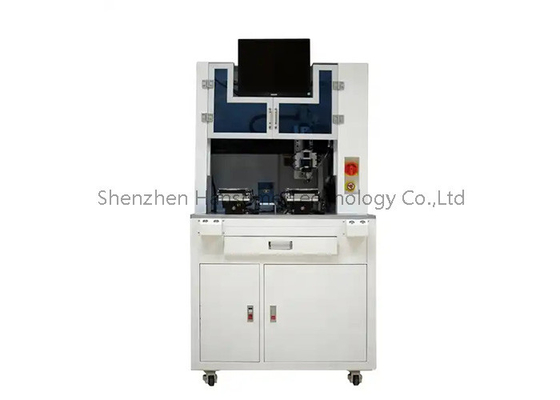

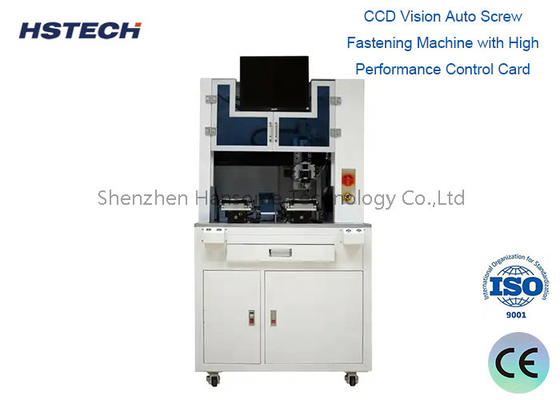

This advanced screw-locking machine integrates CCD positioning technology and is compatible with the Windows operating system. It provides a visual guide through each step of the screw-fastening process. The machine is equipped with the HIWIN P-Class KK slide module and powered by a Panasonic servo motor, featuring a customized nail feeder designed to eliminate nail jams. Additionally, it incorporates a laser positioning sensor for accurate detection of the locking height. The servo intelligent electric screwdriver ensures precise screwing, while a high-performance motion control card coordinates all movements of the fastening equipment seamlessly.

Application

This automatic screw-locking machine, equipped with CCD technology, is widely used for securing casings of smartphones, power adapters, PCB electronics, batteries, small household appliances, Wi-Fi routers, power supplies, toy wheels, automotive components, and various other small electronic products.

Main components

Feeding System: The automatic feeding device guarantees a continuous supply of screws, minimizing downtime.

Drive System: It features either an electric or pneumatic drive, offering consistent torque and speed.

Control System: Operated via PLC or touch screen for user-friendly control and monitoring.

Application areas

Electronics Manufacturing: It is essential to swiftly tighten screws during circuit board assembly to guarantee dependable connections.

Automotive Industry: Fast screw tightening of body parts and interior components is employed to enhance assembly efficiency.

Home Appliance Production: In the manufacturing lines of washing machines, refrigerators, and other home appliances, this technology is used to elevate the level of automation in production.

Advantages

Improve efficiency: significantly increase production speed and reduce production cycle.
Reduce labor costs: Reduce dependence on labor and reduce worker fatigue.
Improve consistency: Ensure consistent tightening quality for each screw, reducing errors caused by human factors.

Specfication
