Automatic Screw Fastening Robot Flexible Operation For Various Production Needs

Brand Name:	HSTECH
Model Number:	HS-SL551S
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Desktop Screw Tightening Robot

Feeding:

Pick-up Screw

Axis:

3 Axis

Screws:

M1-M6

Moving Range:

500*500*100mm

Material:

Main Aluminum

Port:

Shenzhen

Oem:

Yes

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Highlight:

Automatic Screw Fastening Robot

Flexible Operation Screw Fastening Machine

Product Description

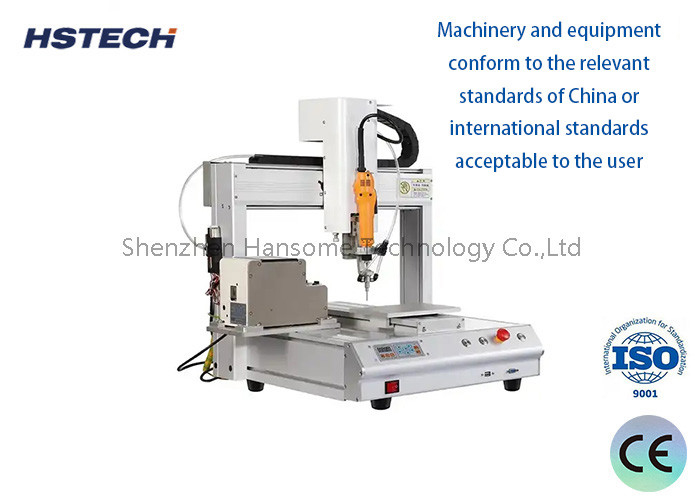

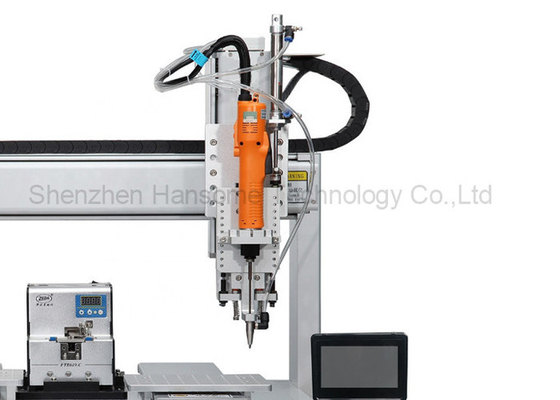

Desktop Screw Tightening Robot single slide screw locking machine

Introduction

A screw machine primarily consists of two essential systems: the feeding system and the locking system. Within this setup, the feeding component, also frequently referred to as the screw feeder, employs a straightforward design that organizes screws in a single file to boost operational efficiency. As a piece of automation equipment, it has gained extensive application in the electronics industry, particularly for managing screws ranging from M1 to M6 sizes.

Specification

Model	HS-SL551S	HS-SL661S
Production name	Automatic Screw Locking Machine
Moving range(X/Y/Z)	500500100mm	600600100mm
X/Y axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M5
Machine dimension	746785800mm	845885800mm
Machine weight	50kg	55kg

Main parts brand

1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell

Features

Here's a rewritten version of your text:

Enhanced Suction Feeding Efficiency: Utilizing advanced suction feeding technology significantly boosts feeding speed and overall operational efficiency.
Versatile Operational Mode: Featuring a desktop and visible operation design, it integrates seamlessly into automatic production lines for hassle-free integration.
Extensive Movement Range: Available in sizes 500x500x100mm and 600x600x100mm, accommodating a wide range of working conditions.
Multi-Screw Capability: Supports multi-screw suction silos, enhancing material handling capacity and flexibility.
Versatile Expansion Options: Supports a variety of expansion applications, including screw locking, dispensing, welding, testing, handling, and assembly, making it a versatile multi-purpose machine.
Multi-Axis Dual-Platform Configurations: Offers multi-axis and dual-platform options to cater to different production scales and efficiency requirements.
Intelligent Editing Capabilities: Equipped with intelligent editing functions such as regional array replication, platform replication, batch editing, and single-step operation, simplifying the operational process.
Offline Operation and Parameter Preservation: After editing operation parameters, they can be downloaded to the controller via serial port for offline operation. Parameters can also be stored in a handheld box for convenient use as needed.
High-Capacity File Storage: The machine boasts the ability to store hundreds of processing files, with each file supporting up to 1000 screw bits, facilitating quick access and management.
