| Brand Name: | HSTECH |
| Model Number: | HS-310 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 200sets per month |

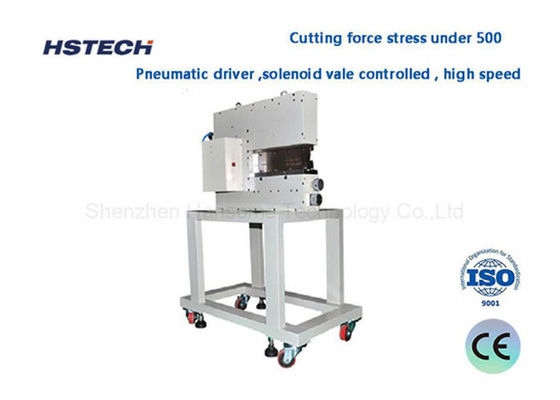

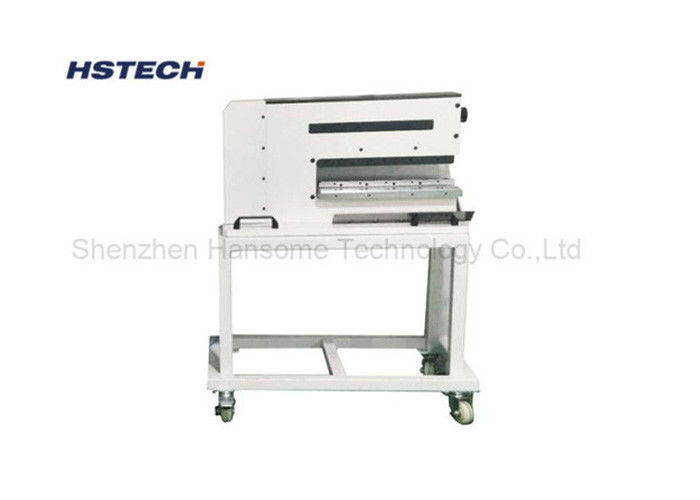

High Power Pneumtic Guillotine V-Cut PCB Separator Depaneling Machine
Introduction
This machine operates pneumatically and is controlled electrically, featuring a convenient 6-digit counter for easy cut tracking.
The linear knife depaneling machines are engineered to delicately separate prescored panelboards without inducing bending or tensile stress. Even delicate SMD components, like ceramic capacitors, remain intact during the depaneling process.
Compatible with a diverse array of boards, including PCB boards, LED aluminum boards, COB boards, copper boards, and more, this machine applies minimal cutting force and produces negligible cutting burrs. The resulting board edge is smooth and even, making it an ideal solution for high-precision board cutting.
Specification
| Model | HS-310 |
| Power | 10W |
| Air supply | 0.5~0.8Mpa |
| Efficient cutting length | 1-360mm |
| Linear blade size | 360*43.5*6mm |
| Blade material | Import high quality high speed steel tool |
| Separating speed | 1-300mm/s |
| V-cut thickness | 0.3-3.5mm |
| Air consumption | 200-400(L/min) |
| Machine size | 700*325*400mm |
| Weight | 130kg |
| Suitable board | All V-cut board |
Features
1.The guillotine-style separation method utilizes a low force stress of 500-600 micro-extensions to guarantee high-quality cutting results.
2.This machine is capable of cutting a wide range of material boards, including high-hardness materials, aluminum, and copper boards.
3.Safety is paramount: The small guillotine is only engaged during the board feeding process, thereby ensuring the operator's safety.
4.It boasts a user-friendly design and is straightforward to operate.
5.Constructed with imported high-quality steel cutting tools, ensuring durability and longevity.
