Stable Performance V-Cut Blade PCB Separator PCB Depaneling Equipment for Long-Term

 Easy to Operate V-Cut Blade PCB Separator PCB Depaneling Equipment with 400mm Length

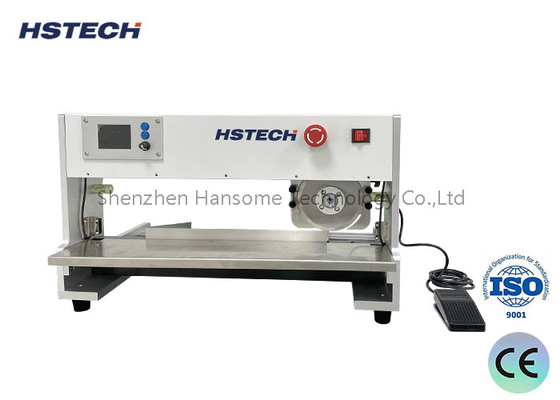

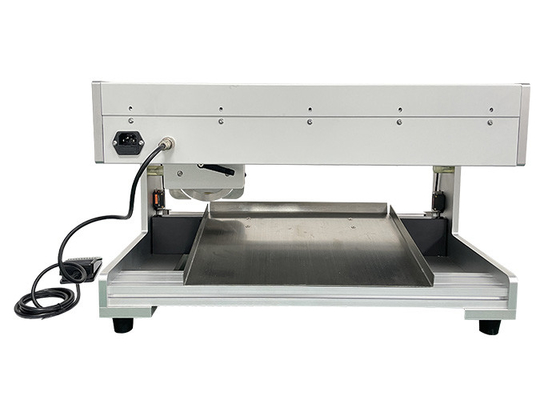

The HS-300 machine is a PCB separator that incorporates a moving blade design. It features an upper circular blade working in conjunction with a lower linear blade. Before initiating the cut, the user positions the v-groove onto the linear blade. Subsequently, the upper circular blade moves to execute the separation. The force exerted during this procedure is relatively minimal, eliminating the need to move the PCB. This, in turn, safeguards the components on the board and prevents any potential harm.

High-Precision Cutting Capabilities:
The V-shaped tool design facilitates precise and clean cutting edges.
An advanced CNC system guarantees the precision of the cutting trajectory.

Enhanced Efficiency:
Automated functionality significantly boosts productivity and reduces labor expenses.
It supports batch processing, making it ideal for small to medium-sized production runs.

Versatile Material Application:
This system can cut not only PCB boards but also a wide range of materials, including plastics and metals.
With flexible tool options, it meets the processing demands of diverse materials.

Safety and Reliability:
Incorporating safety protection measures, it effectively prevents operator injuries during use.
Its stable cutting performance and robust mechanical design ensure long-lasting and efficient operation.

User-Friendly Operation:
A straightforward and intuitive control interface makes it easy for operators to learn and use.
Cutting parameters can be tailored to suit specific requirements with ease.

Features

1. This machine is capable of cutting various types of boards featuring v-slots.

2. The blade is designed for durability and can be reshaped at least twice.

3. The height of the circular blade can be adjusted to accommodate different types of PCBs with varying component heights.

4. Blade movement requires relatively low force, controlled by a single motor, making operation easy and convenient.

5. Equipped with an induction function, the machine will halt operation if the operator touches the area where the blade is moving.

6. Safety is ensured with a double protective device, eliminating concerns about production safety.

7. Built to last, the machine utilizes high-quality blades made from superior materials.

Specification
