Automatic PCB Depaneling Equipment With Integrated Feeding Mechanism

Automatic Blade Moving Mini PCB Depaneling Equipment With PLC Control System

Introduction:

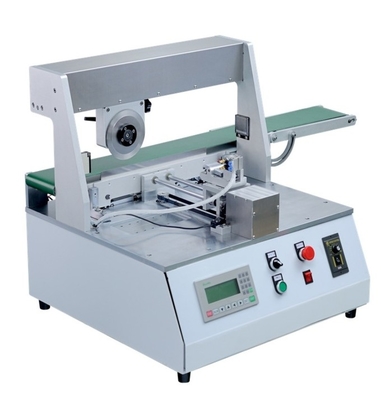

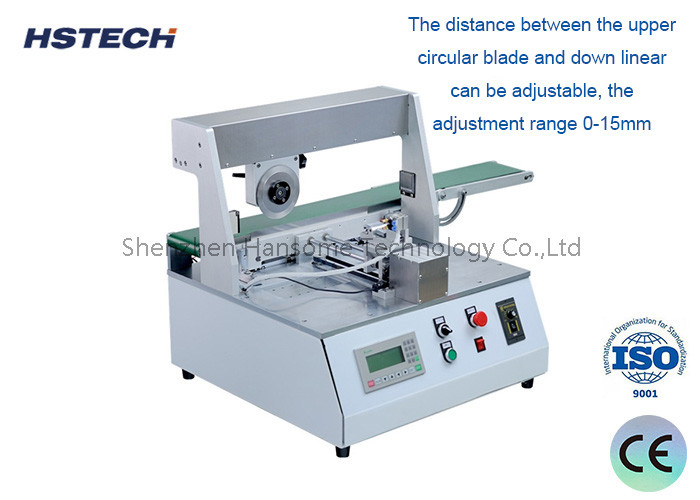

This automated PCB separation system boasts an integrated automatic feeding mechanism and employs an innovative design combining an upper circular blade with a lower linear blade. Throughout the depaneling process, the PCB remains firmly positioned as the rotating circular blade efficiently performs the separation.

Advantages:

The conventional PCB separator, reliant on manual operation, is both inefficient and labor-intensive. In contrast, the newly engineered automatic PCB separator marks a significant advancement. Its microcomputer-controlled automatic feeding system effortlessly accommodates diverse board sizes and interfaces with loaders, thereby minimizing labor costs, boosting productivity, automating processes, and maximizing output.

The main features are as follows:

1. Autonomous PCB Separation: From input to cutting to output, the machine autonomously completes the entire PCB separation cycle, ensuring uninterrupted automation.
2. High-Speed Cutting Performance: Equipped with high-speed CNC tools, it rapidly separates boards, achieving multiple cuts per minute for enhanced productivity.
3. Precision Cutting Accuracy: High-precision sensors and servo motor control ensure board separation within ±0.05mm, delivering impeccable cutting precision.
4. Automated Material Flow: Integrated silo and conveyor belt automate PCB board feeding and unloading, optimizing process efficiency.
5. Intelligent Control System: PLC-based, it programs custom separation schemes for various sizes and includes fault self-diagnosis for proactive maintenance.
6. User-Centric Design: The intuitive interface simplifies operation, while the compact structure facilitates easy maintenance, prolonging equipment lifespan.

Main features
Automated operation
The automated system enables rapid separation of PCBs, reduces manual operations, and improves production efficiency.

Precise cutting
The blade movement technology is used to accurately separate PCBs along the V-Cut gap to ensure cutting quality and integrity.

High efficiency
Able to process a large number of PCBs in a short time, suitable for large-scale production needs.

User-friendly interface
Equipped with an operation panel and display for easy monitoring and setting, the operation is simple and intuitive.

Safety design
Equipped with multiple safety protections to prevent accidental start-up or operation, ensuring the safety of operators.

Adjustable cutting parameters
Users can adjust the cutting depth and pressure according to the thickness and material of different PCBs.
