PLC Controlled PCB Depaneling Equipment Increase Efficiency with AC220V/110V Voltage

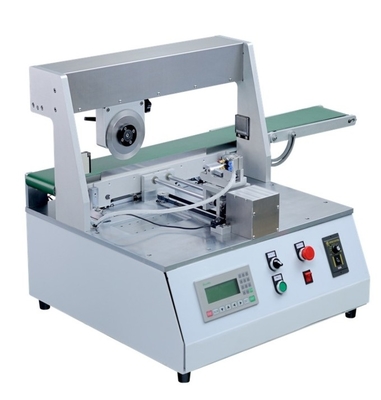

Automatic Blade Moving Mini PCB Depaneling Equipment With PLC Control System

Introduction:

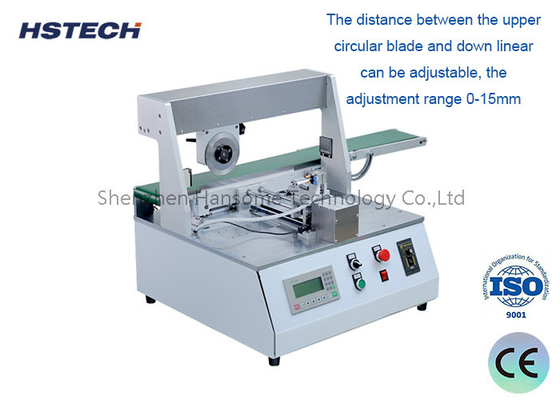

This automated PCB separation system features an integrated automatic feeding mechanism. It utilizes an innovative combination of an upper circular blade and a lower linear blade. During the depaneling process, the PCB remains securely in place while the circular blade rotates, efficiently completing the separation task.

Advantages:

The traditional PCB separator, which relies on manual handling, is inefficient and labor-intensive. However, the revamped automatic PCB separator changes the game entirely. Its microcomputer-controlled auto-feeding system accommodates various board sizes and integrates smoothly with loaders. This reduces labor, enhances productivity, automates workflows, and maximizes output.

The main features are as follows:

1. Autonomous PCB Separation: The machine autonomously handles the entire PCB separation cycle, from input to cutting to output, ensuring seamless automation.
2. High-Speed Cutting Capability: With high-speed CNC tools, it swiftly separates boards, achieving multiple cuts per minute to boost productivity.
3. Precision Cutting Accuracy: High-precision sensors and servo motor control guarantee board separation within ±0.05mm, ensuring impeccable cutting precision.
4. Automated Material Handling: The integrated silo and conveyor belt automate PCB board feeding and unloading, optimizing overall process efficiency.
5. Intelligent Control System: Based on PLC technology, it programs customizable separation schemes for various sizes and includes fault self-diagnosis for proactive maintenance.
6. User-Friendly Design: The intuitive interface makes operation simple, while the compact structure allows for easy maintenance, extending equipment lifespan.

Main features
Automated operation
The automated system enables rapid separation of PCBs, reduces manual operations, and improves production efficiency.

Precise cutting
The blade movement technology is used to accurately separate PCBs along the V-Cut gap to ensure cutting quality and integrity.

High efficiency
Able to process a large number of PCBs in a short time, suitable for large-scale production needs.

User-friendly interface
Equipped with an operation panel and display for easy monitoring and setting, the operation is simple and intuitive.

Safety design
Equipped with multiple safety protections to prevent accidental start-up or operation, ensuring the safety of operators.

Adjustable cutting parameters
Users can adjust the cutting depth and pressure according to the thickness and material of different PCBs.
