| Brand Name: | FUJI |
| Model Number: | H01/H02/H08M/ RH01/ RH02 |
| MOQ: | 1 PC |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 reels per month |

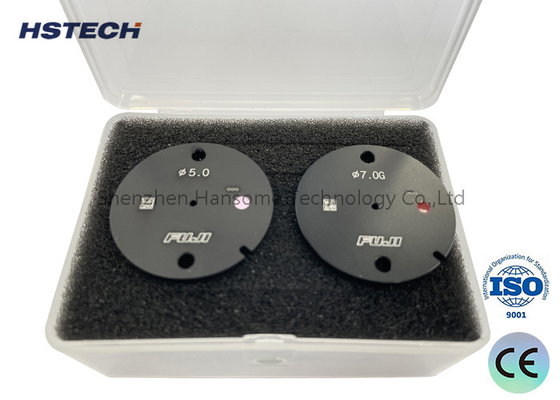

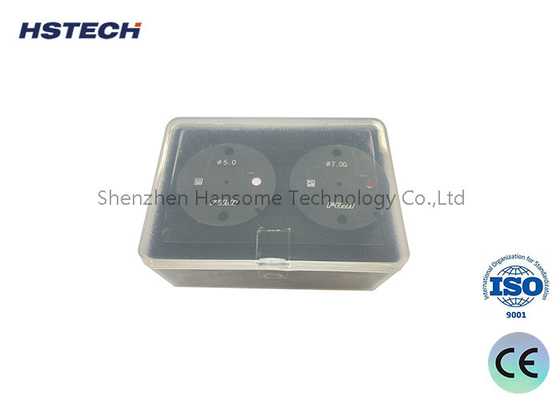

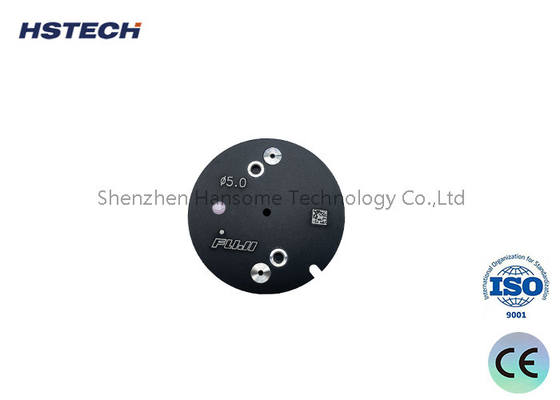

High-Precision SMT Nozzle for FUJI H01/H02 5.0 7.0GH08M RH01 RH02 Pick And Place Machine
SMT FUJI Nozzle
The nozzle serves as a crucial component in SMT equipment, including automatic placement machines. Its primary role is to precisely pick up and transport electronic components, thereby facilitating the automated surface mount technology (SMT) placement process.
Overview:
FUJI, a renowned provider of electronic manufacturing equipment, offers nozzle products that are extensively utilized in SMT assembly processes.
Serving as the pivotal component of the placement machine, the nozzle is tasked with lifting electronic components from the feeder tray and precisely positioning them onto the PCB board.
Working principle
Vacuum system
The placement machine is equipped with a vacuum pump inside, which can generate a strong negative pressure.
The nozzle is connected to the vacuum pump through a pipeline to form a vacuum negative pressure system.
Nozzle structure
The nozzle consists of a nozzle head, a gasket, a nozzle cover and other components.
The central hole of the nozzle head is connected to the vacuum system to generate negative pressure.
Suction process
When the nozzle head is close to the component, the negative pressure will absorb the component.
The gasket and the nozzle cover can seal the nozzle head to prevent gas leakage.
Placement process
After the component is absorbed, the placement machine will move it accurately to the specified position.
During placement, the negative pressure will keep the component firmly absorbed.
After the placement is completed, the negative pressure will be released and the component will be easily released.
Main features
Precision Suction Capability
The FUJI Nozzle employs cutting-edge vacuum adsorption technology to precisely engage with SMD components of diverse sizes and shapes.
Its robust suction force and unparalleled reliability prevent components from detaching during the placement process.
Exceptional Durability
Crafted from premium metal materials, the nozzle body exhibits exceptional resistance to high temperatures and wear.
This ensures a lengthy lifespan, significantly minimizing the need for maintenance and replacement, thereby reducing associated costs.
Versatile Adaptability
The FUJI Nozzle series boasts a wide array of specifications and sizes, seamlessly accommodating various models of automated mounting equipment.
Quick nozzle interchanges facilitate the fulfillment of diverse production requirements.
Enhanced Production Efficiency
The combination of high-speed and precise suction and placement operations significantly boosts the overall efficiency of the SMT production line.
This reduction in manual interventions helps lower labor costs.
Nozzle material:
| Tungsten steel nozzle | Tungsten steel nozzle is strong and durable, but it is easy to turn white. If it turns white, use an oil-based pen to paint it, and you can continue to use it. |
| Ceramic nozzles | Ceramic nozzles never turn white, but are brittle and easy to break. Careful use can avoid or reduce breakage. |
| Diamond steel nozzle | It is strong, easy to use, and will never turn white, but it is very expensive and not cost-effective. |
| Glue nozzle | When the surface of the material is uneven or the material is sticky, it is suitable to use the glue nozzle. However, the life of the glue nozzle is not long. It is recommended to buy more glue nozzles for spare when ordering the glue nozzle. When the nozzle is worn, you can just replace it with the rubber nozzle yourself |
Main application scenarios:
SMT patch production line: FUJI nozzles are widely used in various patch equipment.
Electronic product manufacturing: used for component placement of electronic products such as mobile phones, computers, and home appliances.
Medical equipment assembly: used for component installation of precision medical instruments.
Aerospace field: used for assembly of aerospace electronic equipment.
FUJI NXT Series NOZZLE:
NXT H08(H12) 2.5G nozzle,
AA73500 NXT H08(H12) 0.7 nozzle,
AA08500 NXT H01 3.7G nozzle,
AA08400 NXT H01 2.5G nozzle,
AA08300 NXT H01 20.0 nozzle,
AA08200 NXT H01 15.0 nozzle,
AA08100 NXT H01 10.0 nozzle,
AA08000 NXT H01 7.0 nozzle,
AA07900 NXT H01 5.0 nozzle,
AA07600 NXT H01 20.0G nozzle,
AA07400 NXT H01 10.0G nozzle,
AA07300 NXT H01 7.0G nozzle,
AA07200 NXT H01 5.0G nozzle,
AA07100 NXT H01 3.7 nozzle,
AA07000 NXT H01 2.5 nozzle,
AA06900 NXT H01 1.8 nozzle,
AA06400 NXT H08(H12) 1.3M nozzle,
AA06400 NXT H08(H12) 1.3G nozzle,
AA06300 NXT H08(H12) 5.0G nozzle,
AA05800 NXT H08(H12) 1.0 nozzle,
AA05800 NXT H01 1.3 nozzle,
AA05700 NXT H08(H12) 0.7 nozzle (0.7X0.5),
AA05600 NXT H08(H12) 0.4 nozzle (0.45X0.3),
AA20E00 NXT H08(H12) 5.0 nozzle,
AA20D00 NXT H08(H12) 3.7 nozzle,
AA20C00 NXT H08(H12) 2.5 nozzle,
AA20B00 NXT H08(H12) 1.8 nozzle,
AA20A00 NXT H08(H12) 1.3 nozzle,
AA19G00 NXT H08(H12) 1.8G nozzle,
AA18C00 NXT H08(H12) 3.7G nozzle,
AA11R00 NXT H01 1.8G nozzle,
AA08C00 or AA07L00 or AA07W00 or AA07D00 NXT H04 10.0 nozzle,
All item of nozzle for FUJI Pick and Place Machine
We sell SMT Nozzles of all brand ,such as YAMAHA, Panasonic, FUJI,JUKI,SAMSUNG ,etc.
