JUKI SMT Nozzle High Precision Nozzle for Accurate Component Placement

 High Speed 502 2000 Series Nozzle Head JUKI SMT Nozzle for Components Suction

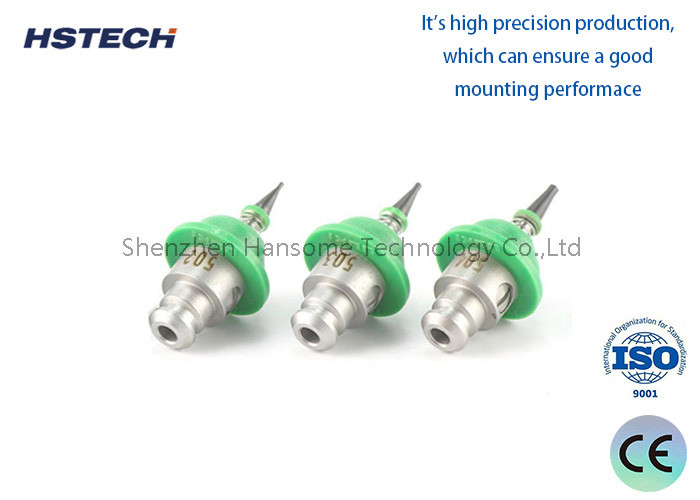

This 502 nozzle is an original or compatible new replacement for outdated nozzles in chip mounters. It is a high-precision tool capable of accurately suctioning components. Crafted from high-quality tungsten steel, it guarantees a long service life.

Overview:
JUKI is a well-known supplier of electronic manufacturing equipment, and its nozzle products are widely used in SMT patch processes.
The nozzle is one of the core components of the patch machine, which is used to pick up electronic components from the material tray and accurately attach them to the PCB board.

Features of JUKI nozzles:
Diversified product lines: JUKI provides nozzles of different sizes, shapes, and materials to adapt to various components.
High-precision positioning: The nozzle can accurately locate components to ensure the quality of placement.
Wear resistance: Made of high-quality materials, long service life.
Easy to maintain: can be quickly replaced and cleaned to reduce downtime.

Main application scenarios:
SMT patch production line: JUKI nozzles are widely used in various types of patch machine equipment.
Electronic product assembly: used for component placement of electronic products such as mobile phones, computers, and home appliances.
Medical device manufacturing: used for component installation of precision medical equipment.
Aerospace assembly: used for electronic module assembly in the aerospace field.

Specifications

Features

1. Crafted from premium materials including ceramic, tungsten steel, and rubber, these nozzles offer superior mounting performance and a prolonged lifespan.

2. The nozzles are securely packaged in customized blister packs to prevent damage during transportation.

3. Featuring a standard size with zero tolerance for error, these nozzles exhibit high precision.

4. Designed in eco-friendly green and silver hues, these nozzles not only look appealing but also contribute to environmental protection.

5. Ideal for suction and placement of various components, including cathode capacitors, diodes, SOTs, QFNs, BGAs, and more.

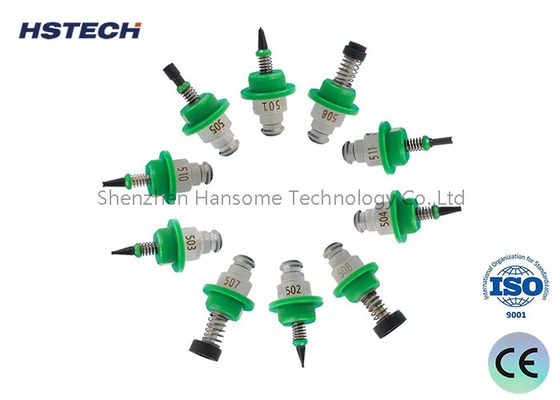

JUKI 2000 Series nozzle models

E36087290A0 JUKI NOZZLE 500 ASSY.1.0×0.5
E36007290A0 JUKI NOZZLE 501 ASSEMBLY 0.7×0.4
E36017290A0 JUKI NOZZLE 502 ASSEMBLY O 0.7/O 0.4
E36027290A0 JUKI NOZZLE 503 ASSEMBLY O 1.0/O 0.6
E36037290A0 JUKI NOZZLE 504 ASSEMBLY O 1.6/O 1.0
E36047290A0 JUKI NOZZLE 505 ASSEMBLY O 3.5/O 1.7
E36057290A0 JUKI NOZZLE 506 ASSEMBLY O 5.0/O 3.2
E36067290A0 JUKI NOZZLE 507 ASSEMBLY O 8.5/O 5.0
E36077290A0 JUKI NOZZLE 508 ASSEMBLY O 9.5/O 8.0
