| Brand Name: | HSTECH |
| Model Number: | HS-310 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 200sets per month |

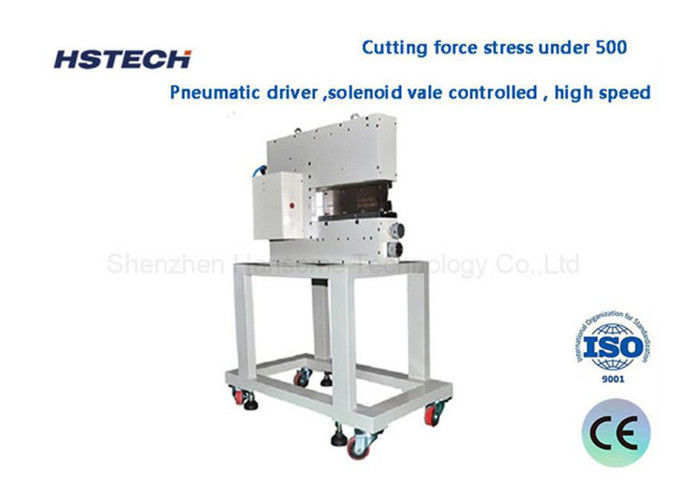

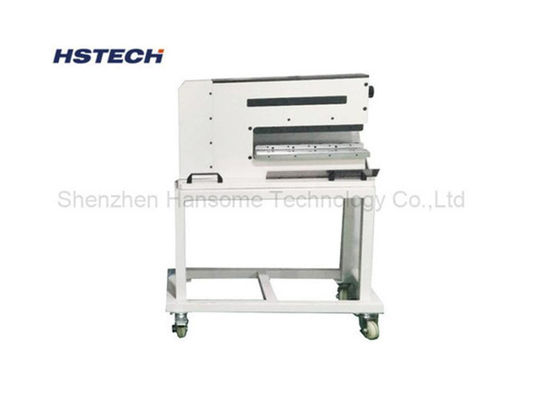

High Power Pneumtic Guillotine V-Cut PCB Separator Depaneling Machine
Introduction
This machine is powered pneumatically and controlled electrically, featuring a built-in 6-digit counter for convenient cut counting.
The linear knife depaneling machines are designed to carefully depanel prescored panelboards without causing bending or tension stress. Even sensitive SMD components, such as ceramic capacitors, remain unharmed during the depaneling process.
Suitable for a wide range of boards, including PCB boards, LED aluminum boards, COB boards, copper boards, and more, this machine offers low cutting force stress and minimal cutting burrs. The resulting board side is smooth and flat, making it an excellent choice for high-quality board cutting.
Specification
| Model | HS-310 |
| Power | 10W |
| Air supply | 0.5~0.8Mpa |
| Efficient cutting length | 1-360mm |
| Linear blade size | 360*43.5*6mm |
| Blade material | Import high quality high speed steel tool |
| Separating speed | 1-300mm/s |
| V-cut thickness | 0.3-3.5mm |
| Air consumption | 200-400(L/min) |
| Machine size | 700*325*400mm |
| Weight | 130kg |
| Suitable board | All V-cut board |
Features
Guillotine-style separation with low force stress of 500-600 micro-extensions, ensuring high-quality cutting.
Suitable for cutting a variety of material boards, including high-hardness materials, aluminum, and copper boards.
Safety first: The small guillotine is only activated during board feeding, ensuring operator safety.
User-friendly and easy to operate.
Built to last with imported high-quality steel cutting tools.
