| Brand Name: | HSTECH |
| Model Number: | HS-300 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
Easy to Operate V-Cut Blade PCB Separator PCB Depaneling Equipment with 400mm Length
Blade Miving PCB Separator:

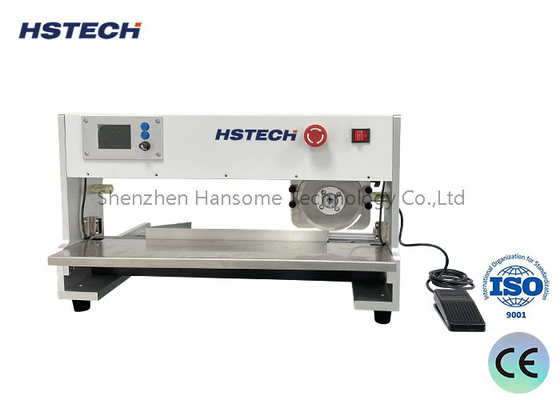

This HS-300 machine is a PCB separator featuring a moving blade design. It utilizes an upper circular blade combined with a lower linear blade. Prior to cutting, the user places the v-groove onto the linear blade, and then the upper circular blade moves to complete the separation process. The force applied during this process is relatively low, meaning that the PCB does not need to be moved, thereby protecting the components on the board and preventing any potential damage.
High-precision cutting:
The V-shaped tool design can achieve precise and neat cutting lines.
The advanced CNC system ensures the accuracy of the cutting path.
High efficiency:
Automated operation greatly improves work efficiency and saves labor costs.
Supports batch processing, suitable for small and medium batch production.
Multi-material application:
Not only can it cut PCB boards, but also can cut a variety of materials such as plastics and metals.
Flexible tool selection meets the processing needs of different materials.
Safe and reliable:
The safety protection design is adopted to effectively avoid personal injury during operation.
Stable cutting performance and mechanical structure ensure long-term and efficient operation.
Easy to operate:
Simple and intuitive control interface, easy for operators to master.
Cutting parameters can be flexibly set according to actual needs.
Features
This machine is capable of cutting various types of boards featuring v-slots.
The blade is designed for durability and can be reshaped at least twice.
The height of the circular blade can be adjusted to accommodate different types of PCBs with varying component heights.

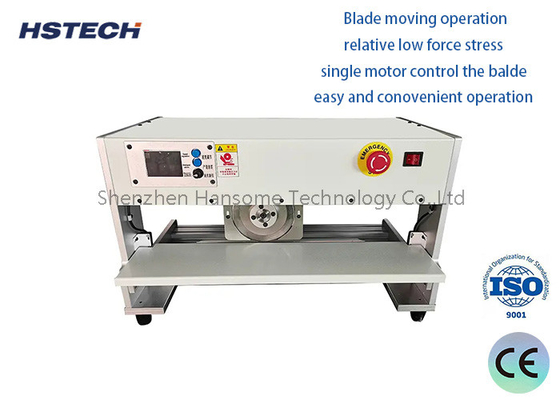

Blade movement requires relatively low force, controlled by a single motor, making operation easy and convenient.
Equipped with an induction function, the machine will halt operation if the operator touches the area where the blade is moving.
Safety is ensured with a double protective device, eliminating concerns about production safety.
Built to last, the machine utilizes high-quality blades made from superior materials.
Specification
| Model | HS-300 | |||
| Voltage | 110V/220V(optional) | |||
| Power | 100W | |||
| Efficient cutting length | 5-360mm | |||
| Blade size | Circular blade φ125*3mm, Linear blade 360*45*6mm | |||
| Blade material | Import high quality high speed steel tool | |||
| Separating speed | 300mm/s | |||
| V-cut thickness | 1/3 of the board | |||
| Separating width | Best 1-200mm | |||
| Machine size | 620*320*450mm | |||
| Weight | 50kg | |||
| Blade Miving PCB Separator | |||
