| Brand Name: | HSTECH |
| Model Number: | HS-500LC |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 200 sets per month |
SMT Machine Parts PCB Lead Cutting Machine 8/10inch Blade Max 250mm Width AI Machine
Introduction
This machine serves to trim the excess leads or feet of PCBAs post wave soldering. It primarily comprises two components: PCB fixation and blade fixation. The PCB is conveyed by a chain and securely clamped on both sides, along with a thimble placed at its base for additional stability. Once the blade is firmly positioned and its height adjusted, the PCB is transported for automated lead trimming. The blade rotates swiftly and stably, generating minimal noise while maintaining high efficiency. Additionally, a warp prevention device is installed to guarantee that the PCBA boards remain unharmed during the process.
Feature
Utilizes an eagle-claw-style shrapnel fixture for automatic clamping and feeding of PCB boards, ensuring high stability. The plate feeding speed is adjustable, while the spindle operates at high speeds with low noise, precision, and efficiency.
This model is equipped with a pair of conveyor chains that clamp and transport PCBAs to the rapidly rotating blade for trimming.

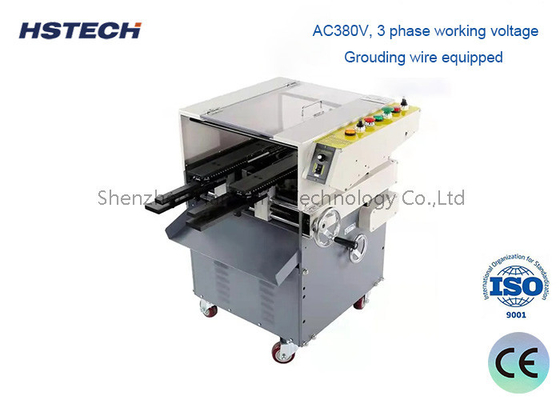

The working voltage is AC380V, 3-phase, and a grounding wire is included for safety.
The machine is compatible for integration with automatic soldering machines or AI machines.
Known for its high stability, this machine can seamlessly connect with automatic soldering machines or AI machines.
Equipped with a bending prevention device to address the issue of PCB bending during welding.
The input speed is adjustable, with a maximum speed of 3 meters per minute.
Specification
| Model | HS-500LC |
| Power | AC220, 50/60Hz/380V,50/60Hz |
| Max. PCB size | 400mm(L) x 250mm(W) |
| Main axis speed | 4500/Min |
| Main axis motor | 3/4 Hp |
| Guide rail speed | 0-3 M can be adjustable |
| Min. lead height | 1.0-1.5mm Min |
| Machine Demension | 750*600*860mm(W*D*H) |
| Net Weight | 115KG |
We have not only SMT machines and equipment, but also many machine parts.We are supplier of smt machine parts and equipment. such as Feeder,Nozzle,PCB board turnover cart,SMT grease,Solder paste mixer,SMD counter,Laser Sensor,Filter,KIC thermal profiler,Servo Motor and so on.
Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer. We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of SMT/THT production line board handling equipment.
