Panasonic CM402 CM602 Original N510042737AA Z Axis Motor for SMT Machine Parts

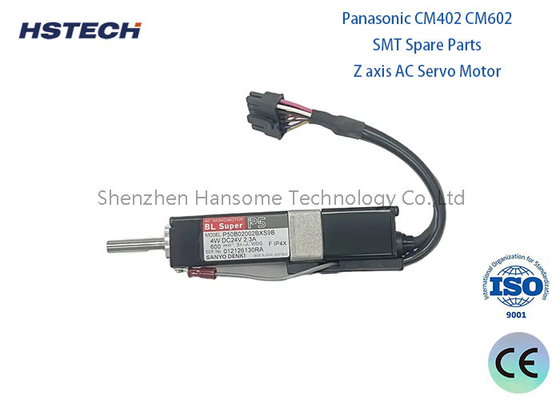

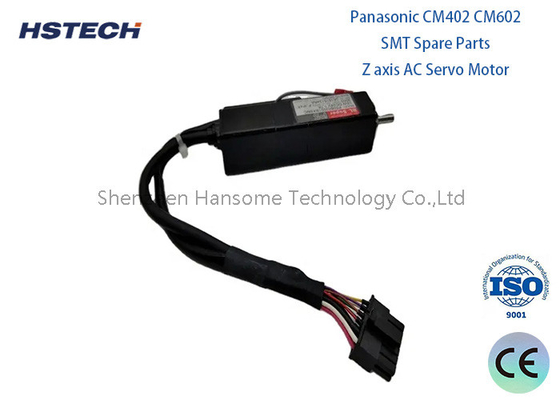

Original Panasonic N510042737AA Z Axis Motor with AC Servo Motor for CM402 CM602 Machine

Introduction

This component is tailor-made for Panasonic's pick-and-place machines, notably the CM402 and CM602 models, functioning as an AC servo driver that powers and regulates the Z-axis movement within these devices, thereby guaranteeing accurate and effective performance.

High-precision positioning
The high-precision stepper motor design can provide a positioning accuracy of 0.01mm, which is very suitable for application scenarios that require fine positioning.

High torque output
The motor has a rated torque of 2.4N·m and can bear heavier vertical axis loads.

High response speed
The stepper motor can provide fast response drive performance, up to 500 steps/second.

Reliable and durable
The metal shell design makes the mechanical structure firm and reliable, and durable. It also has good anti-vibration performance.

Easy to control
It can be easily matched with various drive controllers and supports common pulse/direction control interfaces.

Compact size
The overall size is only 42mm x 42mm x 60mm, which can be easily integrated into various devices.

Wide application
The motor is widely used in 3D printers, CNC machine tools, automation equipment and other fields that require high-precision vertical axis drive.

Specification

N510056943AA LINEAR MOTOR,DC 6W
N510008188AA DC SERVO MOTOR,50W
N510042737AA DC SERVO MOTOR,15W
KXF0E1LXA00 DC SERVO MOTOR,50W
N510042738AA DC SERVO MOTOR,20W
N510042739AA DC SERVO MOTOR,25W
N510042740AA DC SERVO MOTOR,3W
N610027892AA REGULATOR
KXFX03EJA00 REGULATOR

KXFYGC00014 MOTOR
KXFYGC00008 MOTOR
N510037999AA MOTOR

N510015534AA MOTOR
