| Brand Name: | HSTECH |
| Model Number: | HS-SL551S |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |
| Model | HS-SL551S | HS-SL661S |

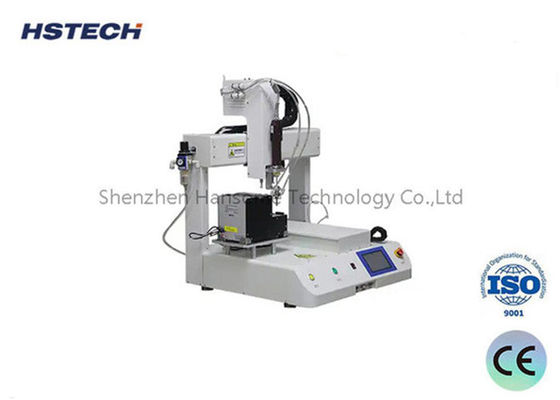

| Production name | Automatic Screw Locking Machine | |
| Moving range(X/Y/Z) | 500*500*100mm | 600*600*100mm |
| X/Y axis moving speed | Closed loop motor :1-800mm/s | |
| Z axis moving speed | Closed loop motor: 1-300mm/s | |
| X/Y axis max load | Closed loop motor: 5KG | |
| Z axis max load | Closed loop motor: 3KG | |
| Power supply | AC110V/220V, 50/60Hz | |
| Repeat accuracy | ±0.02mm | |
| Document support | CAD CorelDraw | |
| Suitable screws | M1-M5 | |
| Machine dimension | 746*785*800mm | 845*885*800mm |
| Machine weight | 50kg | 55kg |
Main parts brand
1, Motor: Shinano
2, Guide: Hiwin
3, Photoelectric switch: Omron
4, Power supply: Meanwell
Features

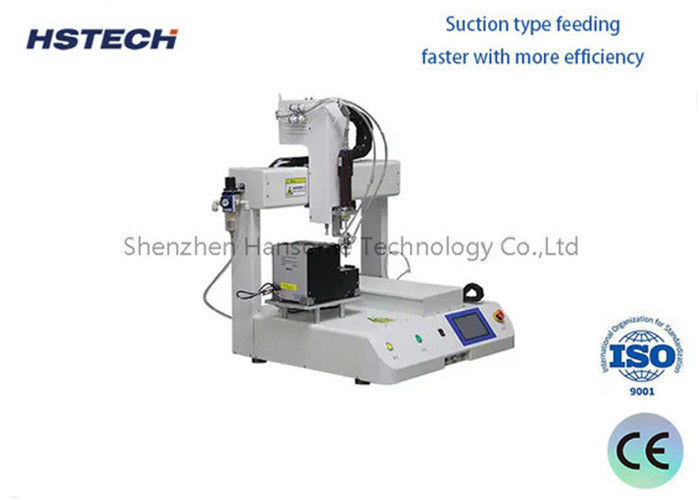

Suction-based Feeding for Enhanced Speed and Efficiency: The machine employs a suction-type feeding system that significantly accelerates the process while maintaining high efficiency, ensuring swift and seamless screw delivery.
Desktop Integration with Visual Operation: Designed for easy desktop placement, the machine offers a clear visual interface, facilitating seamless integration into automatic production lines, enhancing operational flexibility.
Versatile Moving Range Options: Accommodating various workspace requirements, the machine offers two customizable moving range options: 500500100mm or 600600100mm, ensuring a perfect fit for your specific application.
Multi-Screw Bin Support in Suction Mode: The system efficiently supports multiple screw bins in suction mode, allowing for a wider range of screw types and sizes, streamlining the screw feeding process.
Extended Application Capabilities: Beyond screw locking, the machine boasts extended functionalities including screw dispensing, welding, testing, handling, and assembly, catering to a diverse range of industrial needs.
Advanced Multi-Axis and Dual Platform Configurations: Available with multiple axis and double platform options, the machine offers unparalleled versatility and scalability, ensuring optimal performance across various production scenarios.
Sophisticated Programming Features: Equipped with regional array replication, platform replication, batch editing, and single-step operation capabilities, the machine simplifies complex programming tasks, saving time and effort.
Offline Operation with Serial Port Connectivity: Once operation parameters are edited, they can be seamlessly downloaded to the controller via serial port, enabling offline operation. Additionally, action parameters can be saved in a hand-held box for easy retrieval and reuse.
Extensive Memory Capacity for Processing Files: The machine boasts a storage capacity for hundreds of processing files, with each file supporting up to 1000 screw bits. This allows for seamless file management and quick access when needed, optimizing your production workflow.
