| Brand Name: | HSTECH |
| Model Number: | HS-500LC |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 200 sets per month |
High Stability SMT Machine Parts AC380V 8/10inch Blade 3600rpm Automatic PCB Lead Cutting Machine
Feature
Utilizes the eagle claw-type shrapnel fixture for automatic clamping and pushing of the PCB board, ensuring high stability. The plate feeding speed is adjustable, while the spindle operates at high speed with low noise, delivering high precision and efficiency.
This model is equipped with a pair of conveyor chains that clamp and transport the PCBA to the high-speed blade for trimming.

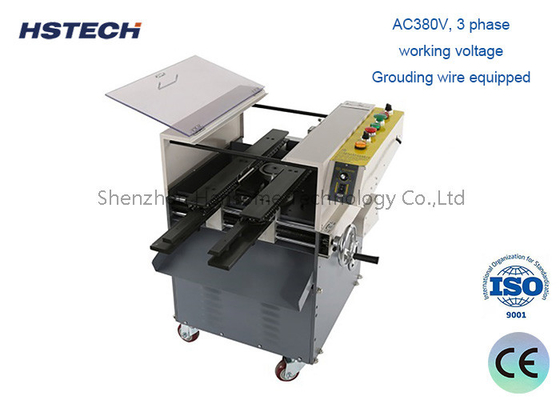

Operates on an AC380V, 3-phase working voltage and includes a grounding wire for safety.

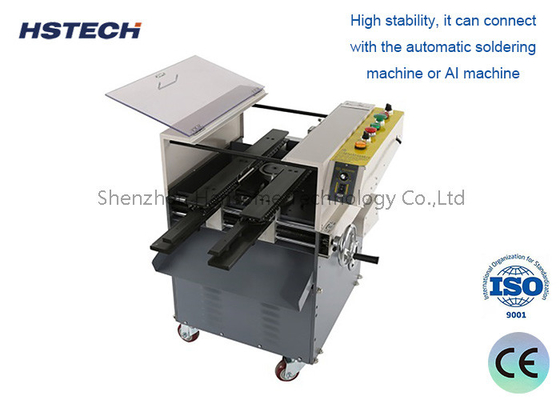

The machine is compatible for integration with automatic soldering machines or AI machines.
Boasts high stability and seamless integration capabilities with automatic soldering machines or AI machines.
Features a bending prevention device to overcome the issue of PCB bending during welding.
The input speed is adjustable, with a maximum speed of 3 meters per minute.
Specification
| Model | HS-500LC |
| Power | AC220, 50/60Hz/380V,50/60Hz |
| Max. PCB size | 400mm(L) x 250mm(W) |
| Main axis speed | 4500/Min |
| Main axis motor | 3/4 Hp |
| Guide rail speed | 0-3 M can be adjustable |
| Min. lead height | 1.0-1.5mm Min |
| Machine Demension | 750*600*860mm(W*D*H) |
| Net Weight | 115KG |
