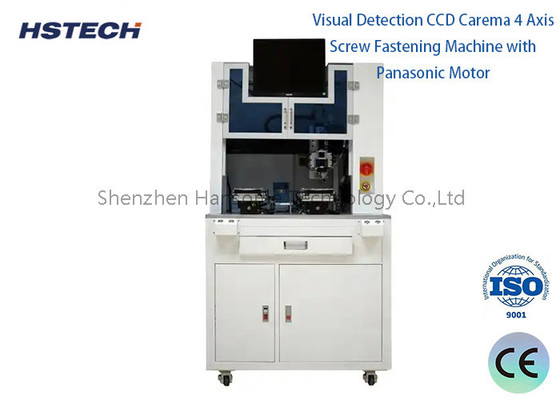

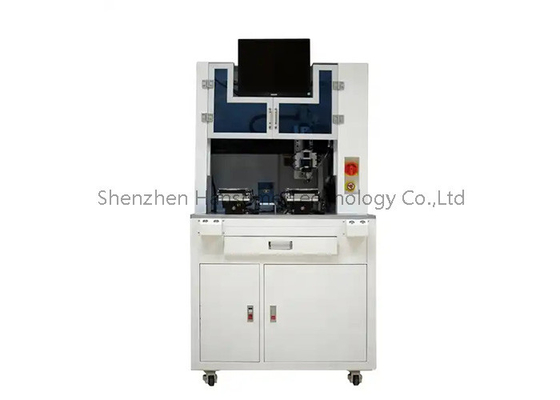

High Precision 6 Axis Automotive Parts CCD Automatic Screw Fastening Machine with Servo Electric Driver

Visual CDD Automatic Screw Fastening Machine with Panasonic Servo Motor

Introduction

This machine is a high-precision screw-locking device equipped with CCD positioning technology and compatible with the Windows operating system. It allows for the visualization of all screw-fastening operation steps. Utilizing the HIWIN P-Class KK slide module and a Panasonic servo motor, this machine features a custom nail feeder that prevents nail jamming. Additionally, it incorporates a laser positioning sensor to accurately detect the locking height. The servo intelligent electric screwdriver ensures high-precision screwing, and all movements of the fastening equipment are seamlessly controlled by a high-performance motion control card.

Application

This CCD-equipped automatic screw-locking machine is extensively utilized for securing the casings of smartphones, power adapters, PCB electronic devices, batteries, small household appliances, Wi-Fi routers, power supplies, toy wheels, as well as various automotive components and other small electronic products.

Main components

Feeding system: Automatic feeding device ensures continuous supply of screws and reduces downtime.
Drive system: electric or pneumatic drive, providing stable torque and speed.
Control system: controlled by PLC or touch screen for easy operation and monitoring.

Application areas
Electronics Manufacturing: Quickly tighten screws when assembling circuit boards to ensure reliable connections.
Automotive industry: used for fast screw tightening of body and interior components to improve assembly efficiency.
Home appliance production: Used in the production lines of washing machines, refrigerators and other home appliances to improve the automation level of the production line.

Advantages

Improve efficiency: significantly increase production speed and reduce production cycle.
Reduce labor costs: Reduce dependence on labor and reduce worker fatigue.
Improve consistency: Ensure consistent tightening quality for each screw, reducing errors caused by human factors.

Specfication
