| Brand Name: | HSTECH |
| Model Number: | HS-310L |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

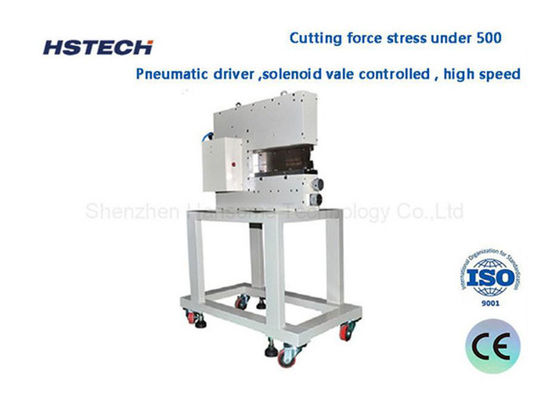

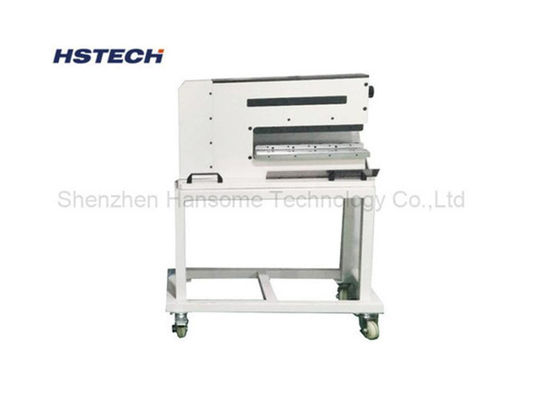

V-CUT PCB Depaneling Equipment with Adjustable Blade Height for Easy Operation
Introduction:
Features:
Specification:
| Product name | PCB depanelizer |
| Model | HS-310L |
| Part-up height | Max 40mm |
| Part-down height | Max 20mm |
| Air supply | 5Kgf/cm |
| Output | 12.5tons(gross) |
| Efficient cutting length | 1-360mm |
| Linear blade size | 360*43.5*6mm |
| PCB thickness | 0.1mm~2.0mm(With v grove) 0.1mm ~1.0mm(Without V grove ) |
| Blade material | Import high quality high speed steel tool |
| Separating speed | 1-300mm/s |
| V-cut thickness | 0.3-3.5mm |
| Air consumption | 200-400(L/min) |
| Machine size | 700*325*400mm |
| Weight | 130kg |
| Suitable board | All V-cut boards |
Application Areas:
1. Electronics Manufacturing
SMT (Surface Mount Technology)
During the SMT production process, the depaneling machine is used to separate the circuit boards that have been patched and soldered for subsequent testing and packaging.
2. R&D and Prototyping
Sample Testing
In new product development, the depaneling machine helps to quickly separate samples for testing and evaluation.
3. Small batch production
Flexible production
Suitable for the needs of small batch production, the depaneling machine can adjust the cutting parameters according to different requirements to improve production flexibility.
4. Repair and Service
Circuit board maintenance
During the repair process, the depaneling machine can separate the damaged part of the circuit board for replacement and repair.
Application boards:
