| Brand Name: | HSTECH |
| Model Number: | HS-SL5331 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |
Features
Versatility & Compactness: This unit offers unparalleled adaptability across various applications, boasting a minimalist footprint that seamlessly integrates into automated production lines. Its ingenious design facilitates swift and effortless product switches, fostering flexibility and driving operational efficiency to new heights.
Smart Inspection Technology: Armed with a cutting-edge inspection system, it autonomously pinpoints and alerts on critical issues including missed locking mechanisms, unstable fasteners, and loose screws. This unwavering precision ensures a reliable and impeccable production process.
Optimized Operator Experience: Innovatively featuring a dual Y-platform architecture, this unit revolutionizes operator workflow by enabling alternating loading and unloading of parts. This streamlined process enhances productivity by maximizing operator efficiency and minimizing downtime.
| Model | HS-SL5331 | |

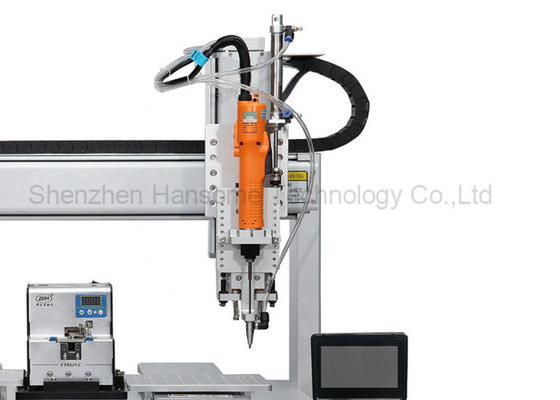

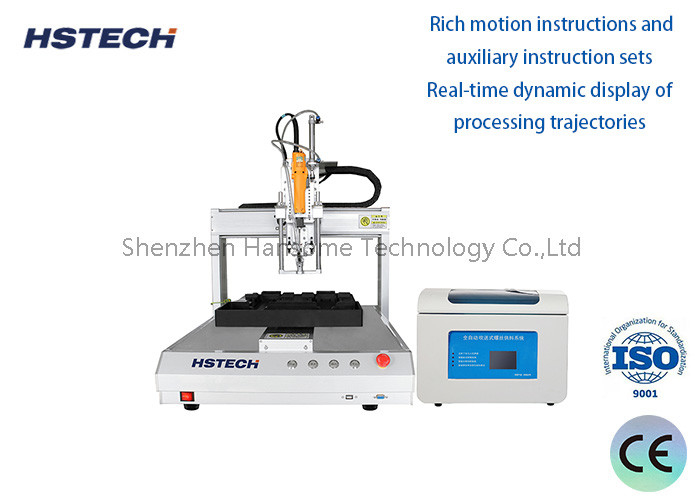

| Production name | 4Axis Automatic Screw Locking Machine | |
| Moving range(X/Y1/Y2/Z) | 500*300*300*100mm | |
| X/Y1/Y2 axis moving speed | Closed loop motor :1-800mm/s | |
| Z axis moving speed | Closed loop motor: 1-300mm/s | |
| X/Y1/Y2 axis max load | Closed loop motor: 5KG | |
| Z axis max load | Closed loop motor: 3KG | |
| Power supply | AC110V/220V, 50/60Hz | |
| Repeat accuracy | ±0.02mm | |
| Document support | CAD CorelDraw | |
| Suitable screws | M1-M6 | |
| Machine dimension | 746*585*800mm | |
| Machine weight | 65kg | |
Main parts brand
1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell
About Product
About Details
SMT production line equipment
1. Universal SMT machine: Using the program edited by the device to mount components onto designated parts positions, it can mount SOP 28 pin or more (including components that can be mounted by high-speed machines) roll, disc, or tubular packaging components. Its characteristics are high precision and diversity, but its installation speed is inferior to high-speed machines.
2. Reflow soldering: Use SMT solder paste or red glue to set an appropriate temperature curve to complete the soldering action between the solder paste and the part.
3. Unloader: The board is loaded into the magazine through a transfer track.
