| Brand Name: | HSTECH |
| Model Number: | HS-300 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per week |
Adjustable 400mm Length PCB Separator Cutter Machine with Induction Function
Introduction

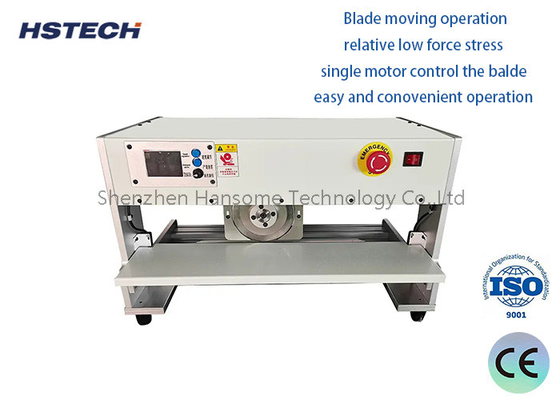

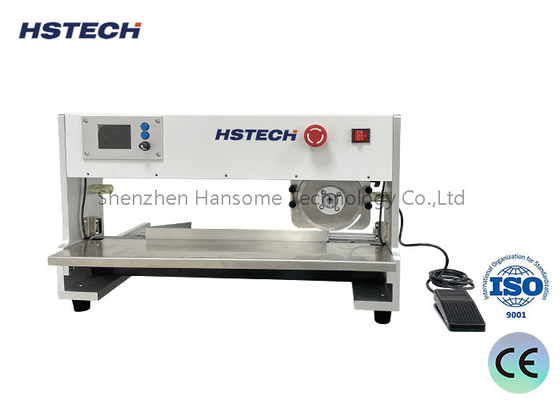

The HS-300 machine represents a pioneering PCB separator, incorporating a distinctive blade movement mechanism. Its innovative design ingeniously fuses an upper circular blade with a lower linear blade. Before initiating the cutting process, a precise V-groove is aligned onto the linear blade, ensuring accuracy. Subsequently, the upper circular blade gracefully engages, effortlessly accomplishing the separation with minimal force exertion. This unique setup keeps the PCB board firmly stationary throughout, safeguarding the delicate components mounted on it and mitigating any risk of damage.
Features
This multifaceted machine adeptly handles a broad spectrum of boards featuring V-slots, embodying exceptional adaptability for diverse applications.
The blade's design epitomizes durability, with the capacity for at least two reshaping cycles, drastically prolonging its lifespan and minimizing maintenance expenses.
The fully adjustable circular blade height ensures seamless compatibility with PCBs of varying heights and intricate components, guaranteeing a precise and efficient cutting process.
Simplicity and efficiency reign as a single motor controls the blade's movement, exerting minimal force stress and facilitating a smooth, user-friendly operation.
Emphasizing operator safety, the machine incorporates an induction function that instantaneously halts operations upon the operator's entry into the blade's vicinity, fostering a safe work environment.
Unwavering commitment to safety is evident in the double protective device, eliminating any production safety concerns and enabling carefree operation.
Crafted from premium, robust materials, the blade ensures longevity and dependability, positioning this machine as a valuable asset for any production line, representing a wise investment for long-term success.
Specification
| Model | HS-300 | |||
| Voltage | 110V/220V(optional) | |||
| Power | 100W | |||
| Efficient cutting length | 5-360mm | |||
| Blade size | Circular blade φ125*3mm, Linear blade 360*45*6mm | |||
| Blade material | Import high quality high speed steel tool | |||
| Separating speed | 300mm/s | |||
| V-cut thickness | 1/3 of the board | |||
| Separating width | Best 1-200mm | |||
| Machine size | 620*320*450mm | |||
| Weight | 50kg | |||
