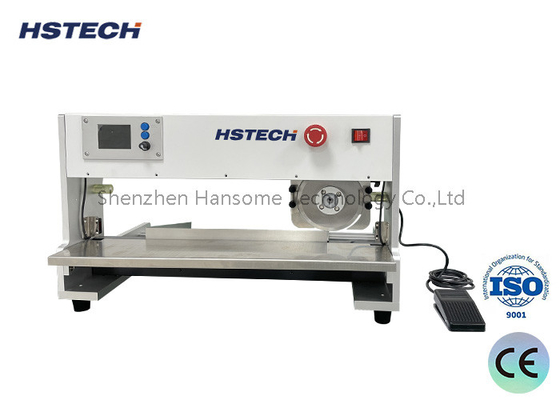

Effortless PCB Depaneling Blade Moving Principle Equipment for 0.8-3mm Thickness

Product Description:

Operating at an air pressure range of 0.4-0.6Mpa, this energy-efficient equipment is designed to effortlessly handle components up to 32mm in height, with customization options available to accommodate specific requirements. Weighing either 45kg or 65kg, it balances portability with durability, allowing for easy relocation while enduring heavy-duty usage.

Equipped with a precision circular blade measuring 125mm30mm3mm, this PCB Depaneling Equipment tackles even the toughest PCBs with remarkable ease. It stands as the go-to solution for electronics manufacturers and any industry relying on PCBs, delivering unparalleled cutting precision and reliability.

Experience optimal results consistently with this state-of-the-art PCB cutter. Don't hesitate to invest in a tool that will revolutionize your production process. Order your PCB Depaneling Equipment now and elevate your cutting capabilities to the next level!

Features:

Product Name: PCB Depaneling Equipment

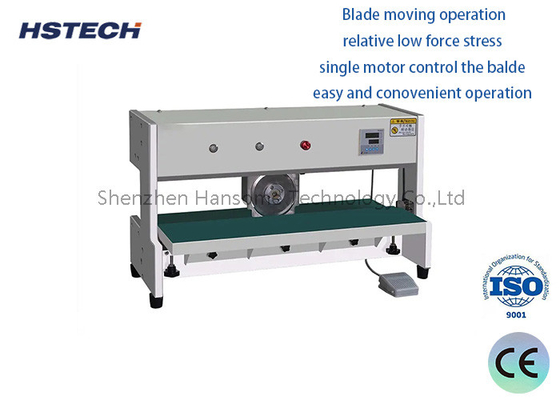

Principle: The machine utilizes a V-slot insertion method, with a blade moving cutting principle to precisely separate PCBs.
Blade Configuration: Equipped with a bottom linear blade (dimensions: 420mm×65mm×6mm) and an upper circular blade, ensuring versatility and precision in cutting.
Separation Width: Capable of adjusting the separation width from 1mm to 150mm, accommodating a wide range of PCB sizes.
PCB Compatibility: Designed to process PCBs with thicknesses ranging from 0.6mm to 3.2mm, ensuring compatibility with a variety of board types.
This PCB Depaneling Equipment is a reliable and efficient solution for printed circuit board separation, utilizing a v-cut PCB depanelizer for precise and accurate cutting. Its innovative blade design and adjustable separation width make it an ideal choice for electronics manufacturers and other industries requiring PCB depaneling capabilities.

Technical Parameters:

Introducing our advanced PCB depaneling equipment, a versatile v-cut PCB depanelizer and printed wiring board splitter. Engineered to manage PCB thicknesses between 0.8mm and 3mm, this machine boasts high-speed steel blades for durability and precision. The linear blade measures 420mm×65mm×6mm, ensuring efficient cutting.

Operating on the principle of board insertion into the V-slot followed by blade movement for cutting, this equipment offers adjustable separation speeds ranging from 300 to 500mm/second. It can accommodate components with a maximum height of ≤32mm, with customization options available to suit specific needs.

Powered by AC110V/220V at 50/60Hz, the machine requires an air pressure of 0.4-0.6Mpa for optimal performance. With a best-suited separation width of 1~200mm, this PCB depaneling equipment is a must-have for electronics manufacturers and industries requiring precise PCB separation. Experience the ultimate in PCB processing with our advanced depaneling solution.

Applications:

The HSTECH HS-F390 PCB Depaneling Equipment, a CE-certified product from China, stands as a premium solution for quick and efficient PCB separation. This printed wiring board splitter boasts a minimum order quantity of just 1 set and a monthly supply capacity of 200 sets, with a swift delivery time of 10-15 working days.

Equipped with a high-speed steel blade, the HS-F390 ensures precise and accurate cutting, with a separation speed adjustable from 300 to 500mm/second to cater to your specific requirements. Its versatility is further enhanced by its ability to handle components with a height of ≤32mm (customizable), making it suitable for a diverse range of PCB sizes.

Ideal for the electronics industry, particularly in PCB production, the HS-F390 is also a valuable asset for small-scale production, electronic repairs, and maintenance tasks. Its efficiency in separating large quantities of PCBs in a short time frame makes it an indispensable tool.

Operating with ease and simplicity in mind, the HSTECH HS-F390 is powered by 60W and offers multiple payment options including T/T, Western Union, and MoneyGram for your convenience. Packaged securely in a wooden case, the machine's compact dimensions (710x450x420mm or 900x450x420mm) ensure hassle-free storage and transportation.

In summary, the HSTECH HS-F390 PCB Depaneling Equipment is a top-quality printed wiring board splitter that excels in various application scenarios. Its efficiency, user-friendliness, and maintenance simplicity, coupled with negotiable pricing and flexible payment terms, make it the ideal choice for anyone seeking a reliable and high-performance PCB depaneling solution.

Support and Services:

The HSTECH HS-F390 PCB Depaneling Equipment is complemented by an extensive range of technical support and services, ensuring a seamless experience from purchase to long-term operation.

Comprehensive Documentation: Comprehensive user manuals and installation, operation, and maintenance documentation are provided to ensure hassle-free setup and maintenance. These resources guide users through every step, empowering them with the knowledge to fully utilize the equipment's capabilities.

Responsive Online Support: Our team offers prompt online technical support via email or phone, addressing any queries or concerns you may have. Whether it's a quick fix or in-depth troubleshooting, we're just a message or call away.

Personalized On-Site Assistance: For a more hands-on approach, we offer on-site technical support, covering installation, comprehensive training, and troubleshooting. Our experts will ensure that your HS-F390 is up and running smoothly, while empowering your team with the skills needed for efficient operation and maintenance.

Comprehensive Warranty Coverage: The product and its replacement parts are backed by a comprehensive warranty, providing peace of mind against manufacturing defects. In the unlikely event of any issues, we'll work swiftly to resolve them, ensuring minimal disruption to your operations.

Tailored Customization Services: Recognizing that every application is unique, we offer customization and modification services to meet your specific requirements. From minor adjustments to major reconfigurations, our team will collaborate with you to create a PCB depaneling solution that perfectly fits your needs.

Overall, the HSTECH HS-F390 PCB Depaneling Equipment, coupled with our extensive technical support and services, offers a complete and reliable solution for all your PCB depaneling needs.

Packing and Shipping:

The HSTECH HS-F390 PCB Depaneling Equipment boasts a comprehensive suite of technical support and services, ensuring a seamless journey from acquisition to long-lasting operational excellence.

Exhaustive Documentation Package: We provide exhaustive user manuals and detailed installation, operational, and maintenance guides to facilitate effortless setup and maintenance. These resources act as a step-by-step companion, arming users with the necessary knowledge to harness the full potential of the equipment.

Prompt Online Assistance: Our dedicated team stands ready to offer swift online technical support via email and phone, addressing all your inquiries and concerns promptly. From quick solutions to intricate troubleshooting, we're just a click or a dial away.

Customized On-Site Support: For a personalized touch, we offer on-site technical support encompassing installation, thorough training sessions, and comprehensive troubleshooting. Our experts ensure that your HS-F390 is operational at peak performance, while empowering your team with the expertise to maintain and operate the equipment efficiently.

Comprehensive Warranty Program: Rest assured with our comprehensive warranty coverage for the product and its replacement parts, safeguarding against manufacturing defects. In case of any unforeseen issues, we'll swiftly intervene to minimize disruptions and restore your operations seamlessly.

Flexible Customization Options: Acknowledging the uniqueness of every application, we specialize in customization and modification services tailored to your precise needs. From minor tweaks to extensive reconfigurations, we collaborate closely with you to craft a PCB depaneling solution that perfectly aligns with your requirements.

In conclusion, the HSTECH HS-F390 PCB Depaneling Equipment, coupled with our comprehensive technical support and services, presents a holistic and dependable solution that caters to all your PCB depaneling requirements.

FAQ:

Q: What is the brand name of the PCB Depaneling Equipment?

A: The brand name of the PCB Depaneling Equipment is HSTECH.

Q: What is the model number of the PCB Depaneling Equipment?

A: The model number of the PCB Depaneling Equipment is HS-F390.

Q: Is the PCB Depaneling Equipment certified?

A: Yes, the PCB Depaneling Equipment is CE certified.

Q: Where is the PCB Depaneling Equipment manufactured?

A: The PCB Depaneling Equipment is manufactured in China.

Q: What is the minimum order quantity for the PCB Depaneling Equipment?

A: The minimum order quantity for the PCB Depaneling Equipment is 1 set.

Q: What are the payment terms for purchasing the PCB Depaneling Equipment?

A: The payment terms for purchasing the PCB Depaneling Equipment are T/T, Western Union, and MoneyGram.

Q: What is the supply ability for the PCB Depaneling Equipment?

A: The supply ability for the PCB Depaneling Equipment is 200 sets per month.

Q: How long is the delivery time for the PCB Depaneling Equipment?

A: The delivery time for the PCB Depaneling Equipment is 10-15 work days.

Q: How is the PCB Depaneling Equipment packaged?

A: The PCB Depaneling Equipment is packaged in a wooden case.

Q: Is the price of the PCB Depaneling Equipment negotiable?

A: Yes, the price of the PCB Depaneling Equipment is negotiable.
