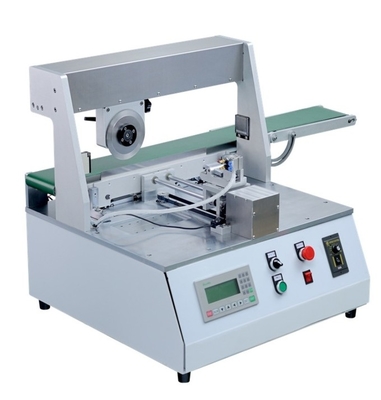

PLC Controlled Mini PCB Depaneling Equipment Max Separating Length 50-360mm for Production

Automatic Blade Moving Mini PCB Depaneling Equipment With PLC Control System

Introduction:

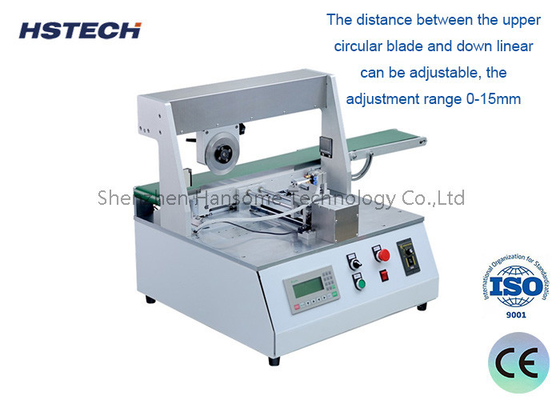

This automated PCB separation system boasts an incorporated automatic feeding mechanism. It employs an innovative pairing of an upper circular blade and a bottom linear blade. Throughout the depaneling process, the PCB remains firmly positioned as the circular blade rotates, efficiently performing the separation task.

Advantages:

The traditional PCB separator, reliant on manual handling, is inefficient & labor-intensive. But the revamped automatic PCB separator revolutionizes the game. Its microcomputer-controlled auto-feeding system adapts to diverse board sizes, integrating seamlessly with loaders. This cuts labor, boosts productivity, automates workflows, and maximizes output.

The main features are as follows:

1. Autonomous PCB Separation: From input to cutting to output, the machine autonomously completes the entire PCB separation cycle, ensuring uninterrupted automation.
2. High-Speed Cutting Performance: Equipped with high-speed CNC tools, it rapidly separates boards, achieving multiple cuts per minute for enhanced productivity.
3. Precision Cutting Accuracy: High-precision sensors and servo motor control ensure board separation within ±0.05mm, delivering impeccable cutting precision.
4. Automated Material Flow: Integrated silo and conveyor belt automate PCB board feeding and unloading, optimizing process efficiency.
5. Intelligent Control System: PLC-based, it programs custom separation schemes for various sizes and includes fault self-diagnosis for proactive maintenance.
6. User-Centric Design: The intuitive interface simplifies operation, while the compact structure facilitates easy maintenance, prolonging equipment lifespan.

Main features
Automated operation
The automated system enables rapid separation of PCBs, reduces manual operations, and improves production efficiency.

Precise cutting
The blade movement technology is used to accurately separate PCBs along the V-Cut gap to ensure cutting quality and integrity.

High efficiency
Able to process a large number of PCBs in a short time, suitable for large-scale production needs.

User-friendly interface
Equipped with an operation panel and display for easy monitoring and setting, the operation is simple and intuitive.

Safety design
Equipped with multiple safety protections to prevent accidental start-up or operation, ensuring the safety of operators.

Adjustable cutting parameters
Users can adjust the cutting depth and pressure according to the thickness and material of different PCBs.
