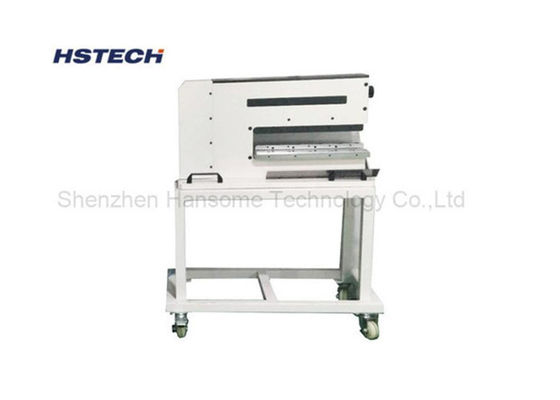

V-CUT PCB Depaneling Equipment with Adjustable Blade Height for Easy Operation
Introduction:
The HS-310 is a state-of-the-art machine, powered by a pneumatic drive and controlled electrically, featuring a sample design that incorporates sensor devices for minimal cutting stress during each operation. Ideal for precise separation of SMD PCBAs or thin plates, it ensures optimal performance and accuracy.
Specially designed for delicacy, our straight knife type separator machines meticulously separate pre-scored panel boards, eliminating bending or tension stress. This gentle process safeguards even the most sensitive SMD components, such as ceramic capacitors, from damage, thereby enhancing product quality and reliability.
Thanks to the innovative blade design, the machine safely separates boards with high components positioned close to the edges. Leveraging a proven separation method, it employs wedge-shaped knives that precisely cut within the groove, enabling the separation of boards as thin as 1 mm or less without inducing any cutting stress, ensuring safe and efficient processing.
Features:

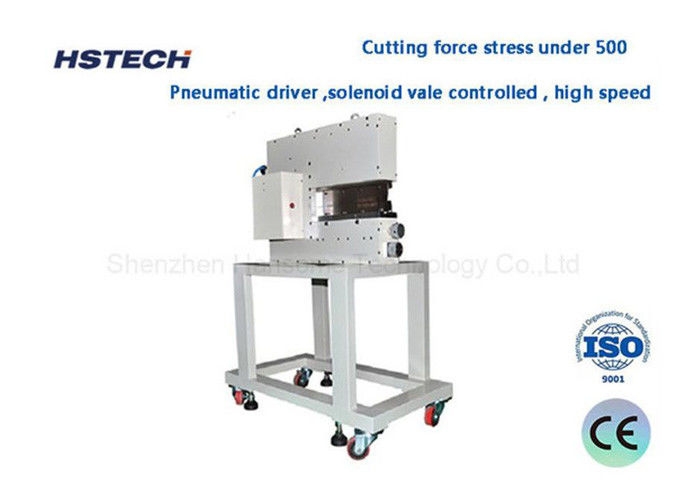

Ensuring precision and protection, the cutting force stress remains below 500, and the cutting process is devoid of vibration and noise, safeguarding delicate components from any potential damage.
Powered by a pneumatic driver with solenoid valve control, the machine delivers high-speed performance, ensuring efficient and rapid cutting operations.
Versatility meets precision: the upper and lower blade heights are fully adjustable. Simply adjust the knob located at the top of the machine to effortlessly set the gap for inserting the PCB board.
For enhanced ease of use, the lower blade height can be fine-tuned separately at the front and rear portions, eliminating the need for shims. This simplifies blade changes and adjustments, while the blade's resharpenability multiple times reduces maintenance costs.
Customizability meets precision: for PCBs or thin plates without v-grooves, we offer customized trays and positioning devices to ensure secure and stable cutting, preventing any unwanted movement during the process.
User-friendly design: both operation and maintenance of this machine can be comfortably performed even by unskilled personnel, thanks to its intuitive controls and accessible components.
Specification:
| Product name | PCB depanelizer |
| Model | HS-310L |
| Part-up height | Max 40mm |
| Part-down height | Max 20mm |
| Air supply | 5Kgf/cm |
| Output | 12.5tons(gross) |
| Efficient cutting length | 1-360mm |
| Linear blade size | 360*43.5*6mm |
| PCB thickness | 0.1mm~2.0mm(With v grove) 0.1mm ~1.0mm(Without V grove ) |
| Blade material | Import high quality high speed steel tool |
| Separating speed | 1-300mm/s |
| V-cut thickness | 0.3-3.5mm |
| Air consumption | 200-400(L/min) |
| Machine size | 700*325*400mm |
| Weight | 130kg |
| Suitable board | All V-cut boards |
Application Areas:
1. Electronics Manufacturing
SMT (Surface Mount Technology)
During the SMT production process, the depaneling machine is used to separate the circuit boards that have been patched and soldered for subsequent testing and packaging.
2. R&D and Prototyping
Sample Testing
In new product development, the depaneling machine helps to quickly separate samples for testing and evaluation.
3. Small batch production
Flexible production
Suitable for the needs of small batch production, the depaneling machine can adjust the cutting parameters according to different requirements to improve production flexibility.
4. Repair and Service
Circuit board maintenance
During the repair process, the depaneling machine can separate the damaged part of the circuit board for replacement and repair.
