Introduction

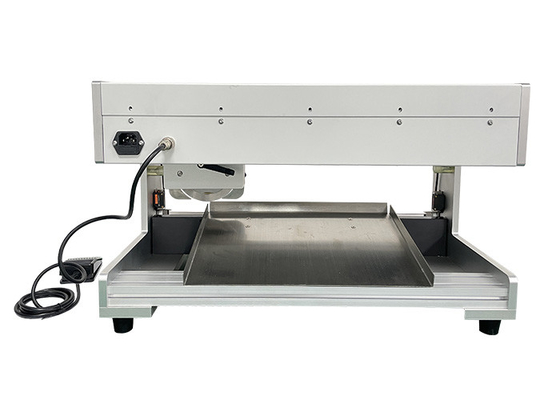

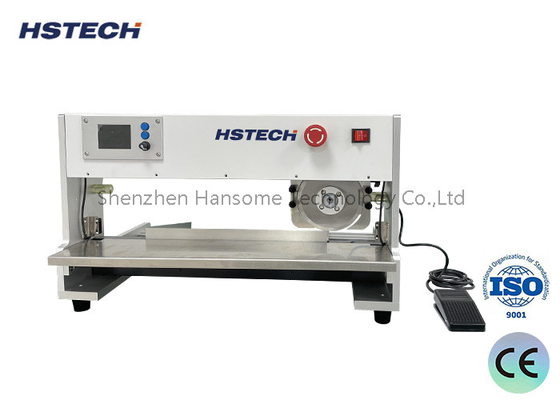

This machine(HS-300) is the blade moving PCB separator, using upper circular and down linear blade design,before cutting, put the v-groove onto the linear blade,the upper circular blade moving to finish spearating, the force stress is relative low, the board don't need move will protect the components on the board, avoid damaging.

The Blade Moving PCB Separator is a specialized machine designed for the efficient and precise separation of individual Printed Circuit Boards (PCBs) from a larger panel. This equipment is essential in the electronics manufacturing industry, where PCBs are often produced in panels to optimize production efficiency and later separated into individual units. The Blade Moving PCB Separator ensures clean, accurate, and safe separation, minimizing damage to the boards and improving overall productivity.


Key Features
Blade Mechanism:
Utilizes a sharp blade that moves to cut through the PCB material, providing precise separation with minimal damage to the boards.
Adjustable Cutting Depth:
Allows operators to set the blade depth according to the thickness of the PCB panel being processed.
Automatic or Manual Operation:
Can be designed for either manual operation or fully automated processes, enhancing flexibility in production.
Safety Features:
Equipped with safety guards and emergency stop functions to protect operators during operation.
Compact Design:
Often designed to fit in limited workspace, making it suitable for various manufacturing environments.
Benefits
Efficiency:
Significantly speeds up the separation process compared to manual methods, improving overall production efficiency.
Precision:
Provides clean cuts, reducing the risk of damaging the PCBs or affecting their electrical performance.
Cost-Effective:
Reduces labor costs and minimizes material waste, making it a cost-effective solution for PCB production.
Versatility:
Suitable for various types of PCBs, including those with different sizes and thicknesses.



Features

Specification





PCB splitting equipment is mainly used in the following fields:

Electronic product manufacturing:
Used to split multi-layer PCBs of mobile phones, tablets, electronic devices and other products.
It can accurately control the size and position of the split board to improve the product qualification rate.
Industrial automation:
Applied to the splitting of circuit boards for industrial control equipment, instruments and other products.
Improve the automation level of production lines and shorten production cycles.
Consumer electronics:
Widely used for PCB splitting of consumer electronics products such as laptops and digital cameras.
Ensure the quality of splitting and reduce the rework rate.
Medical electronics:
Applicable to the splitting of circuit boards with high precision requirements for medical equipment, diagnostic instruments, etc.
Ensure that the splitting process will not cause circuit damage.
Aerospace field:
Applied to PCB splitting with extremely high reliability requirements in fields such as avionics and aerospace equipment.
Ensure the consistency and stability of the splitting.

Applications
Electronics Manufacturing:
Commonly used in PCB assembly lines to separate PCBs after the fabrication process.
Prototype Development:
Useful in R&D settings for separating prototype boards from panels.
Repair and Maintenance:
Employed in repair shops to prepare PCBs for testing and servicing.

Why Choose a Blade Moving PCB Separator?
The Blade Moving PCB Separator is an indispensable tool for electronics manufacturers seeking to optimize their production processes. By combining precision, efficiency, and safety, this machine ensures that PCBs are separated cleanly and accurately, reducing waste and improving overall product quality. Whether you're working on high-volume production or small-batch prototyping, the Blade Moving PCB Separator is a reliable and cost-effective solution.
