| Brand Name: | JUKI |

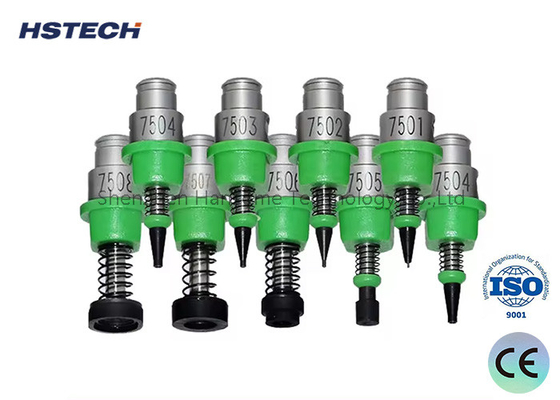

| Model Number: | 7501 7502 7503 7504 |
| MOQ: | 1 PC |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs per month |
①Simple structure in linear type ,easy in installation and maintation.
② Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
③High pressure double crank to control the die opening and closing.
④ Running in a high automatization and intellectualization,no pollution
⑤ Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Available in a variety of sizes
JUKI RS-1 provides nozzles of different sizes from 0.12mm to 16mm to meet the placement needs of components of various specifications.
High-precision positioning
The nozzle adopts an advanced visual positioning system to achieve an ultra-high placement accuracy of ±0.02mm.
Strong suction
Equipped with a high-power vacuum system, the maximum suction force reaches 0.5kg, which can stably pick up various components.
Durable material
The nozzle is made of wear-resistant ceramic and stainless steel materials and has excellent durability.
Automatic identification
The nozzle can be automatically identified by barcode or RFID without manual parameter setting.
Quick changeover
The nozzle can be installed and removed very conveniently and quickly, and can be quickly switched according to production needs.
Easy to clean
The nozzle has a smooth surface and is easy to clean and maintain, which helps to maintain long-term placement accuracy.
Integrated design
The nozzle is perfectly integrated with the whole machine, and the operation is simple and reliable.
SMT (Surface Mount Technology) nozzle is an important tool used in automated placement equipment for electronic components, used to pick up and place small electronic components. There are many types of SMT nozzles according to different needs, common ones include:
| Round nozzle | The round nozzle is the most common type, suitable for picking up and placing round electronic components, such as chip resistors, capacitors, etc. |
| Rectangular nozzle | The rectangular nozzle is suitable for picking up and placing rectangular electronic components, such as IC chips, diodes, etc. |
| Needle nozzle | Needle nozzle is suitable for picking up and placing elongated electronic components, such as inductors, crystal oscillators, etc. |
| V-shaped nozzle | V-shaped nozzle is suitable for picking up and placing special-shaped electronic components, such as LED lamp beads, optocouplers, etc |
In addition, there are some special types of nozzles, such as rotating nozzles, elbow nozzles, etc., which can be selected and used according to specific placement requirements. It should be noted that different nozzles are suitable for electronic components of different sizes and shapes. Choosing the appropriate nozzle type is very important for the efficiency and quality of placement work.
