High Precision 6 Axis Suction Type Feeding Screw Locking Machine With Shinano Motor

Name

High Precision 6 Axis Suction Type Feeding Screw Locking Machine With Shinano Motor

Brand Name:	HSTECH
Model Number:	HS-DH6331
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE

Product Name:

Screw Locking Machine

Feeding:

Suction Feeding

Axis:

6 Axis

Screws Compatible:

M1-M6, Or Customized

Moving Range:

500*300*300*100mm

Material:

Main Aluminum

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Highlight:

Shinano Motor Screw Locking Machine

,

6 Axis Screw Locking Machine

,

High Precision Screw Locking Machine

Product Description

High Precision 6 Axis Suction Type Feeding Screw Locking Machine with Shinano Motor

Introduction:

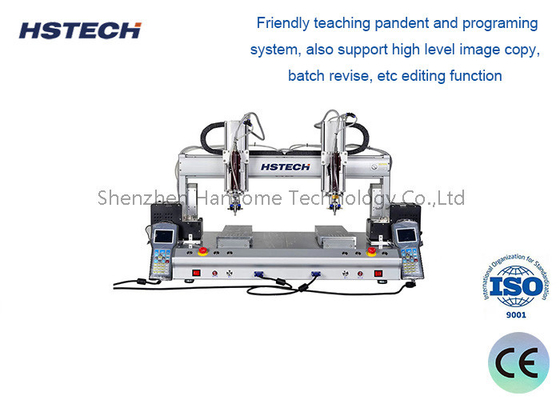

The screw machine is a dual screw driver, dual platform, and suction screw feeder automatic screw locking machine, it use touch scrren and manual moving the screw head to do the location, its a much easy programming type, save much programming time. Its a new type screw locking machine which can replace the traditional manual teaching pandent programming machine, it's widely used in the electronics industry. Compatible for screws from M1 to M6, other special screws, also can be customization.

Specification:

Model	HS-DH6331
Production name	Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z)	600300300100100mm
X/Y1/Y2 axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M6
Machine dimension8	880585800mm
Machine weight	120kg

Main parts brand

1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell

Features

1, Suction type feeding, with single screw feeder and single locking head.
2, Desktop and visible operation, can connect the automatic production line.
3, 6 Axis operation, moving range 600*300*300*100*100mm.
4, Support multiple screw bins in suction mode.

5, Double working station, improve the production efficiency and reduce labor cost.
6, Easy adaptability for M1-M6, just by changing screw guider(Customization available).

7, Easy operation, operator can operate several machines at the same time.

8,The machine can store hundreds of processing files, each file can support 1000 screw bits, you can call it out when you use it.

Automated process
The equipment adopts the automated process of motor drive and sensor control, which can realize fast and efficient screw locking operation.

Multiple locking methods
Supports multiple locking methods, such as riveting, welding, gluing, etc., which can be selected according to different materials and application scenarios.

High-precision positioning
Equipped with a precise positioning system, it can accurately identify and locate the position of the screws to be locked.

Flexible design
It can be flexibly adjusted according to different product sizes and types to meet various production needs.

Safe and reliable
The equipment adopts a safety protection design, which can effectively avoid personal injury during operation. At the same time, it has stable and reliable performance.

Easy to operate
Equipped with a user-friendly operation interface and automated procedures, it is very simple to use and maintain.

Efficient energy saving
Adopting advanced motor control technology, it can greatly improve energy utilization efficiency and has low power consumption characteristics.

Touch Screen Control Dual Head Suction Screw Feeder Auto Screw Machine 0

High Precision 6 Axis Suction Type Feeding Screw Locking Machine With Shinano Motor 1

High Precision 6 Axis Suction Type Feeding Screw Locking Machine With Shinano Motor 2

High Precision 6 Axis Suction Type Feeding Screw Locking Machine With Shinano Motor 3
