| Brand Name: | HSTECH |
| Model Number: | HS-800 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 pcs per month |

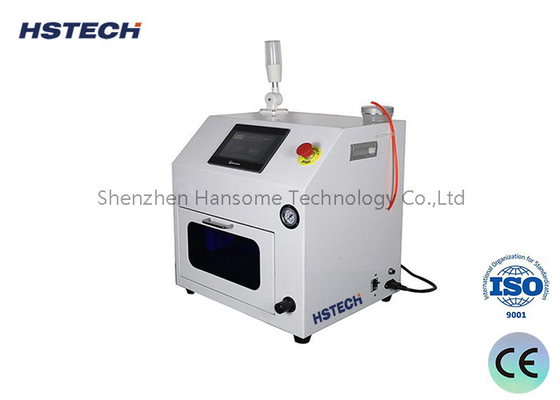

High Speed SMT Cleaning Equipment for SMT Nozzle Cleaning with PLC and Touch Screen Control
Introduce
SMT (Surface Mount Technology) Nozzle Cleaner is a device specifically designed to clean nozzles used in surface mount technology. In electronics manufacturing, SMT nozzles are used to accurately apply solder paste or adhesive to printed circuit boards (PCBs), so keeping the nozzles clean and in good condition is critical to production quality.
Features and Functions:
Efficient cleaning
Can quickly and effectively remove solder residues and other impurities on the nozzle to maintain the cleanliness of the nozzle.
Automated operation
Some models can achieve automated cleaning, reduce manual intervention and improve operating efficiency.
Multiple cleaning modes
Support multiple cleaning methods, such as air blowing, brushing and ultrasonic cleaning, to meet different cleaning needs.
User-friendly interface
Simple operation, usually equipped with a display and adjustable parameters for user convenience.
Improve production efficiency
By regularly cleaning the nozzle, reduce the failure rate and reduce downtime, thereby improving production efficiency.
Application scenario:
Electronic manufacturing
On the SMT production line, the nozzle needs to be cleaned regularly to ensure the accuracy and consistency of the mounted components.
Maintenance and maintenance
Used to maintain and maintain equipment and extend the service life of the nozzle and related equipment.
Small batch production
Particularly suitable for small batch or multi-variety production, it can clean the nozzle frequently as needed.
Cleaning Principle
High-pressure jet technology: A, fine water mist particles, continuous pressure to reduce water, resulting in 3-10um particles of water mist to clean the dirt into the inner wall of the small nozzle aperture.
Pulsed power: B, Sound velocity (V=360m/s) forms a powerful pulsed power injection onto the nozzle, which can reach 30 pulse frequency per second, forming a continuous impact force above the nozzle to be cleaned. Smash the surface and internal dirt for cleaning purposes.
Specification
| Model | HS-800 |
| Voltage | Single phase, AC110-220V, 50H60Hz |
| Air pressure | 0.5~0.6Mpa |
| Air source | Pure compressor air |
| Control mode | PLC+Touch Screen |
| Jet pressure | ≤0.4MPa |
| Air wastage | Under 280NL/min |
| Water source | D.I water |
| Water storage | 800cc |
| Water consumption | 300cc/hrs |
| Admission pipe/Drainpipe | φ8/φ6 |
| Nozzle tray | Default 30 nozzles |
| Nozzle size | 01005, 0201-2512inch |
| Noise | 35-60dB |

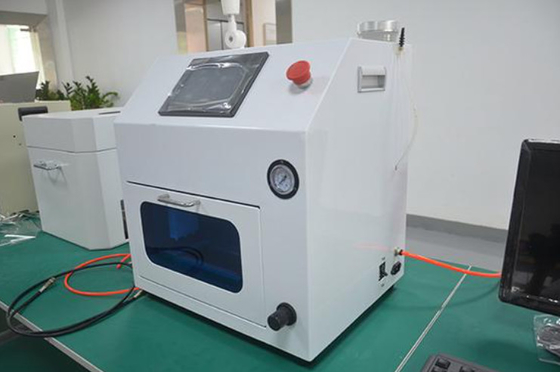

Product Features
1, Elegant appearance, high precision 304 stainless steel machine body.
Machine size
Nozzle Tray
