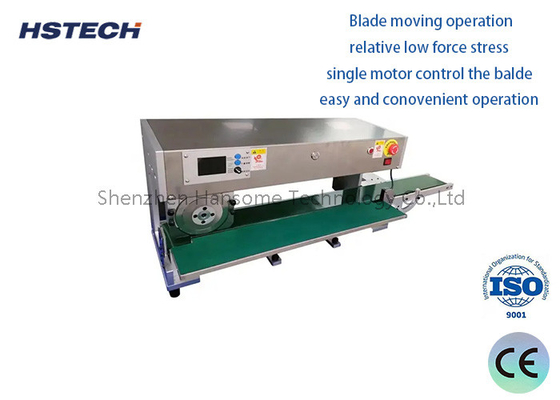

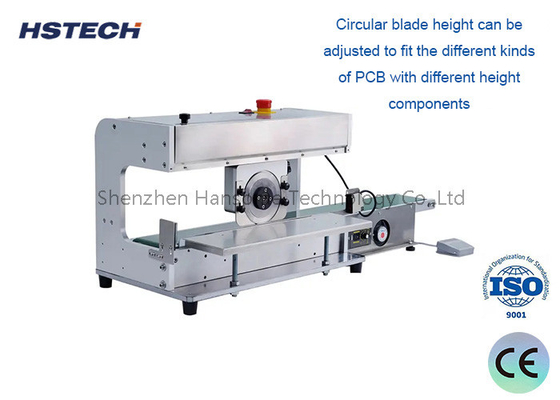

Pneumatic V-Cut Pneumatic PCB Depaneling Machine Linear Guillotine For FR4 Pcb Board
Introduction
This machine is pneumatically driven and electric control, built in 6 digits counter which is convenient for counting the cuts.
The linear knife type depaneling machines were designed to depanel prescored panelboards carefully, without bending or tension stress.Even sensitive SMD-components like ceramic capacitors will not be damaged by the depaneling process.
It suitable for all kinds of pcb board,LED aluminum board,COB board, cooper board,etc. It’s widely used, low cutting force stress, few cutting burrs,and the board side is smooth and flat, it’s a best choice for high quality board cutting.
Features:
1.New type improved wireless sectional cutting technology is applied by this machine to handle operations for V-cut connecting plate and split board and effectively remove stress.
2.Easily adjust the blade gap, even highly sensitive SMD parts or ultrathin PC plate can be cut safely.
3. Activated parts driven is applied with no noise.
4.Thickness of the to-be-cut base plate: 0.5-2.0mm, max. length of 300mm PC plate.
5. Processing V-PCD plate, aluminum plate and CUT plate, etc
6. Controlled by electric pedal or pneumatic pedal, hoe knife plate splitting is completed by the motion of air cylinder.
Main functions are as follows:
Pneumatic drive
Powered by a pneumatic system, it provides strong and stable cutting force, ensuring an efficient and smooth cutting process.
High-precision cutting
The design provides a precise cutting path, enabling detailed segmentation along the V-Cut gap or other preset paths to reduce PCB damage.
Easy to operate
Usually equipped with a user-friendly interface, allowing operators to set and adjust cutting parameters.
Safety protection
Equipped with multiple safety mechanisms, including an emergency stop button and a safety shield, to ensure operator safety.
Adaptable
Able to handle various types and thicknesses of PCBs, suitable for different production needs.
Specification
| Model | HS-310 |
| Power | 10W |
| Air supply | 0.5~0.8Mpa |
| Efficient cutting length | 1-360mm |
| Linear blade size | 360*43.5*6mm |
| Blade material | Import high quality high speed steel tool |
| Separating speed | 1-300mm/s |
| V-cut thickness | 0.3-3.5mm |
| Air consumption | 200-400(L/min) |
| Machine size | 700*325*400mm |
| Weight | 130kg |
| Suitable board | All V-cut board |
Application:
1. Electronics Manufacturing
SMT (Surface Mount Technology)
During the SMT production process, the depaneling machine is used to separate the circuit boards that have been patched and soldered for subsequent testing and packaging.
2. R&D and Prototyping
Sample Testing
In new product development, the depaneling machine helps to quickly separate samples for testing and evaluation.
3. Small batch production
Flexible production
Suitable for the needs of small batch production, the depaneling machine can adjust the cutting parameters according to different requirements to improve production flexibility.
4. Repair and Service
Circuit board maintenance
During the repair process, the depaneling machine can separate the damaged part of the circuit board for replacement and repair.
