Automatic Blade Moving Mini PCB Depaneling Equipment With PLC Control System

Automatic Blade Moving Mini PCB Depaneling Equipment With PLC Control System

Introduction:

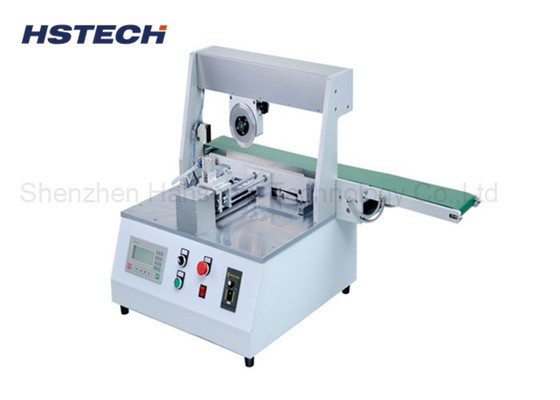

This machine is a automatic PCB separating machine, it equipped with the automatic board feeding system, adopt the upper circular blade and bottom linear blade combination, during the separating, the PCB will keep fixed, and the circular will moving to finish the depaneling process.

Advantages:

The traditional blade moving PCB separating machine requires manual placement, positioning, time-consuming and labor-intensive, and the production efficiency is low.

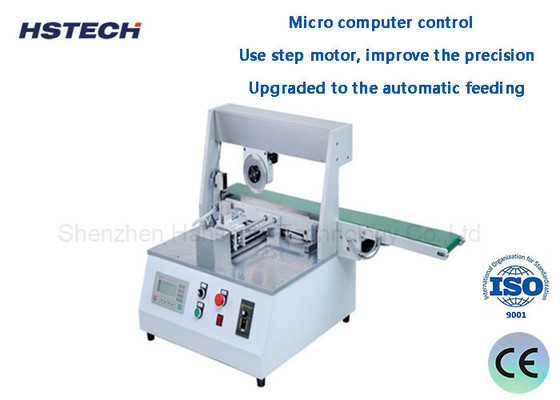

This device has been upgraded to the automatic feeding, which is controlled by microcomputer and can customized the moving distance based on the size of the PCB boards. Without manual positioning, it also can connect to the board loading machine, saving labor, improving board separation efficiency and higher degree of automation.

The main features are as follows:

1.Fully automatic operation: no human intervention is required, the entire board separation process is automatically completed by the machine, from board input to cutting, board output and other processes.

2.High-speed cutting: using high-speed CNC cutting tools, the board separation speed is fast, and the cutting efficiency can reach several pieces per minute.

3.High-precision positioning: using high-precision photoelectric sensors and servo motor control, the board separation accuracy of ±0.05mm can be achieved.

4.Automatic material tilting: through the automatic silo and conveyor belt, the PCB board can be automatically fed in and unloaded.

5.Intelligent control: using PLC control system, different sizes of board separation schemes can be programmed. And it has fault self-diagnosis function.

6.Easy to operate and maintain: the interface is humanized and the operation is simple. The equipment has a compact structure and is easy to maintain.

Main features
Automated operation
The automated system enables rapid separation of PCBs, reduces manual operations, and improves production efficiency.

Precise cutting
The blade movement technology is used to accurately separate PCBs along the V-Cut gap to ensure cutting quality and integrity.

High efficiency
Able to process a large number of PCBs in a short time, suitable for large-scale production needs.

User-friendly interface
Equipped with an operation panel and display for easy monitoring and setting, the operation is simple and intuitive.

Safety design
Equipped with multiple safety protections to prevent accidental start-up or operation, ensuring the safety of operators.

Adjustable cutting parameters
Users can adjust the cutting depth and pressure according to the thickness and material of different PCBs.
