High Precision PCB Depaneling Equipment with Mobile Blade Mechanism
Introduce
Blade Moving PCB Separators is a device for cutting and separating printing circuit boards (PCB). It uses a division of mobile blade.
working principle:
The device uses one or more mobile blade to cut on the PCB surface along the scheduled segmentation line.
The blade can move horizontally or vertically, and accurately cuts along the segmentation line on the PCB board.
The cutting process uses mechanical drive, such as pneumatic or electric push rods, which can provide sufficient cutting power.
High-precision separation
Using blade movement technology, precise cutting along the V-Cut line ensures the integrity of the circuit board.
High efficiency
Quickly process multiple PCBs, suitable for batch production, helping to improve production efficiency.
Easy to operate
Humanized design and friendly operation interface are convenient for users of various technical levels.
Adjustability
The cutting depth and pressure are adjustable to adapt to PCBs of different thicknesses and materials.
Safety
Equipped with safety protection devices to ensure the safety of operators.
Main component:
Mobile blade mechanism: Including blades, driving motors/cylinders, etc.
Positioning/guide system: Use optical sensors to achieve PCB positioning and guidance.
Entry and exit institutions: Automated equipment such as conveyor belts, robots.
Program control system: PLC or embedded controller to achieve fully automated operations.
Safety protection device: such as grating sensor, emergency stop switch, etc.
Features
1, This machine can use for cutting all kinds of boards with v-slot.
2, Durable blade design, balde can be shaped at least twice.
3, Circular blade height can be adjusted to fit the different kinds of PCB with different height components.

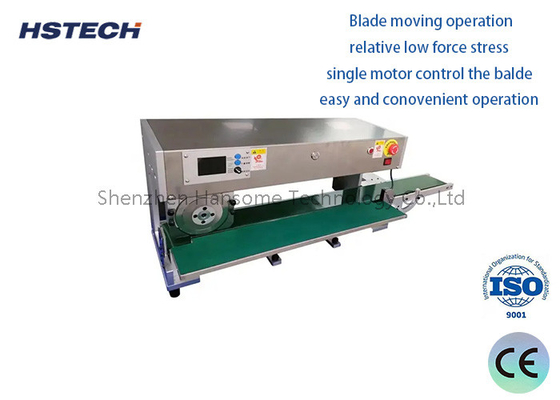

4, Blade moving operation,relative low force stress,single motor control the balde, easy and conovenient operation.

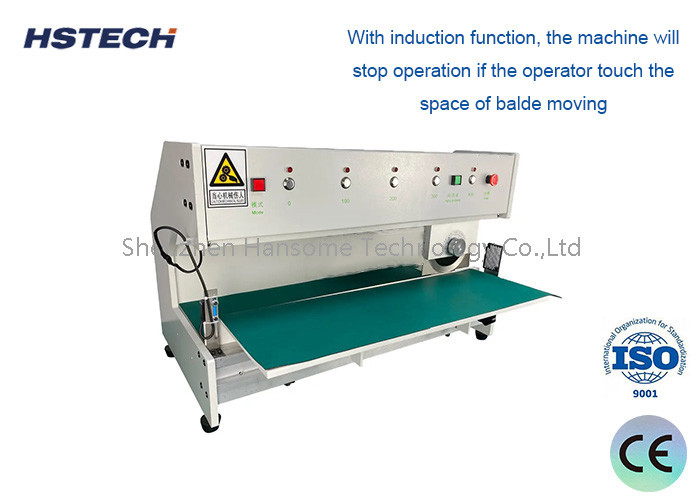

5, With induction function, the machine will stop operation if the operator touch the space of balde moving.
6, Security, with double protective device,no need worry about the security production problem.
7, Durable, using high quality good material blade.
Specification
| Model | HS-300 | |||
| Voltage | 110V/220V(optional) | |||
| Power | 100W | |||
| Efficient cutting length | 5-360mm | |||
| Blade size | Circular blade φ125*3mm, Linear blade 360*45*6mm | |||
| Blade material | Import high quality high speed steel tool | |||
| Separating speed | 300mm/s | |||
| V-cut thickness | 1/3 of the board | |||
| Separating width | Best 1-200mm | |||
| Machine size | 620*320*450mm | |||
| Weight | 50kg | |||
Application fields:
Electronic manufacturing industry:
Used to split printed circuit boards (PCBs).
Can accurately split PCBs of various sizes and types.
Widely used in consumer electronics, industrial electronics and other fields.
Solar cell manufacturing:
Used to split solar panels.
Can accurately cut silicon-based solar cells.
Improved the production efficiency of solar products.
Glass processing field:
Used to cut various glass products, such as mobile phone screens, glass panels, etc.
Can achieve precise splitting and reduce losses.
Ceramic industry:
Used to split ceramic chips, ceramic substrates and other workpieces.
Meet the requirements of high precision and high production efficiency.
Other industries:
Can be used to split materials such as plastics and metals.
Widely used in automated production in various manufacturing industries.
