Double Workstation Screw Fastening Machine with Single Screwdriver

Name

Double Workstation Screw Fastening Machine with Single Screwdriver

Brand Name:	HSTECH
Model Number:	HS-SL5331
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE

Product Name:

4Axis Screw Fastening Machine

Feeding:

Suction Feeding

Screw Feeder:

Single, Or Customized Two

Screws Compatible:

M1-M6, Or Customized

Moving Range:

500*300*300*100mm

Material:

Aluminum

Port:

Shenzhen

Warranty:

One Year

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Product Description

4 Axis Chain Moving Closed Loop Automatic Screw Bits Fastening Machine

Introduction

This adaptable 4-axis screw-driving machine, tailored for diverse industries encompassing smartphones, personal computers, electronics, and furniture manufacturing, showcases a dual workstation design, equipped with a solitary screwdriver and a single feeder. Integrating a seamless feeding and screw-locking mechanism, it expertly arranges screws in orderly rows, thereby significantly boosting overall production efficiency.

Features

Compact & Versatile Integration: Efficiently blends into various production lines, maximizing space and simplifying tool exchanges for continuous workflow.
Smart Quality Control: Intelligently detects and alerts for missing fasteners or loose screws, guaranteeing top-notch quality every time.
Dual Y-Axis Productivity Boost: Doubles component loading efficiency through alternating processes, significantly enhancing overall throughput.
Precise 4-Axis Capability: A versatile 500x300x300x100mm workspace facilitates intricate, high-precision machining tasks.
User-Friendly Automation: Seamlessly blends advanced automation with intuitive controls, enabling operators to effortlessly manage and optimize production.
Flexible Programming Options: A touchscreen interface and teach pendant provide customized setup flexibility, boosting machine versatility.
Simplified Multi-Machine Oversight: Centralized management of multiple machines simplifies complex operations, streamlining maintenance and monitoring.
Advanced Leak Prevention: Proactively identifies and mitigates missing screw issues, maintaining product integrity and minimizing production interruptions.

Specification

Model	HS-SL5331
Production name	4Axis Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z)	500300300*100mm
X/Y1/Y2 axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M6
Machine dimension	746585800mm
Machine weight	65kg

Main parts brand

1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell

About Product

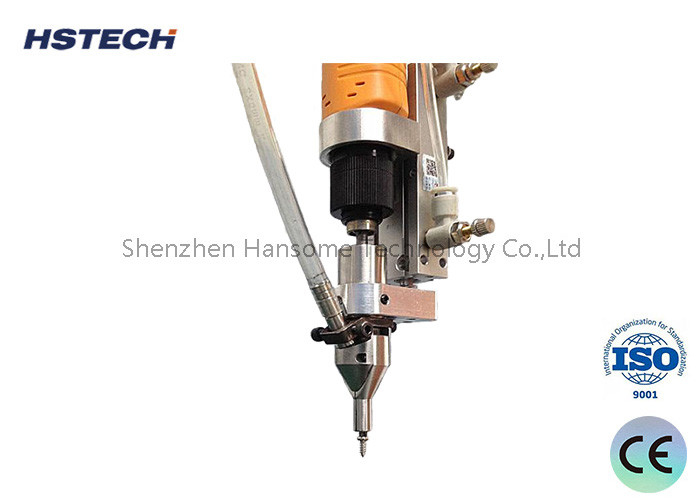

Double Workstation Screw Fastening Machine with Single Screwdriver 0

About Details

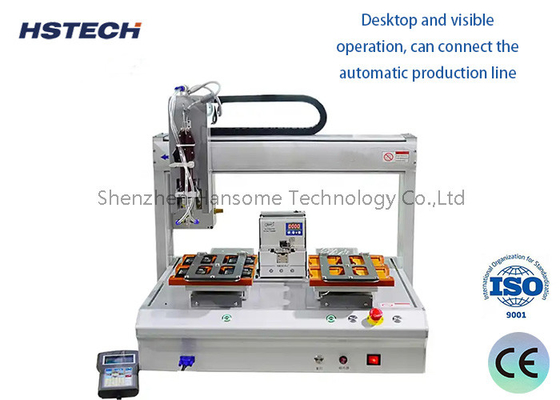

Double Workstation Screw Fastening Machine with Single Screwdriver 1

About Packaging

Double Workstation Screw Fastening Machine with Single Screwdriver 3

Double Workstation Screw Fastening Machine with Single Screwdriver 4

Double Workstation Screw Fastening Machine with Single Screwdriver 5

About Transport

Double Workstation Screw Fastening Machine with Single Screwdriver 6
