High Precision Screw Fastening Machine For Automated Screw Assembly With Complex Positioning

High Precision Screw Fastening Machine For Automated Screw Assembly With Complex Positioning

Brand Name:	HSTECH
Model Number:	HS-DH6331
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Screw Locking Machine

Feeding:

Suction Feeding

Axis:

6 Axis

Screws Compatible:

M1-M6, Or Customized

Moving Range:

500*300*300*100mm

Material:

Main Aluminum

Port:

Shenzhen

Oem:

Yes

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Product Description

High Precision Screw Fastening Machine for Automated Screw Assembly with Complex Positioning

Products Description

Screw Locking Machine:

The screw machine is a dual screw driver, dual platform, and suction screw feeder automatic screw locking machine, it use touch scrren and manual moving the screw head to do the location, its a much easy programming type, save much programming time.

Its a new type screw locking machine which can replace the traditional manual teaching pandent programming machine, it's widely used in the electronics industry.

Compatible for screws from M1 to M6, other special screws, also can be customization.

Features

1, Suction type feeding, with single screw feeder and single locking head.
2, Desktop and visible operation, can connect the automatic production line.
3, 6 Axis operation, moving range 600*300*300*100*100mm.
4, Support multiple screw bins in suction mode.

5, Double working station, improve the production efficiency and reduce labor cost.
6, Easy adaptability for M1-M6, just by changing screw guider(Customization available).

7, Easy operation, operator can operate several machines at the same time.

8,The machine can store hundreds of processing files, each file can support 1000 screw bits, you can call it out when you use it.

Functions and applications:
Used in automated screw assembly scenarios that require high precision and complex spatial positioning.
It can achieve coordinated movement of 3 linear axes and 3 rotary axes to flexibly position screws.
It is widely used in complex product assembly in the automotive, electronics, home appliances and other industries.

Mechanical structure:
6 independently controllable joints, including 3 linear axes and 3 rotary axes.
It is driven by a servo motor and equipped with a high-precision encoder to achieve precise positioning.
A screwdriver head is installed at the end of the robotic arm to achieve high-precision tightening of screws through precision control.
Equipped with an automatic screw supply device to complete the entire screw assembly process.

Control system:
Industrial-grade PLC or motion controller is used for centralized control and program programming.
It can realize 3D spatial trajectory planning to ensure smooth and collision-free movement of the robotic arm.
Equipped with a human-machine interface, it can realize the design, storage and call of operating programs.
It has real-time monitoring and feedback in multiple dimensions such as torque, position, and speed.

Performance characteristics:
6 degrees of freedom, which can realize a variety of complex spatial postures for screw assembly.
High repeatability, usually within ±0.1mm.
High working efficiency, up to 80-120 times/minute screw assembly speed.
Suitable for screws of different sizes and materials, strong compatibility.
High degree of automation, greatly improving production efficiency and product quality.

Specification

Model	HS-DH6331
Production name	Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z)	600300300100100mm
X/Y1/Y2 axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M6
Machine dimension8	880585800mm
Machine weight	120kg

Main parts brand

1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell

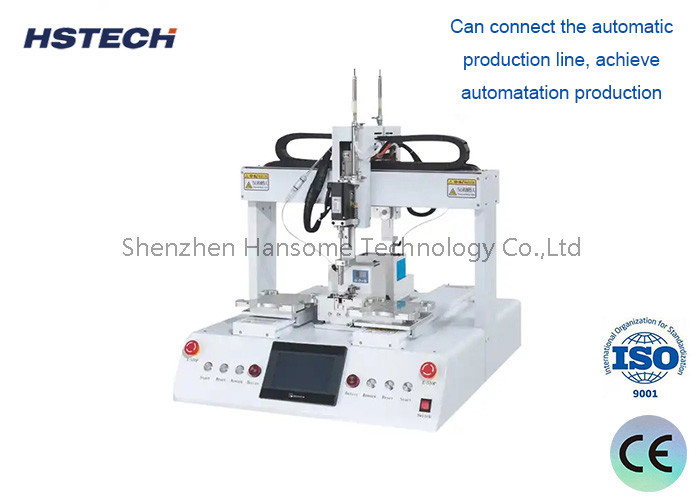

High Precision Screw Fastening Machine For Automated Screw Assembly With Complex Positioning 0

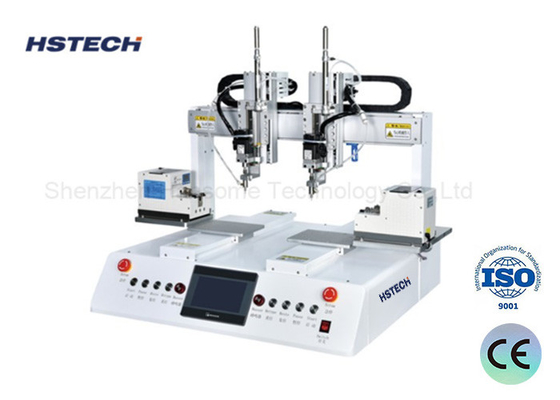

Touch Screen Control Dual Head Suction Screw Feeder Auto Screw Locking Machine HS-DH6331 0

Packing & Delivery

Item	Screw Locking Machine
Package	1 set into one wooden carton as safety condition
External Dimension	8800585800mm
Weight	about 120kgs
Delivery	about 15-20 working days
Payment	D/P, T/T, Western Union, MoneyGram
Port	Shenzhen
Shipment	A.By Courier: 4-7 Working days by special offer
	B.By Air: 7 Working days at appointed airport
	C.By Sea: 20-25 Working days at appointed port
