Versatile 4 Axis Screw Fastening Machine for Customizable Feeding System

Versatile 4 Axis Screw Fastening Machine for Customizable Feeding System

Brand Name:	HSTECH
Model Number:	HS-SL5331
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

4Axis Automatic Screw Locking Machine

Feeding:

Suction Feeding

Axis:

4axis

Screws Compatible:

M1-M6, Or Customized

Moving Range:

500*300*300*100mm

Port:

Shenzhen

Oem:

Yes

Warranty:

1 Year

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Product Description

High Precision 4 Axis Screw Fastening Machine for M1-M6 Screws Single Feeder

Introduction

The screw machine represents an advanced automated system, integrating a sophisticated four-axis motion control, a dual-station work design, and a single-source feeder. The machine's core comprises a precision feeding system and a robust locking mechanism. The feeding component, designed for optimal efficiency, aligns screws in a sequential fashion, ensuring seamless and rapid processing. This versatile screw-locking automation tool is ubiquitous in the electronics sector, catering to screws of sizes M1 to M6, with the flexibility to be tailored for unique screw types, further expanding its applicability.

Features

1.Customizable suction feeding system with single/double feeder options for versatile production needs.
2.High-quality electric screwdriver ensures precise Z-axis movement for accurate tightening.
3.4-axis operation in a 500x300x300mm workspace for efficient screw-locking.
4.Dual workstations boost productivity with continuous loading, minimizing downtime.
5.Accurate torque control & easy adjustments for consistent screw tightening quality.
6.Adapts to M1-M6 screws with switchable guides; custom options for specialized screws.
7.Integrated leak detection auto-refills or alerts for seamless operation & error reduction.
8.Comprehensive file storage holds hundreds of files, each with 1000 screw entries for quick setup.

Specification

Model	HS-SL5331
Production name	4Axis Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z)	500300300*100mm
X/Y1/Y2 axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M6
Machine dimension	746585800mm
Machine weight	65kg

Main parts brand

1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell

About Product

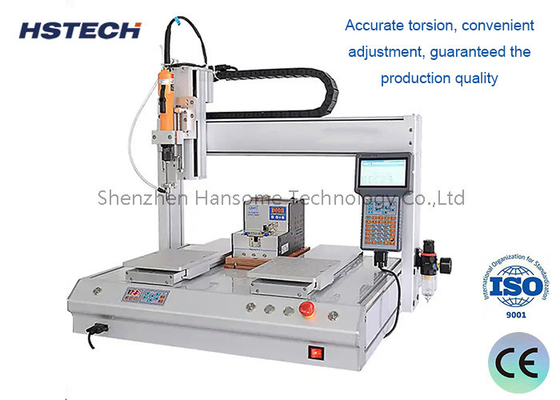

Versatile 4 Axis Screw Fastening Machine for Customizable Feeding System 0

About Detail

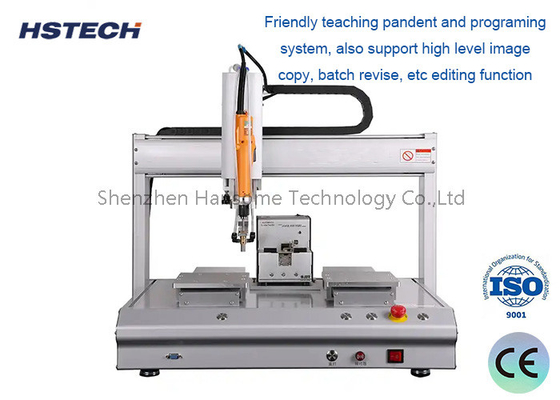

Versatile 4 Axis Screw Fastening Machine for Customizable Feeding System 1

About Packaging

About Transport

Versatile 4 Axis Screw Fastening Machine for Customizable Feeding System 5
