High Precision Screw Fastening Machine for M1-M6 Screws with Single Feeder System

High Precision Screw Fastening Machine for M1-M6 Screws with Single Feeder System

Brand Name:	HSTECH
Model Number:	HS-SL5331
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

4Axis Automatic Screw Locking Machine

Feeding:

Suction Feeding

Axis:

4axis

Screws Compatible:

M1-M6, Or Customized

Moving Range:

500*300*300*100mm

Port:

Shenzhen

Oem:

Yes

Warranty:

1 Year

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Product Description

High Precision 4 Axis Screw Fastening Machine for M1-M6 Screws Single Feeder

Introduction

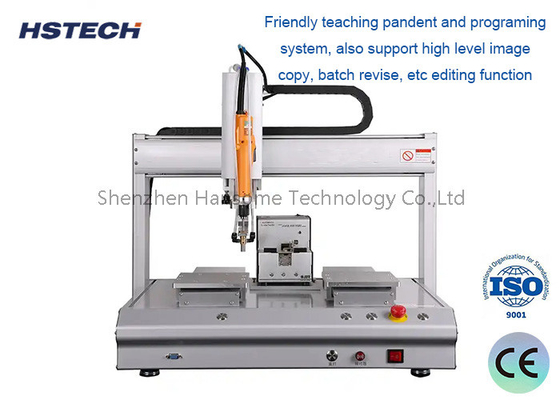

The screw machine is an automated equipment featuring a four-axis motion system, a dual workstation design, and a single feeder. The entire machine comprises a feeding system and a locking mechanism. The feeding component, tasked with arranging screws, employs a relatively straightforward arrangement where screws are lined up sequentially to enhance operational efficiency. This screw-locking machine is a versatile automation tool widely adopted in the electronics industry, compatible with screws ranging from M1 to M6, and can also be customized to accommodate other specialized screws.

Features

1.The suction feeding system offers customization with options for either a single or double screw feeder, providing flexibility to meet diverse production needs.

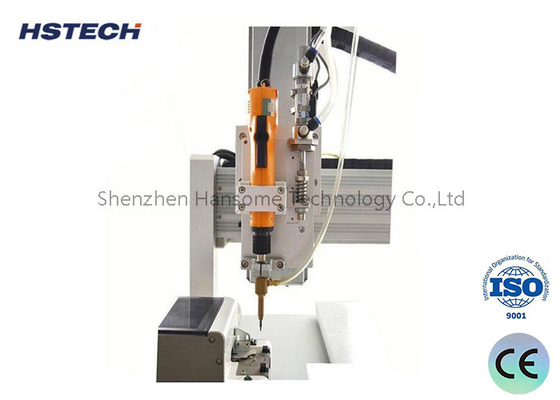

2.Equipped with a high-quality electric screwdriver, the machine ensures precise Z-axis movement for accurate screw tightening.
3.Boasting a 4-axis operation within a 500x300x300mm work area, it offers ample space for efficient and versatile screw-locking tasks.
4.Dual workstations enhance productivity by enabling continuous product loading, minimizing downtime and maximizing throughput.
5.Accurate torque control, coupled with easy adjustment capabilities, guarantees consistent quality in every screw tightening process.
6.Effortlessly adaptable to M1-M6 screws through the simple switching of screw guides, with custom options available for specialized requirements.
7.Integrated leak detection technology automatically refills or alerts operators of missing screws, ensuring uninterrupted operation and reducing errors.
8.A comprehensive file storage system holds hundreds of processing files, each capable of supporting up to 1000 screw entries, facilitating instant recall and quick setup for various production tasks.

Specification

Model	HS-SL5331
Production name	4Axis Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z)	500300300*100mm
X/Y1/Y2 axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M6
Machine dimension	746585800mm
Machine weight	65kg

Main parts brand

1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell

About Product

High Precision Screw Fastening Machine for M1-M6 Screws with Single Feeder System 0

About Detail

High Precision Screw Fastening Machine for M1-M6 Screws with Single Feeder System 1

About Packaging

About Transport

High Precision Screw Fastening Machine for M1-M6 Screws with Single Feeder System 5
