3 Axis Desktop Screw Tightening Robot Stainless Steel With Desktop And Visible Operation

Name

3 Axis Desktop Screw Tightening Robot Stainless Steel With Desktop And Visible Operation

Brand Name:	HSTECH
Model Number:	HS-SL551S
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE

Product Name:

Desktop Screw Tightening Robot

Feeding:

Pick-up Screw

Axis:

3 Axis

Screws:

M1-M6

Moving Range:

500*500*100mm

Material:

Main Aluminum

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Highlight:

Desktop Screw Tightening Robot

,

3 Axis Screw Tightening Robot

,

Visible Operation Screw Tightening Robot

Product Description

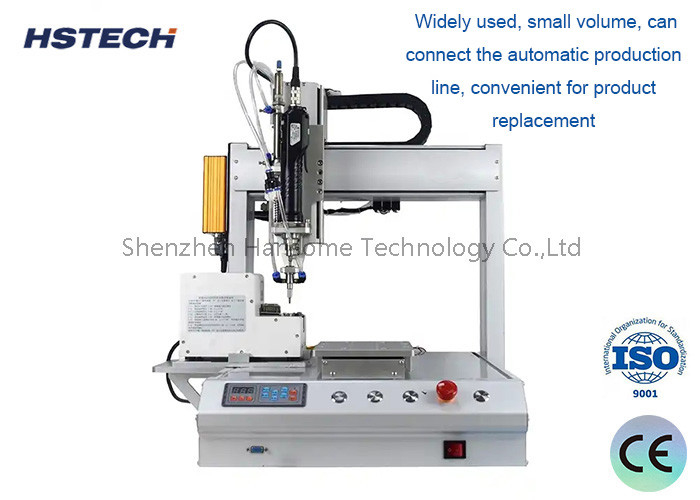

3 Axis Desktop Screw Tightening Robot Stainless Steel With Desktop And Visible Operation

Introduction:

The screw machine is composed of a feeding system and a lock-locking system, where in the feeding part, also called a screw-arrangement machine or a screw feeder, is a relatively simple type of screw arranged in a row for the purpose of improving work efficiency. It's a automation equipment, widely used in the electronics industry. It compatible for screws from M1 to M6.

Main parts brand:

1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell

Features:

1, Suction type feeding, faster with more efficiency.
2, Desktop and visible operation, can connect the automatic production line.
3, Moving range has two options, 500*500*100mm or 600*600*100mm.
4, Support multiple screw bins in suction mode.
5, Support extended applications, such as locking screw dispensing, welding, testing, handling, assembly, etc.
6, Available for multiple axis and double platform options.
7, With regional array replication, platform replication, batch editing, single-step operation and other functions.
8, After the operation parameters are edited, the action parameters are downloaded to the controller through the serial port, and the operation can be performed offline. Action parameters can also be saved In the hand-held box, easy to call.

9,The machine can store hundreds of processing files, each file can support 1000 screw bits, you can call it out when you use it.

Key Features

Precision Control:
Equipped with advanced torque control to ensure screws are tightened to the specified torque levels, preventing over-tightening or under-tightening.
Automated Operation:
Reduces the need for manual labor, allowing for consistent and repetitive screw tightening without fatigue.
Compact Design:
Designed to fit on a desktop or workbench, making it ideal for small-scale production or prototyping environments.
User-Friendly Interface:
Often includes a touchscreen or simple controls for easy setup and operation, allowing users to program tightening parameters.
Flexible Configuration:
Can be adapted for different screw sizes and types, making it versatile for various assembly tasks.
Integration Capabilities:
Can be integrated into existing production lines or used as a standalone unit, often compatible with other automation technologies.

Applications

Electronics Assembly:
Ideal for tightening screws in electronic devices, such as smartphones, computers, and other consumer electronics.
Automotive Industry:
Used for assembling parts in vehicles, ensuring that screws are tightened to the required specifications.
Medical Devices:
Suitable for the assembly of medical equipment, where precision and reliability are critical.
Small Parts Manufacturing:
Useful in industries that require assembly of small components, such as toys, appliances, and machinery.

Benefits

Increased Efficiency:
Automating the screw tightening process speeds up production times and reduces the likelihood of errors.
Improved Quality Control:
Consistent torque application enhances product quality and reduces the risk of failure due to improperly tightened screws.
Labor Savings:
Reduces the need for manual labor, allowing staff to focus on more complex tasks that require human intervention.
Flexibility:
Can be easily reprogrammed or adjusted to accommodate different assembly requirements or product designs.

Specification:

Model	HS-SL551S	HS-SL661S
Production name	Automatic Screw Locking Machine
Moving range(X/Y/Z)	500500100mm	600600100mm
X/Y axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M5
Machine dimension	746785800mm	845885800mm
Machine weight	50kg	55kg
