| Brand Name: | HSTECH |
| Model Number: | HS-SL5331 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |

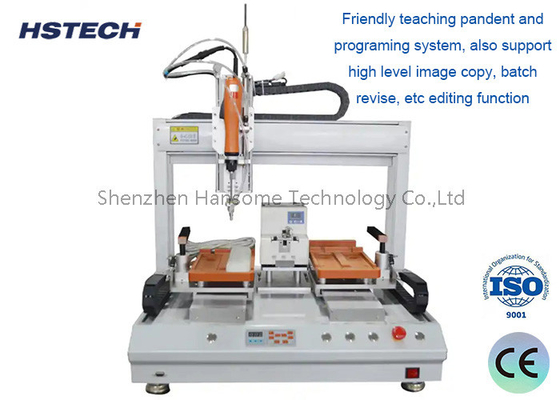

The screw fastening machine, a sophisticated automation tool, integrates a 4-axis motion system & dual-station mode with a single feeder for seamless production. Core features: precision feeding & efficient locking systems. Its streamlined screw arrangement optimizes efficiency & minimizes manual input. Widely adopted in electronics manufacturing, it accommodates M1-M6 screws & offers custom solutions for unique screws, enhancing productivity & flexibility in automated electronics production.
1.Suction feeding tech with a standard single feeder, upgradeable to double for enhanced efficiency.

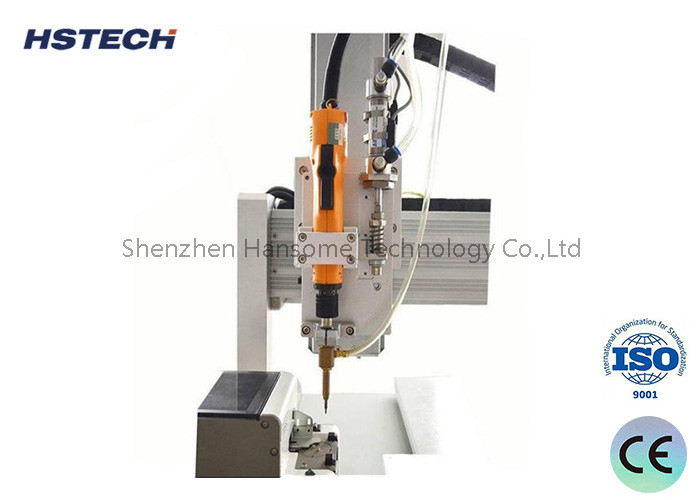

2.High-quality electric screwdriver on Z-axis for precise, rapid locking.
3.4-axis platform with 500x300x300*100mm range, adaptable to diverse locking tasks.
4.Dual-station design boosts productivity by alternating product loading, reducing labor costs.
5.Precise torque control, adjustable for quality-assured locking.
6.Compatible with M1-M6 screws, customizable for special sizes with screw guide replacement.
7.Leakage detection, intelligent monitoring of screw supply, auto-replenish or alert for continuous production.
8.Mass storage system saves hundreds of files, each recording 1000 screw positions, enhancing flexibility.
| Model | HS-SL5331 | |
| Production name | 4Axis Automatic Screw Locking Machine | |
| Moving range(X/Y1/Y2/Z) | 500*300*300*100mm | |
| X/Y1/Y2 axis moving speed | Closed loop motor :1-800mm/s | |
| Z axis moving speed | Closed loop motor: 1-300mm/s | |
| X/Y1/Y2 axis max load | Closed loop motor: 5KG | |
| Z axis max load | Closed loop motor: 3KG | |
| Power supply | AC110V/220V, 50/60Hz | |
| Repeat accuracy | ±0.02mm | |
| Document support | CAD CorelDraw | |
| Suitable screws | M1-M6 | |
| Machine dimension | 746*585*800mm | |
| Machine weight | 65kg | |
Main parts brand
1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell
