| Brand Name: | HSTECH |
| Model Number: | HS-SL5331 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |
Versatile Feeding Mechanism: Equipped with a suction-based single screw feeder that can be customized to a double feeder configuration for enhanced versatility and throughput.

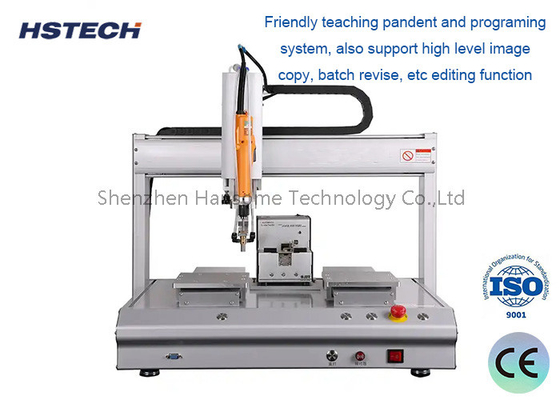

Precision Z-Axis Movement: Utilizes a high-quality electric screwdriver for precise and smooth vertical (Z-axis) movements, ensuring accurate screw placement.
4-Axis Operation Capability: Offers a comprehensive 4-axis operation range of 500300300*100mm, catering to a wide array of assembly needs.

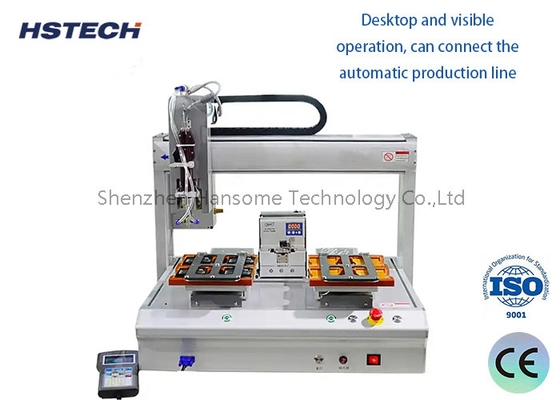

Dual Workstations for Efficiency: Features a dual working station design, allowing operators to load products sequentially, significantly boosting production efficiency and minimizing labor costs.
Accurate Torque Control: Ensures precise torque adjustments, facilitating easy fine-tuning to guarantee top-notch production quality and consistency.
Flexible Screw Size Adaptability: Readily adapts to screws ranging from M1 to M6 simply by swapping out the screw guide. Customization options are also available for specific requirements.
Intelligent Leak Detection: Incorporates a leak detection function that automatically retries screw placement if not properly seated or triggers an alarm for operator attention.
Advanced Memory Capability: Capable of storing hundreds of processing files, with each file supporting up to 1000 screw configurations. This feature enables quick and easy recall of preset screw patterns during operation.
| Model | HS-SL5331 | |
| Production name | 4Axis Automatic Screw Locking Machine | |
| Moving range(X/Y1/Y2/Z) | 500*300*300*100mm | |
| X/Y1/Y2 axis moving speed | Closed loop motor :1-800mm/s | |
| Z axis moving speed | Closed loop motor: 1-300mm/s | |
| X/Y1/Y2 axis max load | Closed loop motor: 5KG | |
| Z axis max load | Closed loop motor: 3KG | |
| Power supply | AC110V/220V, 50/60Hz | |
| Repeat accuracy | ±0.02mm | |
| Document support | CAD CorelDraw | |
| Suitable screws | M1-M6 | |
| Machine dimension | 746*585*800mm | |
| Machine weight | 65kg | |
Main parts brand
1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell
