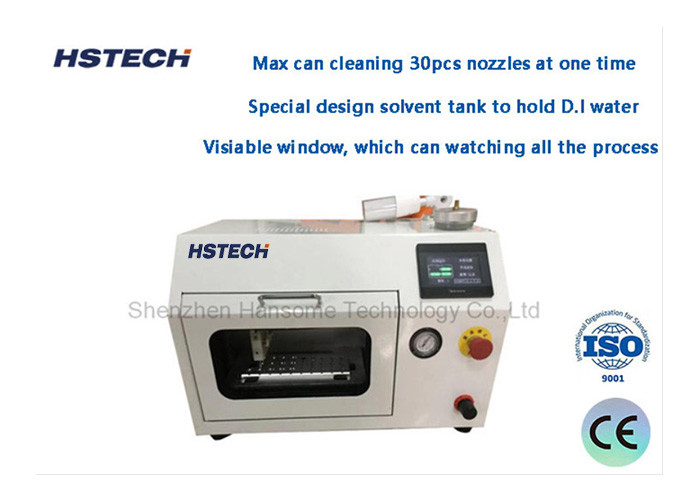

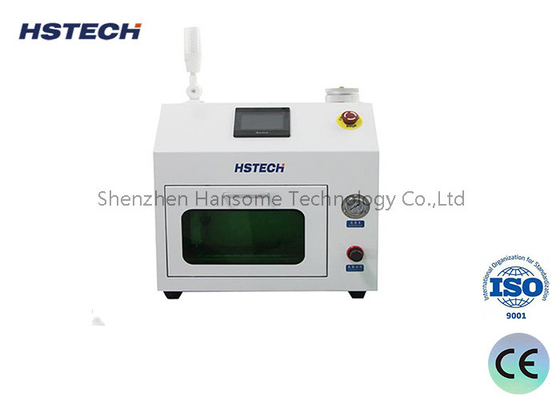

Multi-Function Stainless Steel Chip Mounter Nozzle Cleaner SMT Cleaning Equipment

 Multi-Function Stainless Steel Chip Mounter Nozzle Cleaner SMT Cleaning Equipment

Chip Mounter Nozzle Cleaner is a device or tool used to clean the nozzle of the chip mounter. In the electronics manufacturing process, the placement machine is used to accurately place electronic components onto the PCB, and the nozzle is a key component to remove the components from the feeder and place them accurately. Due to frequent use, the nozzle may be subject to various contaminations and requires regular cleaning to ensure the normal operation of the placement machine and high-quality component assembly.

Nozzle Cleaning
Nozzle Cleaner can effectively remove impurities such as solder paste and dust attached to the surface of the nozzle.
Ensure that the nozzle remains clean and improve the suction and positioning accuracy of components during the placement process.

Automation
Nozzle Cleaner is usually integrated into the SMT production line and works with the SMT machine.
It can automatically detect the nozzle condition and perform the cleaning procedure without manual intervention.

Diversity
Nozzle Cleaner supports various specifications of nozzles for cleaning and is suitable for different models of SMT machines.
It can be flexibly customized and matched according to product requirements.

Efficient Cleaning
Nozzle Cleaner uses high-pressure airflow, brushes and other cleaning methods to quickly and effectively remove dirt from the nozzle.
Greatly shortens the time for nozzle cleaning and improves production efficiency.

Extended service life
Regular use of Nozzle Cleaner can effectively extend the service life of the SMT machine nozzle.
Avoid deterioration in placement quality and production interruptions caused by nozzle wear

 Features

1, This nozzle cleaner work with pure compressor air as power, using D.I water as solvent, cleanness and not harmful.

2, The whole process including cleaning and drying, ensure the nozzles can be reuse quickly.

3, Elegant white color for the machine surface, control panel at the right side, good appearance.

4, Light display for the machine status.

5, Equip with a D.I water storing tank, with a cover at the top side, also with water level scale display.

6, Transprent cover window, can fully watching the cleaning process.

7, Safety protect, alarm function when cleaning and drying is finished. Also with emergency stop button control and electricity overload protection.

8, Touch screen panel control, easy to learn and understand.

9, One button operation, after set the cleaning time and drying time, press the start button to start, and wait till it finished.

10, Low working noise.

Specification

SMT Nozzle Cleaner Equipment principles and uses

By breaking up the water, extremely fine water mist is produced, which is sprayed onto the suction nozzle with powerful kinetic energy at supersonic speed, forming a continuous energy field above the suction nozzle to be cleaned, crushing dirt on the surface and inside. Independent cleaning, no damage to the suction nozzle. Using this device for daily nozzle maintenance and cleaning work can achieve a thorough cleaning effect in a safe state. It reduces the scrapping cost of nozzles caused by traditional cleaning methods, extends the life of nozzles, and plays a vital role in the maintenance of the placement machine to ensure that the placement machine operates in a better condition.
