| Brand Name: | FUJI |
| Model Number: | H04 |
| MOQ: | 1 pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |

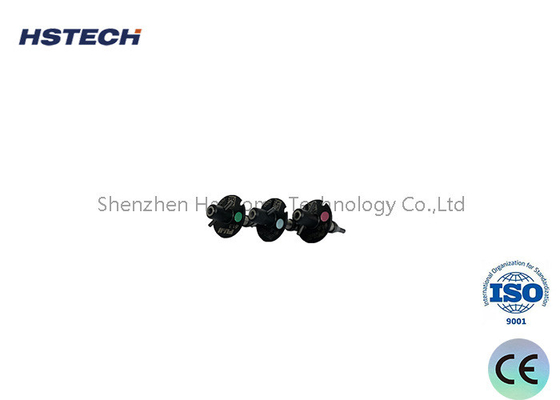

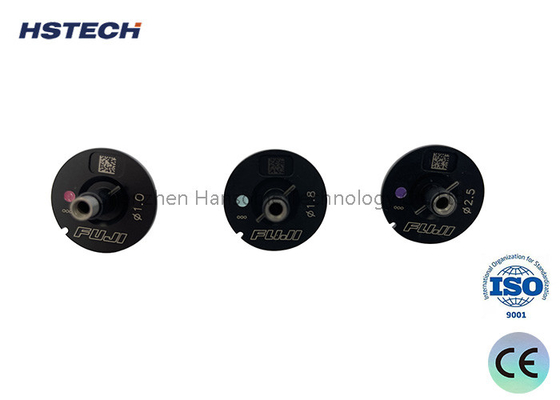

FUJI Pick And Place Machine SMT Nozzle H04 1.0 1.8 2.5 With High Precision
FUJI Nozzle:
SMT (Surface Mount Technology) nozzle is an important tool used in automated placement equipment for electronic components, used to pick up and place small electronic components. There are many types of SMT nozzles according to different needs, common ones include:
| Round nozzle | The round nozzle is the most common type, suitable for picking up and placing round electronic components, such as chip resistors, capacitors, etc. |
| Rectangular nozzle | The rectangular nozzle is suitable for picking up and placing rectangular electronic components, such as IC chips, diodes, etc. |
| Needle nozzle | Needle nozzle is suitable for picking up and placing elongated electronic components, such as inductors, crystal oscillators, etc. |
| V-shaped nozzle | V-shaped nozzle is suitable for picking up and placing special-shaped electronic components, such as LED lamp beads, optocouplers, etc |
In addition, there are some special types of nozzles, such as rotating nozzles, elbow nozzles, etc., which can be selected and used according to specific placement requirements. It should be noted that different nozzles are suitable for electronic components of different sizes and shapes. Choosing the appropriate nozzle type is very important for the efficiency and quality of placement work.
| Tungsten steel nozzle | Tungsten steel nozzle is strong and durable, but it is easy to turn white. If it turns white, use an oil-based pen to paint it, and you can continue to use it. |
| Ceramic nozzles | Ceramic nozzles never turn white, but are brittle and easy to break. Careful use can avoid or reduce breakage. |
| Diamond steel nozzle | It is strong, easy to use, and will never turn white, but it is very expensive and not cost-effective. |
| Glue nozzle | When the surface of the material is uneven or the material is sticky, it is suitable to use the glue nozzle. However, the life of the glue nozzle is not long. It is recommended to buy more glue nozzles for spare when ordering the glue nozzle. When the nozzle is worn, you can just replace it with the rubber nozzle yourself |
Application
Surface Mounting Process:
FUJI nozzles are used in surface mounting equipment, such as SMT machines, dispensing machines, etc., to absorb and accurately position SMT components of various sizes and shapes.
Different types of FUJI nozzles can adapt to the absorption requirements from micro 0201 size to large power components.
Component absorption and placement:
FUJI nozzles have high-precision vacuum adsorption function, which can accurately absorb target components from component tapes or trays.
And quickly and accurately place them at the designated position on the PCB board. This is the core step of the SMT process.
High-speed and high-precision operation:
FUJI nozzles cooperate with the high-speed motion system of the SMT machine to achieve high-speed placement of tens of thousands of components per hour.
At the same time, sub-millimeter positioning accuracy is maintained to ensure the quality of PCBA.
Strong adaptability:
FUJI nozzles are rich in variety and can be selected according to the size, material, shape and other characteristics of different components.
It can meet the mounting needs of various components from 0201 to QFP, BGA, etc.
High durability:
FUJI nozzles are made of high-quality materials and have good wear resistance and service life.
Reliable performance helps improve the stability and production efficiency of PCBA production lines.
All item of nozzle for FUJI Pick and Place Machine
We sell SMT Nozzles of all brand ,such as YAMAHA, Panasonic, FUJI,JUKI,SAMSUNG ,etc.
