| Brand Name: | HSTECH |
| Model Number: | HS-SL5331 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

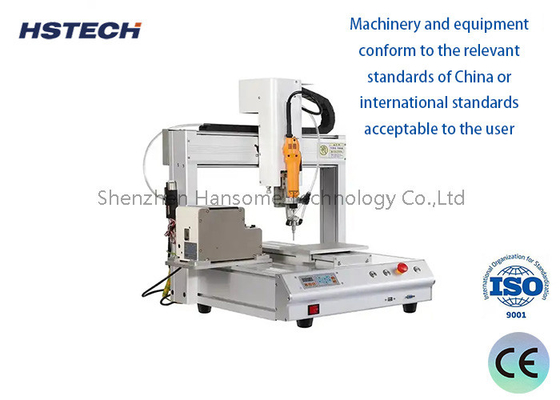

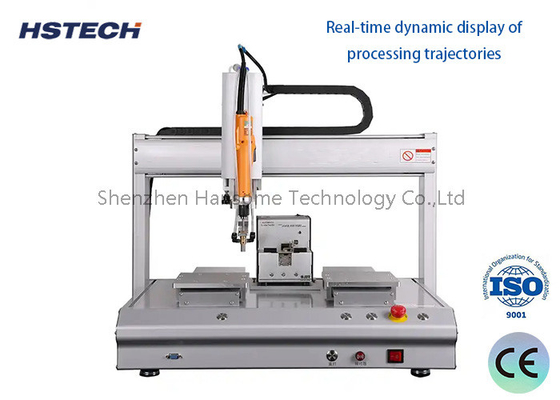

Double Working Station Screw Fastening Machine for Automated Locking of Screws and Electronic Assembly
Screw Fastening Machine:
Screw Locking Machine is an automated equipment used in electronic manufacturing and assembly processes, mainly used to automatically lock screws and nuts.
Functions and applications:
Used for screw tightening during the assembly process of parts or products on automated production lines.
It can quickly and accurately complete the tightening or loosening of screws to improve production efficiency.
It is widely used in assembly production in electronics, home appliances, automobile manufacturing and other industries.
Main structure and features:
Including drive motor, transmission mechanism, screw supply device, control system and other components.
The drive motor provides tightening torque, and the transmission mechanism transmits power to the screwdriver head.
The screw supply device automatically provides screws, and the control system realizes fully automated operation.
Precisely control torque and angle to ensure the quality of screw tightening.
Can be integrated into automated production lines to achieve unattended operation.
Main parameters and performance:
Applicable screw specifications: usually M2~M8 specifications, which can be selected according to needs.
Maximum torque: generally 5-100N·m, which can meet different strength requirements.
Repeat positioning accuracy: usually ±0.1°, to ensure screw tightening accuracy.
Working frequency: up to 120 times/minute or more, greatly improving production efficiency.
Human-computer interaction: equipped with operation panel or integrated PLC control.
Selection and configuration:
Select according to production line equipment, process requirements and product characteristics.
Optional drive mode, torque range, supply mode, etc.
Focus on reliability, maintainability, safety and other factors for comprehensive evaluation.
| Model | HS-SL5331 | |
| Production name | 4Axis Automatic Screw Locking Machine | |
| Moving range(X/Y1/Y2/Z) | 500*300*300*100mm | |
| X/Y1/Y2 axis moving speed | Closed loop motor :1-800mm/s | |
| Z axis moving speed | Closed loop motor: 1-300mm/s | |
| X/Y1/Y2 axis max load | Closed loop motor: 5KG | |
| Z axis max load | Closed loop motor: 3KG | |
| Power supply | AC110V/220V, 50/60Hz | |
| Repeat accuracy | ±0.02mm | |
| Document support | CAD CorelDraw | |
| Suitable screws | M1-M6 | |
| Machine dimension | 746*585*800mm | |
| Machine weight | 65kg | |
Main parts brand
1, Motor: Shinano
2, Guide: Hiwin
3, Photoelectric switch: Omron
4, Power supply: Meanwell
Features
