High Speed 502 2000 Series Nozzle Head JUKI SMT Nozzle For Components Suction

 High Speed 502 2000 Series Nozzle Head JUKI SMT Nozzle for Components Suction

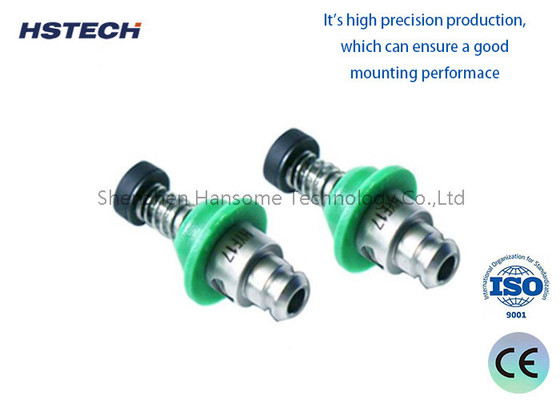

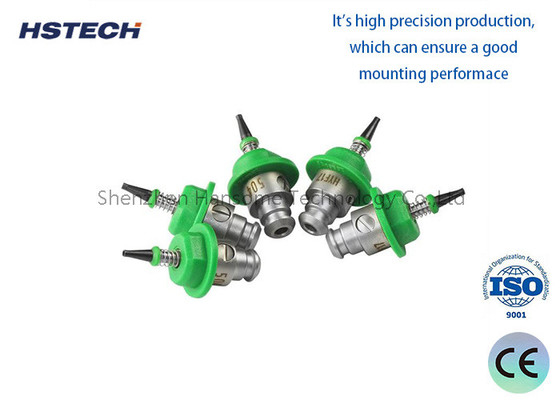

This 502 nozzle is the original new nozzles(also available for copy new) for replacing the old nozzles in the chip mounter, it's a high precision

nozzle which can suction the nozzles accurate, it made of high quality tungsten steel ensure the longlife span.

Overview:
JUKI is a well-known supplier of electronic manufacturing equipment, and its nozzle products are widely used in SMT patch processes.
The nozzle is one of the core components of the patch machine, which is used to pick up electronic components from the material tray and accurately attach them to the PCB board.

Features of JUKI nozzles:
Diversified product lines: JUKI provides nozzles of different sizes, shapes, and materials to adapt to various components.
High-precision positioning: The nozzle can accurately locate components to ensure the quality of placement.
Wear resistance: Made of high-quality materials, long service life.
Easy to maintain: can be quickly replaced and cleaned to reduce downtime.

Main application scenarios:
SMT patch production line: JUKI nozzles are widely used in various types of patch machine equipment.
Electronic product assembly: used for component placement of electronic products such as mobile phones, computers, and home appliances.
Medical device manufacturing: used for component installation of precision medical equipment.
Aerospace assembly: used for electronic module assembly in the aerospace field.

Specifications

Features

1, Using high quality materials, ceramic, tungsten steel and rubber, better mounting performance and long lifespan.

2, The nozzles are well packed by the customized blister, won't be broken during the shipment.

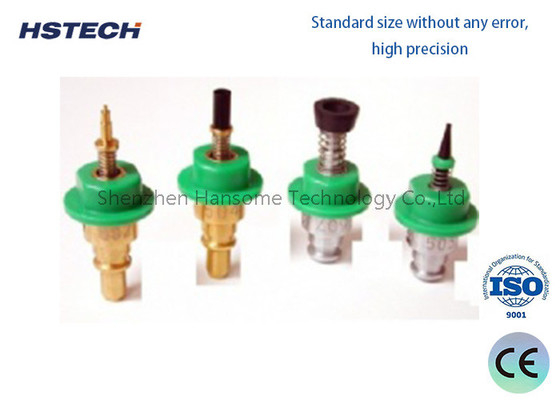

3, Standard size without any error, high precision.

4, Green and slive color designed, good appearance and environment protected.
5, Suitable for Component suction and placement, like cathode capacitance, diode, SOT, QFN, BGA and so on.

JUKI 2000 Series nozzle models

E36087290A0 JUKI NOZZLE 500 ASSY.1.0×0.5
E36007290A0 JUKI NOZZLE 501 ASSEMBLY 0.7×0.4
E36017290A0 JUKI NOZZLE 502 ASSEMBLY O 0.7/O 0.4
E36027290A0 JUKI NOZZLE 503 ASSEMBLY O 1.0/O 0.6
E36037290A0 JUKI NOZZLE 504 ASSEMBLY O 1.6/O 1.0
E36047290A0 JUKI NOZZLE 505 ASSEMBLY O 3.5/O 1.7
E36057290A0 JUKI NOZZLE 506 ASSEMBLY O 5.0/O 3.2
E36067290A0 JUKI NOZZLE 507 ASSEMBLY O 8.5/O 5.0
E36077290A0 JUKI NOZZLE 508 ASSEMBLY O 9.5/O 8.0
