| Brand Name: | HSTECH |
| Model Number: | HS-505 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per week |
Flexibility And Portability 40W Handhold Screw Fastening Machine 40W With Blowing Feeding Type
Handhold Screw Fastening Machine:
A Handheld Screw Lock Machine is a portable tool used to tighten screws or bolts. It is commonly used in the assembly industry, especially in operations that require a large number of tightening screws, to increase production efficiency and accuracy.
Definition and function:
Handheld screw tightening machine is a lightweight electric fastening tool.
It can be used to quickly and accurately tighten or loosen various types of screws, bolts and other fasteners.
Working principle:
The machine is driven by a motor and applies torque to the fastener through a guide shaft and a spiral bite mechanism.
The operator holds the machine and directly tightens or loosens the target fastener.
The machine itself is equipped with a torque adjustment device, which can be adjusted according to fasteners of different materials and sizes.
Main features:
Lightweight and flexible: handheld design, easy to operate, suitable for small spaces.
Efficient and fast: automatic tightening, no manual operation required, greatly improving work efficiency.
Precise and controllable: with torque adjustment function, the tightening torque can be accurately controlled.
Safe and comfortable: reduce the burden on operators and reduce labor intensity.
Versatility: can be used for tightening fasteners of different types and sizes.
Application scenarios:
Electronic product assembly: used for assembly of fasteners such as PCB boards and housings.
Automobile manufacturing and maintenance: used for tightening screws of body, engine and other parts.
Furniture assembly and installation: suitable for the installation and tightening of various household appliances and furniture.
Aerospace manufacturing: used for the assembly of aerospace equipment parts.
Features
1. High supply efficiency:Material speed up to 60 per minute, suitable for mass production,
save labor, save cost.
2. Good stability: screw one to send one, eliminate stuck material,Even if bad lead to material jam,
non - professional personnel can quickly solve the problem.
3. Only one hand operation is needed, and the screw lock and payment can be completed with a
gentle press, saving the time of taking and putting screws;
4. Easy to operate -- without professional training, novice can be skilled in operation, long-term operation will not be tired;
5. Flexibility and portability -- air feeder can be placed in any position where screws are needed.
Both on and off stage.
6.Touch screen: Direct contact screen control Settings, convenient and fast.
Specfication
| Model | HS-505 |
| Screw capacity: | M3*10/3000PCS |
| Efficiency: | 50-80pcs/min |
| Screw feeding speed: | 0.5s/pcs (standard screw) |
| Feeding type: | Blowing |
| Feeding length: | 1- 4Meter |
| Power supply: | AC220V 50HZ |
| Power: | 40W |
| Working pressure: | 0.4Mpa-0.6Mpa |
| Weight: | App 11KG |
| Dimension: | 370*220*280mm |
| Noise | Lower 65 |

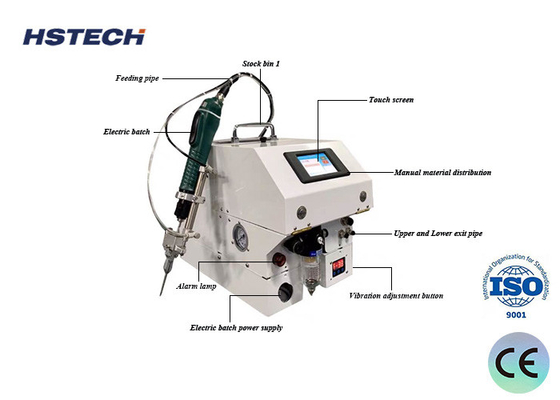

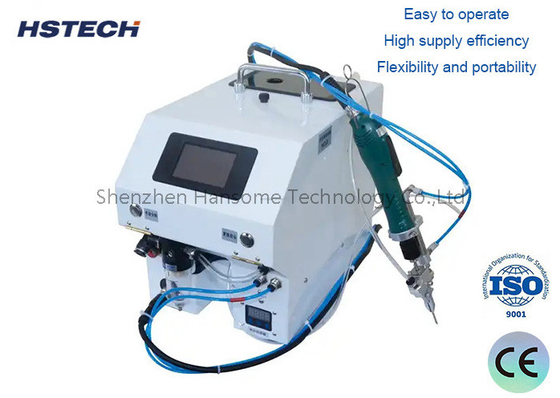

Handheld screw tightening machine details photos
| Handhold Screw Fastening Machine | |||
