SMT Nozzle High Quality SMT KXFX037UA00 CM402 CM602 NPM 1003 Nozzle For Panasonic Nozzle

Smt Nozzle High Quality SMT KXFX037UA00 CM402 CM602 NPM 1003 Nozzle For Panasonic Nozzle

Introduce

The SMT placement machine nozzle can pick up and place components of different shapes and sizes in different ways. When the vacuum pressure is generated, the negative pressure of the suction nozzle will suck the components out of the supply system. When the suction nozzle sucks the vital parts, the system will determine that the suction nozzle has successfully sucked the components only when the specified vacuum degree is reached. When components stand sideways or materials are thrown, causing the suction nozzle to fail to successfully pick up the components, the SMT placement machine will send out an alarm signal.

When our nozzle picks up the components and attaches them to the PCB, we usually use two methods to place them. One is to mount according to the height we entered in the system in advance. When the placement head of our SMT placement machine drops to the set height, the vacuum is released and the components are placed on the pads. Generally we do not use this method because it is inflexible. Another method is to achieve a soft landing of placement under the action of the pressure sensor due to the instantaneous reaction between the nozzle and the PCB board, so that our placement is easier and smoother. The suction nozzle is a piece of equipment that we often use in production and placement. It is often in contact with components and will be worn and damaged over time.

Therefore, the material and structure of the suction nozzle of SMT placement machines are receiving more and more attention. In the early days, alloy materials were used, and later they were changed to carbon fiber wear-resistant plastic materials. More advanced nozzles use ceramic materials and diamond to make the nozzles more.

We supply all kinds of SMT nozzle and dispensing nozzle for panasonic, include CM402/602,CM202,NPM,HDF,HDP,MCF,MSH3,MSF,BM,MSR,MMC,MSH,MV,MPAG3,AM100,DT401 machine and so on.

DT401 Nozzle

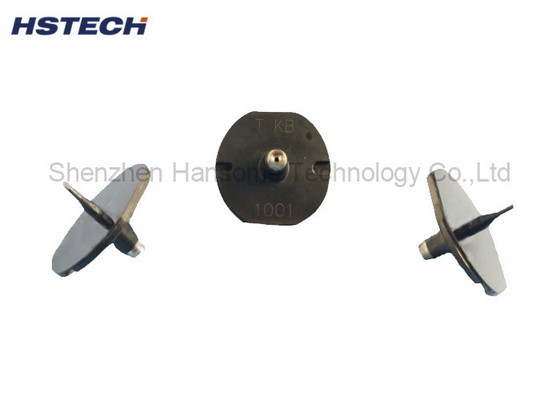

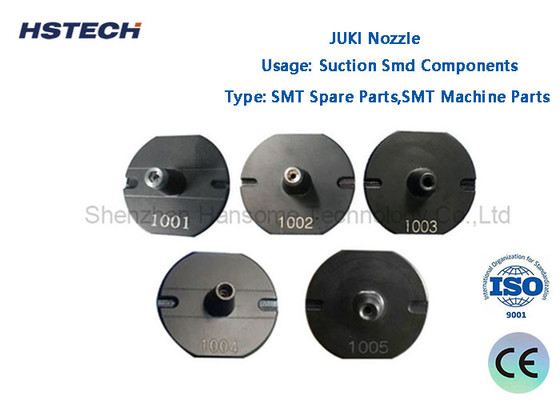

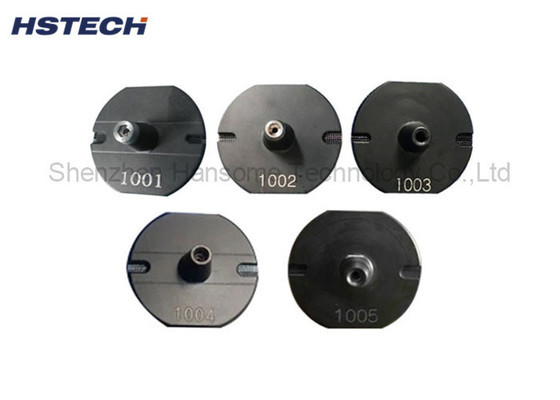

KXFX037SA00 NOZZLE 1001
KXFX037TA00 NOZZLE 1002
KXFX037UA00 NOZZLE 1003
KXFX037VA00 NOZZLE 1004
KXFX037WA00 NOZZLE 1005
KXFX037XA00 NOZZLE 1006

CM402 Nozzle
CM402 110: KXFX0383A00(KXFX04MSA00,KXFX03DGA00)
CM402 115A: KXFX037NA00
CM402 120: KXFX0384A00
CM402 130: KXFX0385A00
CM402 140: KXFX0386A00
CM402 161: N610004673AA
CM402 205: KXFX04N0A00
CM402 206A: KXFX05V2A00
CM402 225C: N610040782AA
CM402 226C: N610040783AA
CM402 230C: N610040784AA
CM402 235C: N610043814AA
CM402 240C: N610062681AA
CM402 450: KXFX0387A00(KXFX03DPA01)
CM402 460: KXFX03NGA00
CM402 185: N610070338AA
CM402 199: N610070079AB
CM402 205A: N610000995AA
CM402 115: KXFX04MTA00 (KXFW1BDAA00)

M602 Nozzle
N610017371AC NOZZLE 110S
N610017372AC NOZZLE 115AS
N610017373AC NOZZLE 120S
N610017375AC NOZZLE 130S
N610043702AA NOZZLE 140S
N610040786AA NOZZLE 225CS
N610040787AA NOZZLE 226CS
N610040788AA NOZZLE 230CS
N610043815AA NOZZLE 235CS
N610040853AA NOZZLE 240CS
N610017370AC NOZZLE 205S
N610030510AC NOZZLE 206AS
N610038265AB NOZZLE 203ZS
KXFX05V2A00 NOZZLE 206A
N610058431AA NOZZLE 161S
N610148258AA NOZZLE 256CS

NPM Nozzle
1001N: N610098969AA
1002N: N610098970AA
1003N: N610098971AA
1004N: N610098972AA
1005N: N610098973AA
161SN: N610126849AA
226CSN: N610119480AB
230CSN: N610119484AB
235CSN: N610119485AB
240CSN: N610119486AB
140N: N610099376AA
184N: N610126914AA
185N: N610119411AA
199N: N610119407AA
230CN: N610119493AB
235CN: N610119496AA
240CN: N610119499AB
5490N: N610128655AA
5435N: N610128601AA
