| Brand Name: | JUKI |

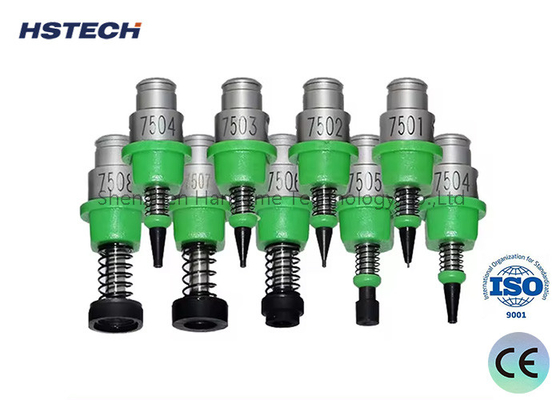

| Model Number: | 7501 7502 7503 7504 |
| MOQ: | 1 PC |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs per month |
①Simple structure in linear type ,easy in installation and maintation.
② Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
③High pressure double crank to control the die opening and closing.
④ Running in a high automatization and intellectualization,no pollution
⑤ Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

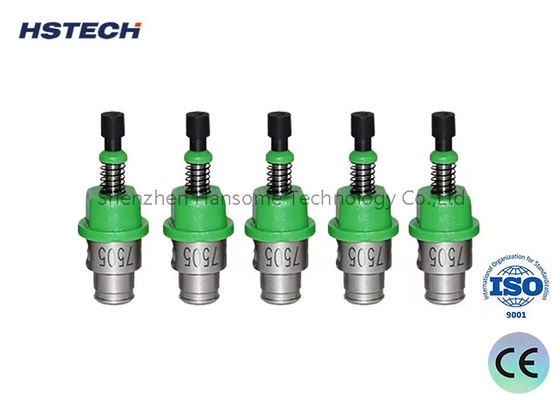

SMT (Surface Mount Technology) nozzle is an important tool used in automated placement equipment for electronic components, used to pick up and place small electronic components. There are many types of SMT nozzles according to different needs, common ones include:
| Round nozzle | The round nozzle is the most common type, suitable for picking up and placing round electronic components, such as chip resistors, capacitors, etc. |
| Rectangular nozzle | The rectangular nozzle is suitable for picking up and placing rectangular electronic components, such as IC chips, diodes, etc. |
| Needle nozzle | Needle nozzle is suitable for picking up and placing elongated electronic components, such as inductors, crystal oscillators, etc. |
| V-shaped nozzle | V-shaped nozzle is suitable for picking up and placing special-shaped electronic components, such as LED lamp beads, optocouplers, etc |
In addition, there are some special types of nozzles, such as rotating nozzles, elbow nozzles, etc., which can be selected and used according to specific placement requirements. It should be noted that different nozzles are suitable for electronic components of different sizes and shapes. Choosing the appropriate nozzle type is very important for the efficiency and quality of placement work.
Applications
PCB Assembly:
Used in JUKI pick-and-place machines for the assembly of various electronic components onto PCBs in high-volume production environments.
Prototyping:
Useful in prototype assembly where flexibility in handling different component types is required.
Repair and Rework:
Nozzles can be employed in rework stations to assist in the precise placement of components during repair processes
