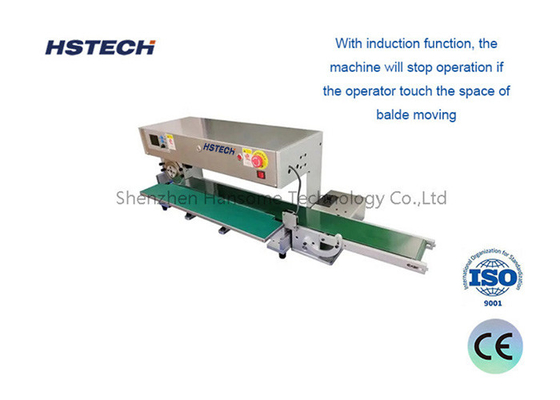

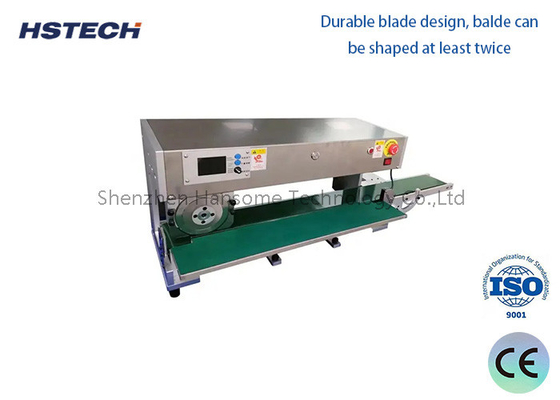

High Performance Customized PCB V Cut Machine PCB Depanelling Machine PCB Separator

 Blade Miving PCB Separator:

It is an automated equipment used to quickly split a large circuit board into multiple small-sized independent circuit boards.

Basic structure:
The blade moving mechanism is used to complete the board splitting operation.

Equipped with a special workbench to fix the circuit board to be split.

The overall structure is compact and occupies a small space.

 Main features:

1. High board splitting accuracy: The blade movement accuracy is high, and the circuit board can be accurately split along the preset path.
2. High board splitting efficiency: The automatic board splitting process is fast, which greatly improves production efficiency.
3. Simple operation: The equipment has a high degree of automation and does not require complex operations.
4. Strong adaptability: It can handle circuit boards of various sizes and structures.
5. High reliability: The mechanical structure is stable and the operation reliability is strong.

Working principle:
Place the circuit board to be split on the workbench and fix it.

The equipment control system controls the blade to move accurately according to the preset board splitting path.

The blade quickly cuts the circuit board along the predetermined path to complete the board splitting operation.

The small-sized circuit board after the board splitting is automatically discharged from the workbench.

Application scenario:
It is widely used in the board splitting manufacturing of PCB boards of various electronic products.
Suitable for batch splitting of small circuit boards for mobile phones, computers, home appliances and other products.
It can also be used for splitting other circuit boards such as LED light boards and FPC flexible circuit boards.

Specification:
